Miami GP: F1 technical images from the pitlane explained
Join us as we delve into the Formula 1 technical features on display in the pitlane as teams prepare for the Miami Grand Prix, courtesy of Giorgio Piola and Sutton Images.
Giorgio Piola's F1 technical analysis
Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content
Red Bull Racing RB19 technical detail
Photo by: Uncredited
As Red Bull Racing prepares the RB19 for action in Miami we are treated to a glimpse at what goes on under the brake drum, with the caliper left exposed we can see the tube fins used to help keep things cool and that have allowed the team to take out some weight. Also note the brake disc fairing, which has been enlarged in comparison with the design last season.
Red Bull Racing RB19 technical detail
Photo by: Uncredited
The brake assembly with the caliper fairing in place shows how the team is looking to deal with the heat being dissipated by the various elements.
Scuderia Ferrari front wing detail
A close up of the Ferrari SF-23’s front wing slot gap separators which clearly serve an aerodynamic purpose, as they push the airflow laterally across the front tyre.
Alpine A523 bodywork detail
Photo by: Alexander Trienitz / Motorsport Images
The view from inside the Alpine A523’s cockpit, including the steering wheel with its various buttons, rotaries and switches.
Alpine A523 bodywork detail
Photo by: Alexander Trienitz / Motorsport Images
Looking further down the side of the A523 we can also see the trench that’s been excavated within the sidepods upper surface, as the team has opted for more cooling in Miami with the interchangeable engine cover panel tasked with providing it.
Ferrari SF-23 technical detail
Photo by: Uncredited
Ferrari has also employed a brake disc fairing this season, which has required a change in tack when it comes to the position of the caliper. As part of this reorganisation the fairing that encloses the caliper and the pipework that delivers cool air from the inlet have also been redesigned.
Ferrari SF-23 technical detail
Photo by: Uncredited
For comparison here’s the assembly without the caliper fairing’s blanking cover in place, allowing us to see the drill pattern in the disc and how closely sandwiched it is within the track.
Alfa Romeo C43 technical detail
Photo by: Uncredited
Alfa Romeo continued with a similar arrangement to the one used during 2021, with the crescent-shaped disc fairing wrapped around the forward section of the assembly, while the caliper sits toward the back.
Red Bull Racing RB19 side detail
Photo by: Giorgio Piola
A close up of the new sidepod inlet and floor edge details introduced by Red Bull in Azerbaijan.
Red Bull Racing RB19 diffuser
Photo by: Giorgio Piola
At the rear of the car the team have mounted a lower downforce rear wing configuration, along with a solo lower beam wing element, as has been their choice when looking to reduce downforce and drag.
Mercedes W14 diffuser
Photo by: Giorgio Piola
Rear end detail on the Mercedes W14, including the three tier lower brake duct deflector that was introduced in Azerbaijan.
Ferrari SF-23 floor
Photo by: Giorgio Piola
The rear section of floor on the Ferrari SF-23, with the double mouse hole in the diffuser’s sidewall a notable feature of this year’s challenger.
Alpine A523 diffuser
Photo by: Giorgio Piola
Alpine looks set to use the bi-plane beam wing arrangement introduced in Azerbaijan last season and have used periodically since. Also note the upwash swage line in the lower section of the endplate that the team introduced at the start of the season.
Red Bull Racing RB19 technical detail
Photo by: Uncredited
A look at the rear wing mounting pylon on the RB19, along with a peek at some of the rear inboard suspension elements.
Red Bull Racing RB19 technical detail
Photo by: Uncredited
Front view of the RB19’s rear wing arrangement, which features a centreline V-groove and Gurney flap on the trailing edge of the upper flap.
Red Bull Racing RB19 technical detail
Photo by: Uncredited
The rear brake assembly on the Red Bull RB19, with a disc fairing solution that’s similar to the one seen at the front of last year’s challenger.
Ferrari SF-23 technical detail
Photo by: Uncredited
Ferrari has the SF-23 set up with the lower downforce rear wing, with the mono pillar and sawn off tip section, in Miami.
McLaren MCL60 technical detail
Photo by: Uncredited
McLaren has a more tortured routing for its pipework within the brake duct assembly, as the cool air is fed to the various elements, including the caliper and disc.
Aston Martin AMR23 technical detail
Photo by: Uncredited
Aston Martin’s front brake duct design includes a crossover tract, complete with a guide vane set within it to help control the flow of air across the face of the assembly.
Haas VF-23 technical detail
Photo by: Uncredited
A close up of the Haas VF-23’s inboard suspension elements, including the heave damper.
Aston Martin AMR23 technical detail
Photo by: Uncredited
A close up of the AMR23’s inboard suspension elements, including the heave damper, complete with Belleville spring washers.

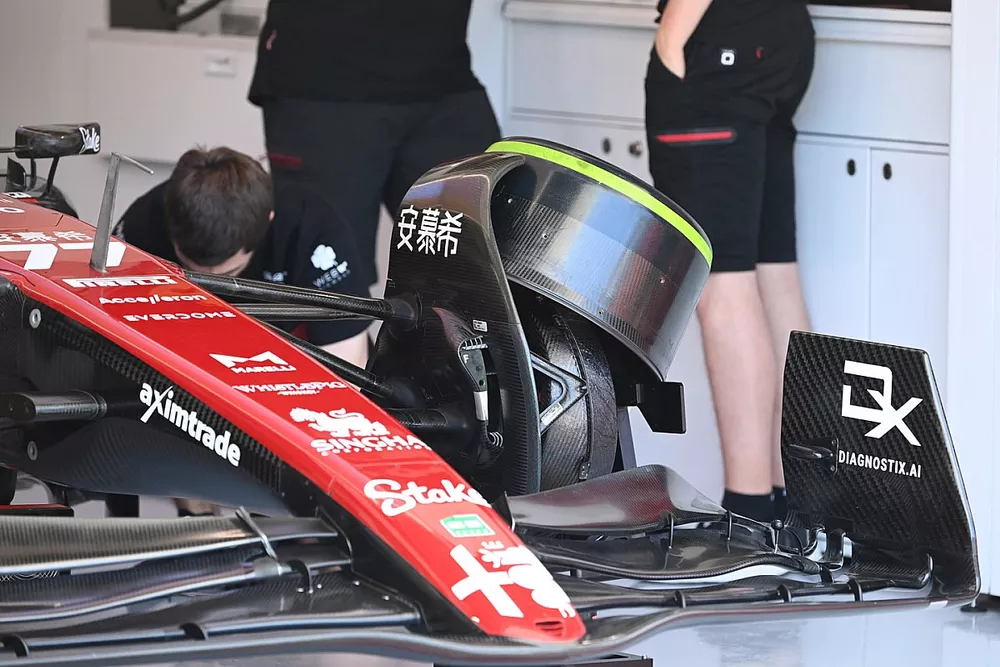

Alfa Romeo C43 technical detail
Photo by: Uncredited
A good overview of the Alfa Romeo C43’s front wing assembly, as we’re able to see the contouring used to help direct the passage of the airflow ahead of the front tyre.
Alpine A523 technical detail
Photo by: Uncredited
Alpine appears to be reverting to the spoon-shaped rear wing in Miami, having used an even lower downforce iteration in Baku.
