Ferrari introduces new front wing in France
Ferrari has brought a new front wing to the French Grand Prix at Paul Ricard, featuring detail changes to its current Formula 1 concept.
Throughout the season so far, Ferrari has been one of the teams to experiment with a more extreme front wing design, at which the outboard section slopes downward.
This breed of front wings means that the downforce output is concentrated at the inboard section, while the outboard portion is then used to turn airflow around the front tyre.
More F1 insights :
While there's no change in that philosophy, there seems to be a concerted effort by Ferrari to strengthen the outwash effect, as seen in Giorgio Piola's images from Thursday.
From the outboard section, the curvature in the wing has been changed where the mainplane transitions downwards at a later point.
There's also a new set of endplates, featuring a rectangular cutout at the top section to encourage more air to spill around the front face of the tyre.
This is complemented by a change to the footplate, which now features a small fin to further boost the channelling of airflow outwards.
Ferrari principal Mattia Binotto says that although the upgrades brought to France won't provide an immediate fix to the SF90's problems, they should instead inform the team's "next steps" in defining its upgrades.
"In France we will have a few small evolutions, elements that represent for us a useful step in defining the direction we will take in developing the car.
"What we will be bringing won't be the solution to our problems, but the technical feedback we get from these evolutions will be important for the next steps we take."
The older-spec front wing has also been brought to France, immediately suggesting that back-to-back running will take place to assess the merits of the new wing.

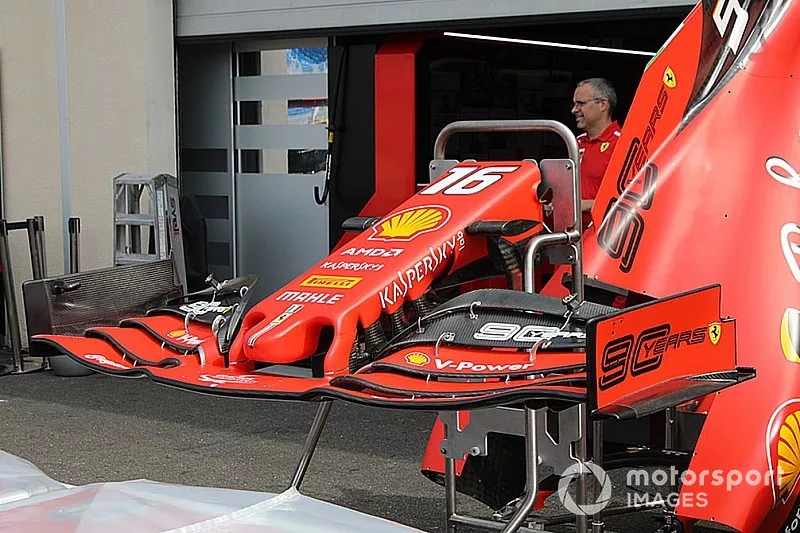

Ferrari SF90 front wing detail
Photo by: Giorgio Piola
