How F1 teams coped with Mexico's unique tech demands

shares
comments
How F1 teams coped with Mexico's unique tech demands
By:
Co-author: Matt Somerfield
Oct 31, 2018, 10:22 AM

The Autodromo Hermanos Rodriguez circuit is an outlier on the Formula 1 calendar. Held at altitude, it’s a massive challenge for the teams and the drivers as it requires a totally different approach.

If the circuit existed at sea level, teams would likely run a low-medium downforce configuration. But the rarefied air, which is less dense and starved of oxygen, means they all run close to their highest downforce packages.

This puts an emphasis on cooling too, with teams forced to run with their most open configuration.

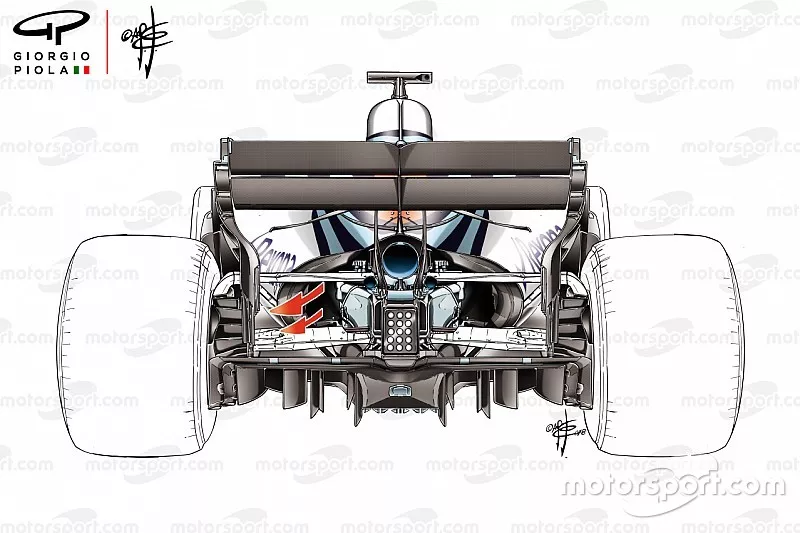

Williams FW41 cooling comparsion Hungarian GP and Mexican GP

Williams FW41 cooling comparsion Hungarian GP and Mexican GP

Photo by: Giorgio Piola

In Williams’ case (above), this meant an even larger cooling outlet at the rear of the car, as it looked to speed up the extraction of warm air and help the power unit stay within its tolerances.

Williams was not the only team to run a gigantic cooling outlet at the rear of the car though as, from an aerodynamic perspective, there was not as much of a drag penalty from doing so as there would be at other venues.

Mercedes F1AMG W09 cooling

Mercedes F1AMG W09 cooling

Photo by: Giorgio Piola

Mercedes met the challenge in a similar fashion as to how it has done at venues earlier in the campaign, utilizing a novel open-top chimney style cooling outlet on its engine cover.

This helps it keep the main rearward cooling outlet as compact as possible and limits any airflow disturbance that may reduce downforce.

Mercedes W09 cockpit cooling panel comparison

Mercedes W09 cockpit cooling panel comparison

Photo by: Giorgio Piola

Mercedes tried to run as little cooling as possible on the cockpit’s shoulder this year, with the aperture opened up as part of the halo’s installation often considered enough. However, James Allison openly admitted it was struggling on Friday and had to make some sacrifices.

“We were overheating the power unit in a number of areas today, and that meant we had to protect against this by turning it down as a precaution,” he said.

For qualifying and the race, the team utilised the larger, louvred panel. This allowed the internals to breathe more freely as part of a wider scheme used to improve the power unit’s output.

Ferrari SF71H brake discs

Ferrari SF71H brake discs

Photo by: Giorgio Piola

The rarefied air also poses a significant challenge when it comes to braking efficiency, with temperatures often climbing into the danger zone.

It was the perfect place then to test a new solution, with Brembo entrusting Ferrari with the task, as it focuses on a new disc design for all of their customers in 2019.

The new design features a seven-row chevron drill pattern across the disc, rather than the six, in order to dissipate the almost 1000° C that can be generated under braking.

It’s a breakthrough that was first made possible when the regulations were changed in 2017 to allow teams to run discs that are 32mm wide, rather than 28mm. This extra space was enough for Brembo to increase its cooling capacity quite significantly.

Making further gains from the drill pattern has been a challenge, with the manufacturer having to carefully consider the resistance of the disc, its structural integrity and the wear level.
