Revealed: McLaren’s clever trick to get around diffuser limits

Formula 1’s new aero rules aimed to cut downforce have been a big challenge for teams this winter as they have thrown everything at trying to recover the losses.

Revealed: McLaren’s clever trick to get around diffuser limits
Listen to this article

But while the focus for many outfits has been on the floor area, and some clever ideas have already appeared, McLaren appears to have stolen a march on rivals with a unique diffuser solution instead.

The package of rule changes for 2021 came in three parts – involving new requirements for the floor, the brake ducts and the diffuser.

For the diffuser, which is a powerful tool for harnessing airflow under the car to boost downforce, the FIA has mandated that the height of the dividing strakes between its channels are now 50mm shorter.

While the rule seems quite straightforward, there had been suspicions about McLaren having found a clever solution to the new rules when it was so secretive over this section of the car when it was first revealed.

Read Also:

It took particular care that renders from its launch and the images released from it ‘filming day’ at Silverstone didn’t show off any of the important parts at the rear of the car.

With teams forced to reveal their definitive 2021 concepts in Bahrain testing, it has emerged that McLaren has indeed done something unique with its diffuser.

It appears to have employed a pretty neat trick that allows it to have two strakes below the theoretical cut line which has been created to reduce their height in the new regulations.

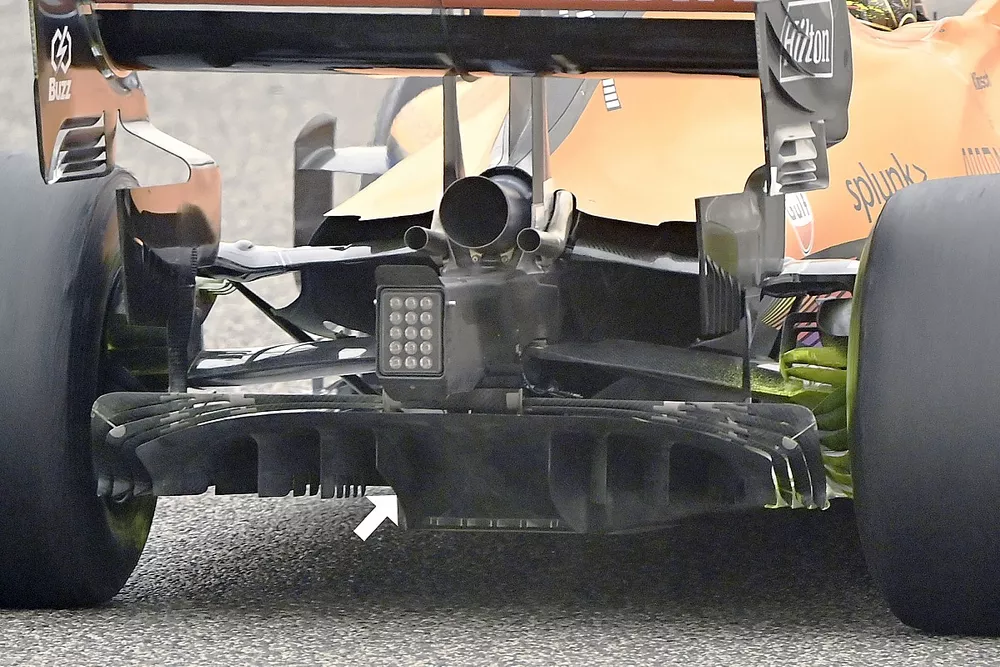

The ‘trick’ is that the aerodynamicists have extended the floor transition rearward to create these lower strakes than should be possible (white arrow).

These taller inboard strakes then gradually extrude upwards and outwards as the diffuser's ceiling expands outwards.

McLaren MCL35 diffuser detail

McLaren MCL35 diffuser detail

Photo by: Giorgio Piola

The expansion of the floor transition area is clear when we compare it to the design that the team used in F1 last season. (see above)

Red Bull Racing RB16B rear detail

Red Bull Racing RB16B rear detail

Photo by: Mark Sutton / Motorsport Images

It is also in contrast to solutions seen at other teams where the strake depth is uniform across the diffuser, as can be seen on the Red Bull.

The McLaren idea is one that will almost certainly be evaluated by other teams to see if there is much of a performance gain there.

But with just two days left of testing, and less than two weeks until the first race, it is unlikely rivals will be able to copy the concept just yet. So it may take some time for rivals to follow suit if it is deemed a good benefit.
