US GP: Latest F1 technical developments direct from pitlane

Join us as we delve into the latest technical developments from the United States Grand Prix at the Circuit of the Americas, courtesy of Giorgio Piola and Sutton Images.

US GP: Latest F1 technical developments direct from pitlane
Listen to this article

Click on the arrows on the images to scroll through them…

McLaren MCL35M bargeboard detail
McLaren MCL35M bargeboard detail
1/21
A top-down overview of the McLaren MCL35M’s bargeboard cluster shows how it has numerous slots in the surfaces in order they mirror one another and maintain legality. Also note the use of metal inserts to help retain the integrity of the assembly.

Photo by: Giorgio Piola

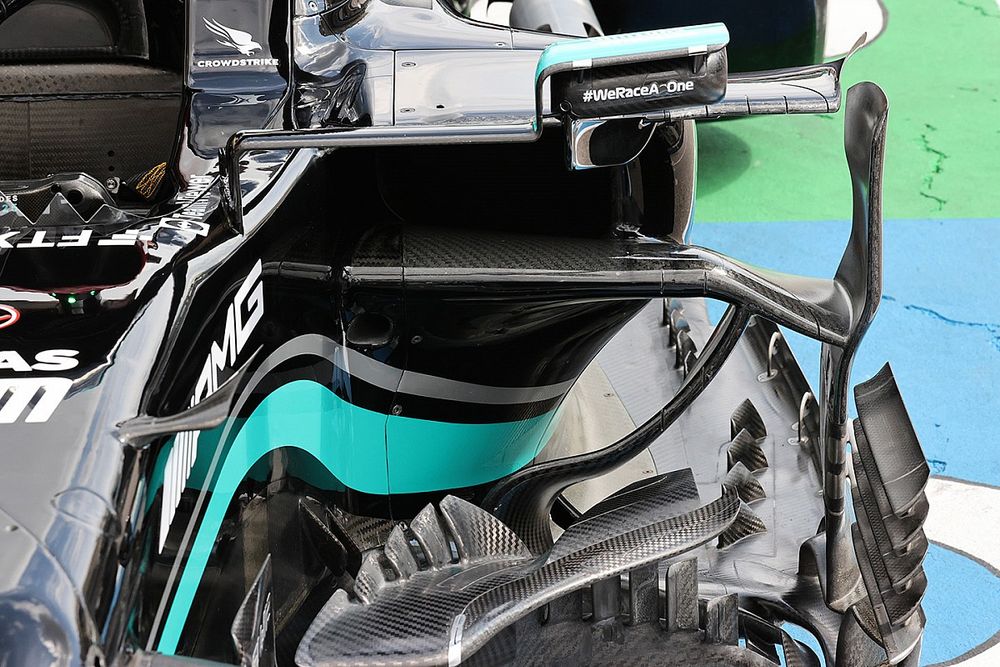

Mercedes W12 deflectors detail
Mercedes W12 deflectors detail
2/21
A great shot of the W12 looking rearward over the front suspension, which gives a good perspective of many of the surfaces that might otherwise appear to be flat or unimaginative but actually have a great deal of contouring.

Photo by: Giorgio Piola

Red Bull Racing RB16B bargeboard detail
Red Bull Racing RB16B bargeboard detail
3/21
Top-down overview of the Red Bull RB16B’s bargeboard cluster, with the slots within the boomerang wings clearly visible. The main vertical element is also clearly broken down into numerous segments too. Also note the varied length and width of the strakes poking out from the leading edge of the floor.

Photo by: Giorgio Piola

Mercedes W12 floor detail
Mercedes W12 floor detail
4/21
The floor area ahead of the rear tyre on the Mercedes W12 has remained largely unchanged this season, as it started out with some pretty mature solutions as part of the regulatory overhaul. Note the upturned edge (arrowed) to help encourage the airflow's direction too.

Photo by: Giorgio Piola

Ferrari SF21 bargeboard detail
Ferrari SF21 bargeboard detail
5/21
A close up of the Ferrari SF21’s bargeboard cluster and, more specifically, the slotted footplate and conveyor belt of outwardly angled winglets that sit astride.

Photo by: Giorgio Piola

Ferrari SF21 rear detail
Ferrari SF21 rear detail
6/21
High downforce rear wing combined with a double element looped T-Wing mounted on the Ferrari SF21 for scrutineering.

Photo by: Giorgio Piola

Alfa Romeo Racing C41 front wing detail
Alfa Romeo Racing C41 front wing detail
7/21
Close up of the Alfa Romeo C41 – note the extremely thin upper flap which has been cut back to trim downforce levels. The flap tip is almost non-existent now as a consequence of the changes.

Photo by: Giorgio Piola

Mercedes W12 rear detail
Mercedes W12 rear detail
8/21
Mercedes with a high downforce rear wing and a Y-shaped T-Wing configuration as the car awaits scrutineering.

Photo by: Giorgio Piola

Ferrari SF21 rear detail
Ferrari SF21 rear detail
9/21
The Ferrari SF21 from behind with a great view of the diffuser, rear cooling outlet and rear suspension.

Photo by: Giorgio Piola

Red Bull Racing RB16B rear detail
Red Bull Racing RB16B rear detail
10/21
Red Bull utilising a spoon-shaped rear wing, which carries the American branding for Acura/Honda and Exxon/Esso.

Photo by: Giorgio Piola

Daniel Ricciardo, McLaren MCL35M, leaves the garage
Daniel Ricciardo, McLaren MCL35M, leaves the garage
11/21
Side view of the McLaren MCL35M as it exits the garage gives us a good view of the sidepod deflector array and the aero details on the rear wing endplate.

Photo by: Steven Tee / Motorsport Images

Sergio Perez, Red Bull Racing RB16B
Sergio Perez, Red Bull Racing RB16B
12/21
During FP1, Red Bull outfitted Sergio Perez’s RB16B with a kiel probe array on either side of the car in order to collect data

Photo by: Uncredited

Lando Norris, McLaren MCL35M
Lando Norris, McLaren MCL35M
13/21
An overview of the McLaren MCL35M’s bargeboard cluster and sidepod deflector array.

Photo by: Uncredited

Kimi Raikkonen, Alfa Romeo Racing C41
Kimi Raikkonen, Alfa Romeo Racing C41
14/21
An overview of the Alfa Romeo C41’s bargeboard cluster and sidepod deflector array – note the slots in the leading edge of the boomerang winglet which match up with the slots in the bargeboard's footplate below.

Photo by: Uncredited

George Russell, Williams FW43B
George Russell, Williams FW43B
15/21
The Williams FW43B for comparative purposes – note the angled and overlapping feather-like edge on the upper section of the main vertical bargeboard element.

Photo by: Uncredited

Nikita Mazepin, Haas VF-21
Nikita Mazepin, Haas VF-21
16/21
The Haas VF-21 with its boomerang winglet mounted a little further back, comparatively and the feather-like edge applied to the forward part of the main vertical element.

Photo by: Uncredited

AlphaTauri AT02 rear sensor detail
AlphaTauri AT02 rear sensor detail
17/21
AlphaTauri briefly ran with this Kiel probe array mounted ahead of the rear wing during FP1 as it collected data on the airflow's behaviour around the assembly.

Photo by: Giorgio Piola

Fernando Alonso, Alpine A521, in the pit lane
Fernando Alonso, Alpine A521, in the pit lane
18/21
A look at the Alpine A521’s rear end as Alonso returns to the garage after a brush with one of the barriers. Note the gentle drooping of the diffuser in the outboard section, rather than it taking up the maximum section allowed.

Photo by: Mark Sutton / Motorsport Images

Daniel Ricciardo, McLaren MCL35M
Daniel Ricciardo, McLaren MCL35M
19/21
Close up of the louvered panel on the side of the McLaren MCL35M which helps with cooling in the hot conditions.

Photo by: Mark Sutton / Motorsport Images

Esteban Ocon, Alpine F1
Esteban Ocon, Alpine F1
20/21
Similarly, Alpine has deployed its louvred panels to help keep the A521 in the right operating window.

Photo by: Mark Sutton / Motorsport Images

Lewis Hamilton, Mercedes W12, is returned to the garage
Lewis Hamilton, Mercedes W12, is returned to the garage
21/21
Side view of the Mercedes W12 as it’s pushed back into the garage, which gives a good vantage point for the bargeboard cluster and sidepod deflectors.

Photo by: Steve Etherington / Motorsport Images
