Giorgio Piola's F1 technical analysis

Gallery: Key F1 tech shots from the Hungaroring test

A selection of the best technical images from the first day of testing at the Hungaroring courtesy of Sutton Images.

Ferrari SF70H rear

Ferrari SF70H rear
1/16

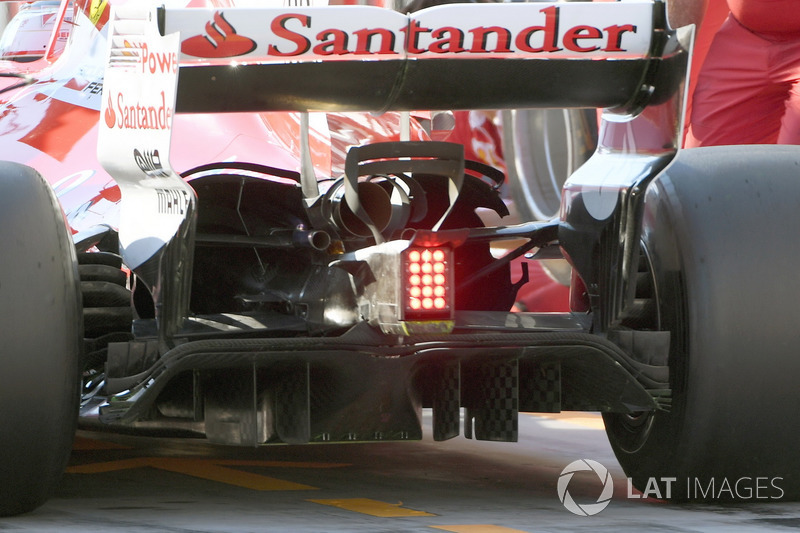

A look at the SF70H’s diffuser - note also the extreme angle of the crash structure tail.

Photo by: Sutton Images

Red Bull Racing RB13 rear diffuser detail

Red Bull Racing RB13 rear diffuser detail
2/16

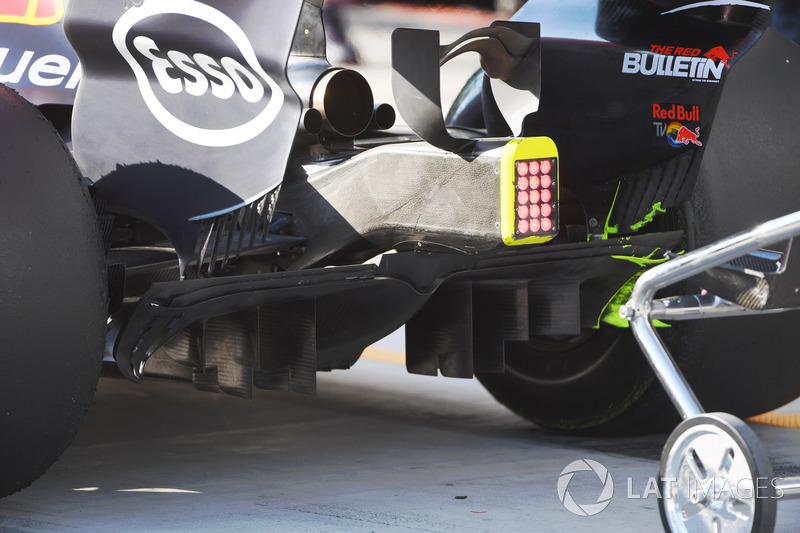

Red Bull trialling a new diffuser, which features a more curved outer wall.

Photo by: Sutton Images

Williams FW40 rear

Williams FW40 rear
3/16

Photo by: Sutton Images

Mercedes-Benz F1 W08 front wing change

Mercedes-Benz F1 W08 front wing change
4/16

As the Mercedes mechanics conduct a front wing change, it exposes the detail under the nose, including the large v-shaped ‘S’ duct inlet.

Photo by: Sutton Images

Ferrari mechanic, the wing detail of Charles Leclerc's Ferrari SF70H

Ferrari mechanic, the wing detail of Charles Leclerc's Ferrari SF70H
5/16

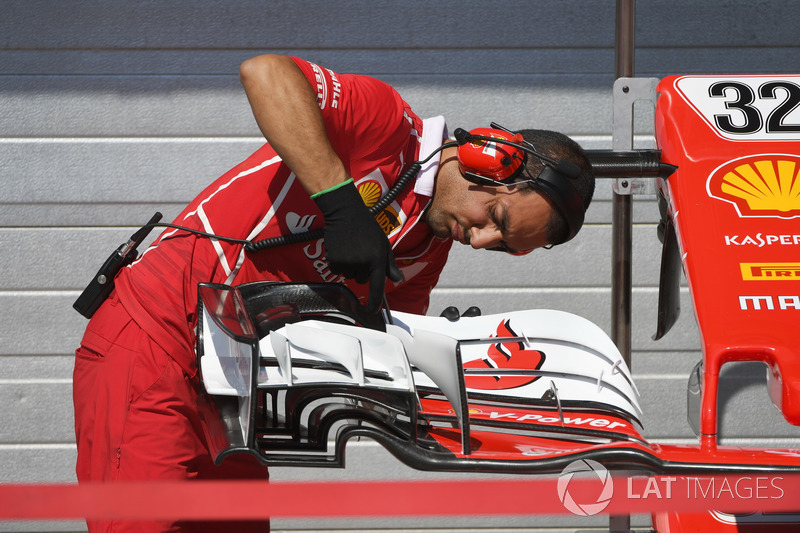

A Ferrari mechanic prepares a spare front wing by adjusting the flap angle.

Photo by: Sutton Images

Charles Leclerc, Ferrari SF70H, aero paint on rear diffuser

Charles Leclerc, Ferrari SF70H, aero paint on rear diffuser
6/16

Flo-viz applied to a new diffuser being tested by Ferrari on the first day of the post GP test. The central portion of the diffuser is now sinuous, having previously been squared off.

Photo by: Sutton Images

Ferrari SF70H rear

Ferrari SF70H rear
7/16

Photo by: Sutton Images

Nicholas Latifi, Renault Sport F1 Team RS17, aero sensors

Nicholas Latifi, Renault Sport F1 Team RS17, aero sensors
8/16

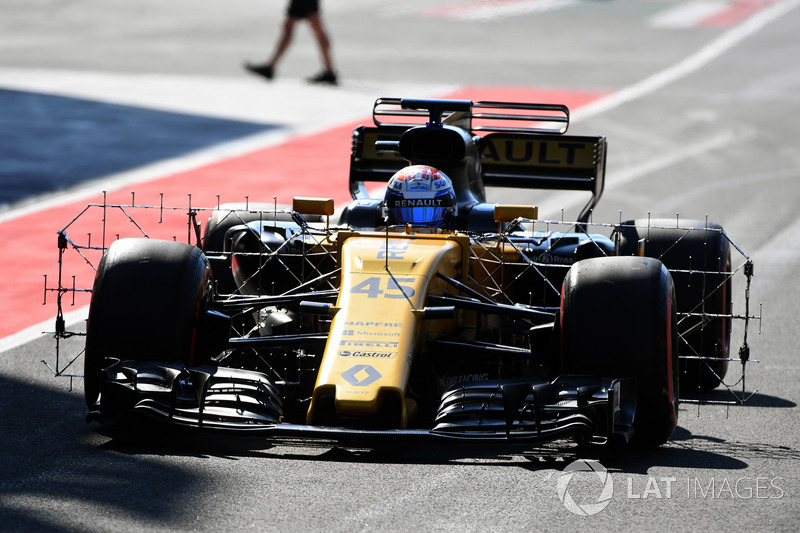

Renault continue testing with a new front wing that was run during the lead-up to the Hungarian GP. Huge kiel probe arrays were also mounted behind the front wheels of the RS17 to collect data on the wake being shed.

Photo by: Sutton Images

Sahara Force India VJM10 rear detail

Sahara Force India VJM10 rear detail
9/16

Photo by: Sutton Images

McLaren MCL32 rear wing

McLaren MCL32 rear wing
10/16

McLaren continuing to run the triple-element T-wing and revised monkey seat introduced a few days ago for the Hungarian GP.

Photo by: Sutton Images

Scuderia Toro Rosso STR12 rear wing

Scuderia Toro Rosso STR12 rear wing
11/16

Toro Rosso's lower-hooped T-Wing, first seen in Baku, features its own reverse swan-neck support and seems oddly angled down - which is likely done in order to work the rear wing harder. A pitot tube has been mounted ahead of the endplate louvres too, as the designers look for more data on their behaviour.

Photo by: Sutton Images

Gustav Malja, Sauber C36

Gustav Malja, Sauber C36
12/16

Rear shot of the C36, which saw extensive updates for the Hungarian GP, with a lower-hooped T-wing.

Photo by: Sutton Images

Max Verstappen, Red Bull Racing RB13, aero sensors

Max Verstappen, Red Bull Racing RB13, aero sensors
13/16

Photo by: Sutton Images

Gustav Malja, Sauber C36, aero sensor

Gustav Malja, Sauber C36, aero sensor
14/16

Photo by: Sutton Images

Stoffel Vandoorne, McLaren MCL32

Stoffel Vandoorne, McLaren MCL32
15/16

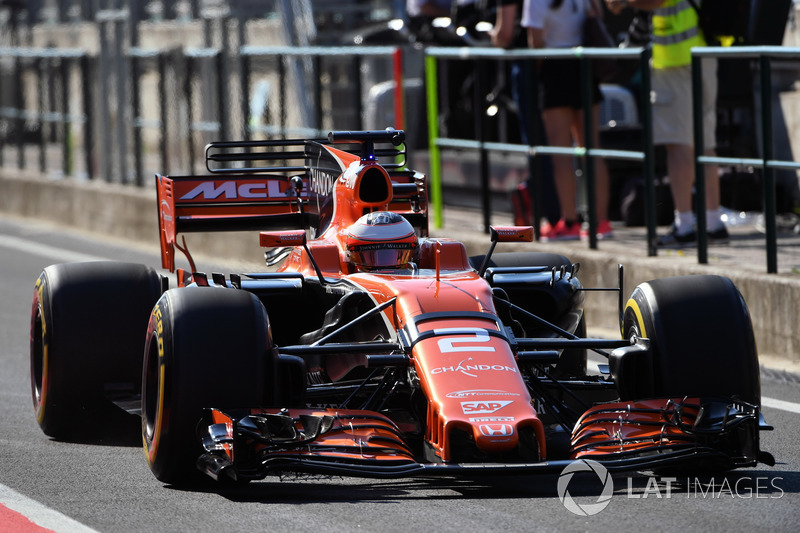

On this shot of the MCL32, a pair of kiel probe arrays can be seen mounted low down behind the front wing.

Photo by: Sutton Images

Ferrari SF70H rear wing detail

Ferrari SF70H rear wing detail
16/16

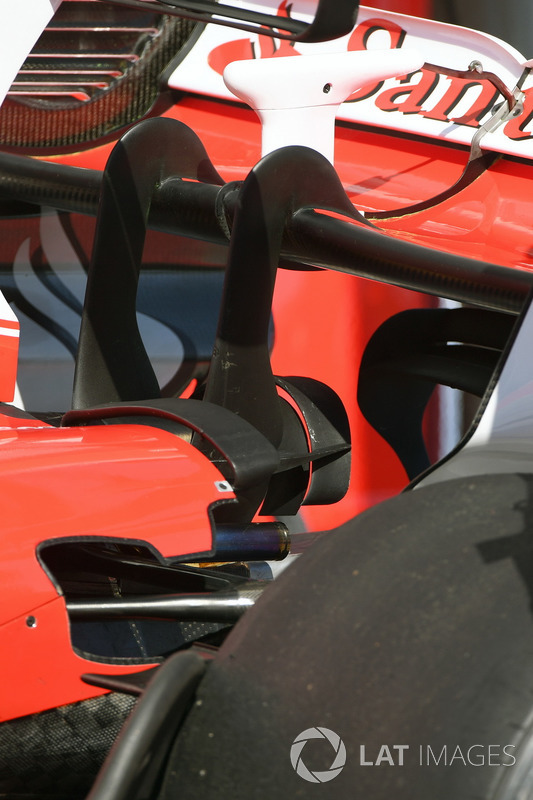

Ferrari with a monster cooling configuration supplemented by the detached gurney winglets to further increase heat extraction.

Photo by: Sutton Images
