Tech gallery: How the Ferrari SF70H evolved throughout 2017

shares
comments
Tech gallery: How the Ferrari SF70H evolved throughout 2017
Matt Somerfield
By: Matt Somerfield
Dec 26, 2017, 12:19 PM

A selection of the best images and illustrations of Ferrari’s 2017 challenger, the SF70H, courtesy of Giorgio Piola, Sutton Images and LAT images.

Slider
List

Launch

Launch
1/77

Photo by: Giorgio Piola

A top-down comparison of Ferrari's 2016 and 2017 challengers.

Launch

Launch
2/77

Photo by: Giorgio Piola

A front-end comparison of the 2016 and 2017 cars.

In detail

In detail
3/77

Photo by: Giorgio Piola

A breakdown view of the SF70H’s sidepods and the bodywork that surrounds it. The removal of the forward flow conditioning bodywork exposes more internal detail including the two cooling inlets and the movement of the upper crash structure spar to a lower, more forward position (lower arrow).

In detail

In detail
4/77

Photo by: Giorgio Piola

A side view of the nose and front wing shows the position of the 'S' duct inlet.

In detail

In detail
5/77

Photo by: Giorgio Piola

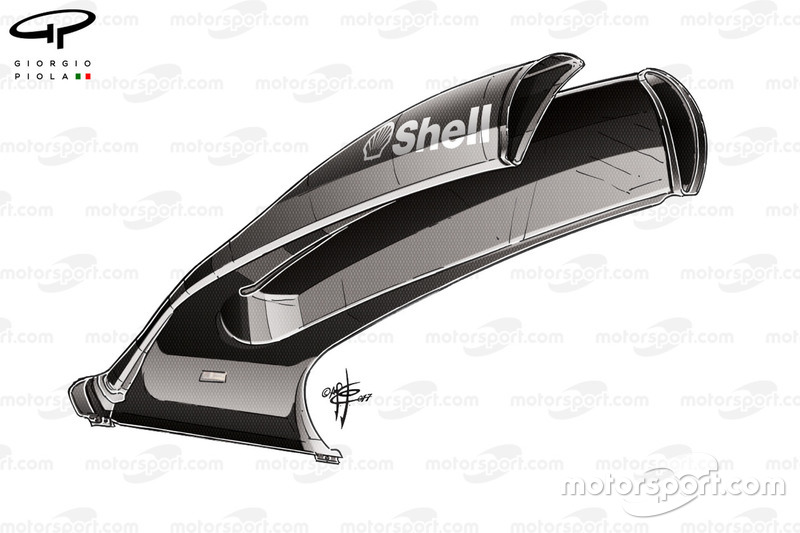

An internal view of the nose shows that the pipework carrying airflow from the inlet to the ‘S’ duct crosses over inside the nosecone.

Australian GP

Australian GP
6/77

Photo by: Giorgio Piola

For the season opener, changes were made to the wing mirrors (red arrow) and a canard was included (black arrow).

Bahrain GP

Bahrain GP
7/77

Photo by: Giorgio Piola

The slot on the edge of the SF70H’s floor had a metal support mounted in the forwardmost section (circled) to improve rigidity, after concerns were raised by other teams over the floor's flexibility.

Bahrain GP

Bahrain GP
8/77

Photo by: Giorgio Piola

A detailed depiction of the SF70H’s chassis and front suspension layout.

Bahrain GP

Bahrain GP
9/77

Photo by: LAT Images

A top-down view of the SF70H, with arrows pointing out the bulged floor.

Russian GP

Russian GP
10/77

Photo by: Giorgio Piola

Ferrari utilised an additional monkey seat in Russia. Mounted on the rear wing support pillars, the two-element winglet wrapped around the exhaust in order to leverage the plume exiting it.

Spanish GP

Spanish GP
11/77

Photo by: Giorgio Piola

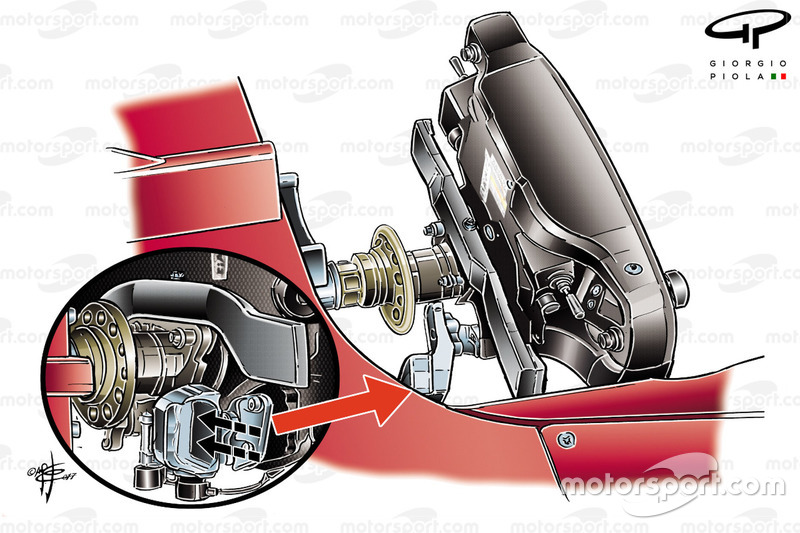

Sebastian Vettel used a new clutch paddle arrangement, utilising a socket that provided an improved feel and modulation of the clutch travel.

Spanish GP

Spanish GP
12/77

Photo by: Giorgio Piola

The team added two vertical slots and revised the curvature of the frontal region of the bargeboards in Spain.

Spanish GP

Spanish GP
13/77

Photo by: Sutton Images

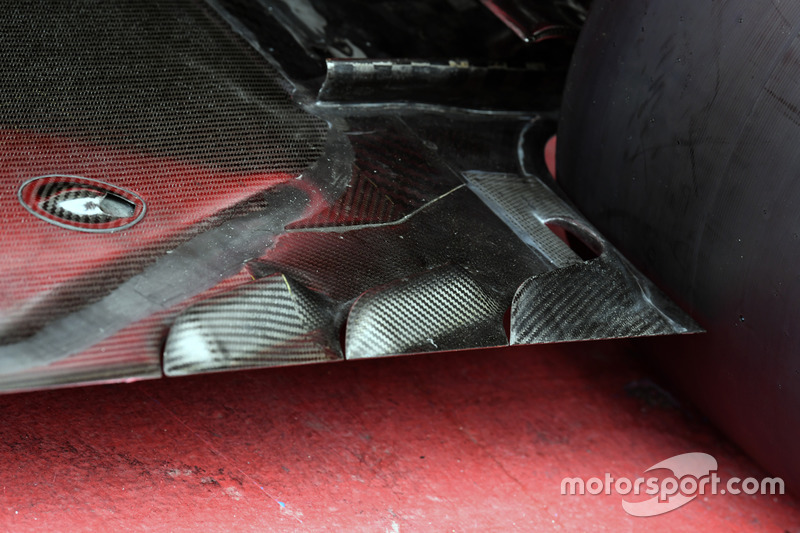

A close-up of the three L-shaped slots ahead of the rear wheel tasked with controlling ‘tyre squirt’ - a phenomenon caused by the deformation and rotation of the rear tyre, whereby airflow is squirted laterally into the diffuser's path.

Monaco GP

Monaco GP
14/77

Photo by: Giorgio Piola

Ferrari utilised a high-downforce set-up in Monaco, complete with a new forward monkey seat that exposed the frontal element to the airflow and a new flatter rearward monkey seat - both of which work the airflow harder in order that it interacts with the rear wing. The team also used its higher-downforce hooped and slotted T-wing.

Canadian GP

Canadian GP
15/77

Photo by: Giorgio Piola

A look at the sidepod's frontal region, where it meets the collection of flow devices.

Canadian GP

Canadian GP
16/77

Photo by: Giorgio Piola

Ferrari ran a different set of deflectors in Canada with a subtly-modified hole in their curved base.

Canadian GP

Canadian GP
17/77

Photo by: Sutton Images

The team ran with four diagonal slots and a short L-shaped slot in the floor ahead of the rear tyre in Canada.

Azerbaijan GP

Azerbaijan GP
18/77

Photo by: Giorgio Piola

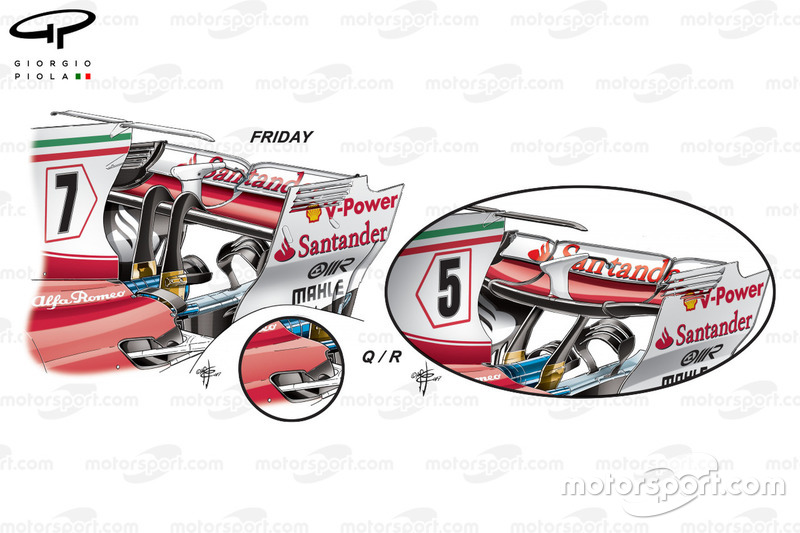

Ferrari began its weekend with a more conventional rear wing assembly and a perforated Gurney trim above the engine cover outlet - but come qualifying and the race the team switched to a spoon-style rear wing and ditched the perforated Gurney (insets).

Azerbaijan GP

Azerbaijan GP
19/77

Photo by: Giorgio Piola

Asymmetric brake cooling used on the SF70H with the teardrop-shaped outlets open on the left-hand side of the car but closed on the right.

Azerbaijan GP

Azerbaijan GP
20/77

Photo by: Giorgio Piola

Glancing into Sebastian Vettel’s cockpit, we can see the metalised clutch paddles, shaped as sockets in order that he can place his fingers within.

Azerbaijan GP

Azerbaijan GP
21/77

Photo by: Giorgio Piola

The SF70H with the covers off gives insight into the installation of the power unit and ancillary components such as the radiators.

Austrian GP

Austrian GP
22/77

Photo by: Giorgio Piola

A side-by-side comparison of the new and old wing specifications shows the shorter slot (yellow highlight), the more aggressive arc leading to the outwash tunnel (blue arrow), the arched connection at the juncture between the mainplane and neutral section (red arrow) and the new endplate canard (green arrow).

Austrian GP

Austrian GP
23/77

Photo by: Giorgio Piola

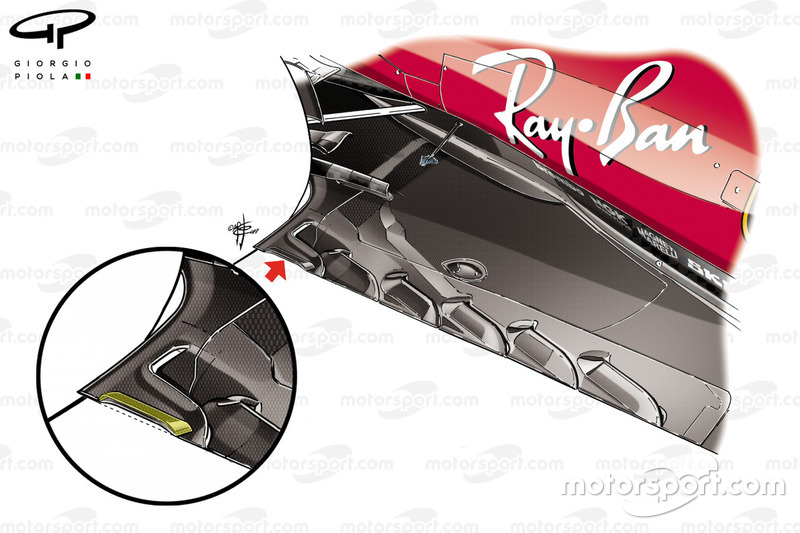

The FIA forced the team to modify the floor slot, as the previously unmounted section of floor at the rear flapped around too violently. A metal support was added at the rear of the slot (arrowed) to increase rigidity.

Austrian GP

Austrian GP
24/77

Photo by: Sutton Images

Front left brake assembly with a fully enclosed brake drum/cake tin.

Austrian GP

Austrian GP
25/77

Photo by: Sutton Images

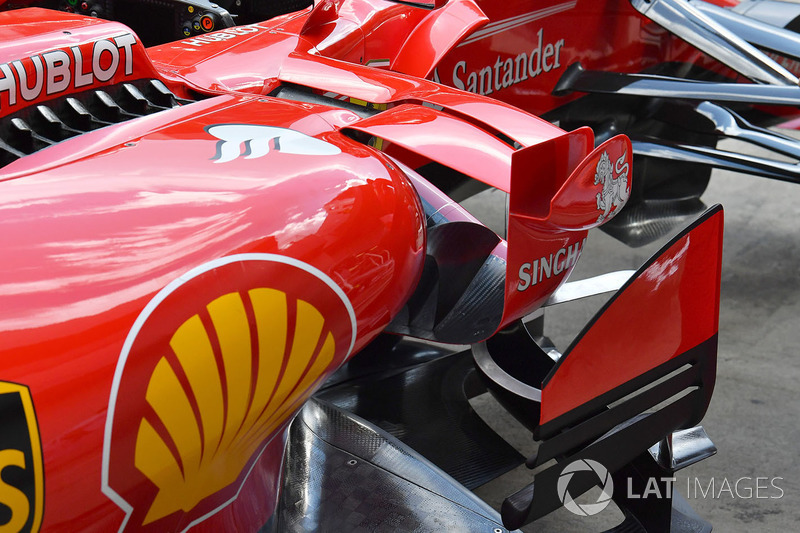

A close-up of the various flow conditioning devices placed ahead of the sidepod.

Austrian GP

Austrian GP
26/77

Photo by: Giorgio Piola

The revised front wing introduced by the team for the Austrian GP changed the mainplane's profile alongside the central neutral section in order to affect the Y250 vortex differently. In the outboard section, the long slot (left inset) was rescinded, making way for a shorter slot over the top of the revised arc that forms the outwash tunnel. Hung from the endplate another, more complex, canard was added too (arrowed and see also right inset)

Austrian GP

Austrian GP
27/77

Photo by: Giorgio Piola

The newer-specification front wing.

British GP

British GP
28/77

Photo by: Giorgio Piola

A close-up of the rear brake duct fins.

Hungarian GP

Hungarian GP
29/77

Photo by: Giorgio Piola

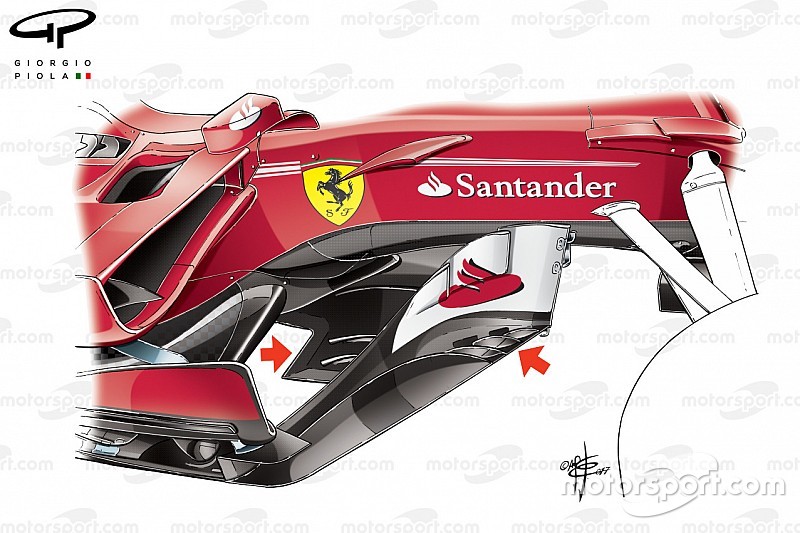

Changes were made to the bargeboards and floor extensions in Hungary, with slots added to the leading edge of both.

Hungarian GP

Hungarian GP
30/77

Photo by: Giorgio Piola

The team also modified the floor extensions, with the single hole previously found in the centre of the floor replaced with two slots on the leading edge.

Hungarian GP

Hungarian GP
31/77

Photo by: Sutton Images

In the post-race test, Ferrari trialled a new diffuser with a flatter central section, seen here in flo-viz paint.

Belgian GP

Belgian GP
32/77

Photo by: Giorgio Piola

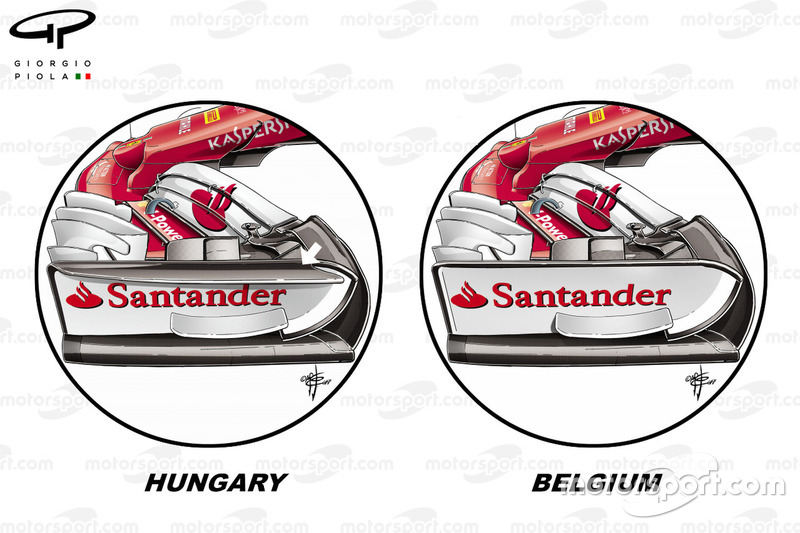

A comparison of the front wing specifications used in Hungary and Belgium shows the triangular vane atop the endplate has been removed.

Belgium GP

Belgium GP
33/77

Photo by: Giorgio Piola

Ferrari followed Mercedes' example by adding a longitudinal flap on the edge of the L-shaped floor, just ahead of the rear tyre (highlighted in yellow). Note the curvature of the floor below (dotted line), which mirrors the shape of the flap.

Italian GP

Italian GP
34/77

Photo by: Giorgio Piola

A comparison of the two rear wings used at Belgium and Italy. Among the changes are the spoon shaping being discarded for a more conventional short chord, a lower angle of attack, only one centreline slot gap separator and V groove (black arrow) and a change back to a more conventional set of endplate louvres (highlighted in yellow)

Italian GP

Italian GP
35/77

Photo by: Sutton Images

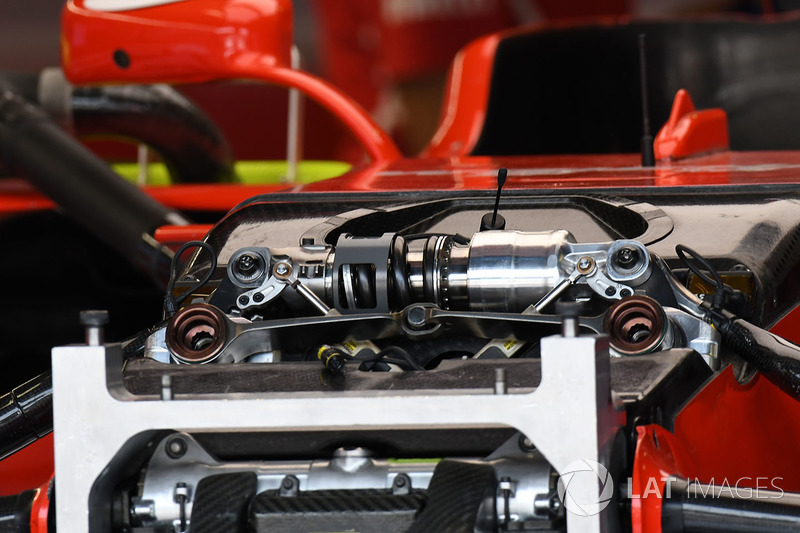

A close-up of the suspension's third element or ‘heave’ damper.

Italian GP

Italian GP
36/77

Photo by: Sutton Images

Flo-viz paint on Kimi Raikkonen's rear wing.

Singapore GP

Singapore GP
37/77

Photo by: Giorgio Piola

A comparison of the finger slot-style clutch paddle arrangements used by Vettel since Spain.

Singapore GP

Singapore GP
38/77

Photo by: Giorgio Piola

As a comparison, the wishbone design favoured by Raikkonen and utilised by Vettel up to Spain and from Malaysia onwards.

Singapore GP

Singapore GP
39/77

Photo by: Giorgio Piola

A top-down view of the bargeboard and deflector region, showing the two slots present in the deflector and floor.

Singapore GP

Singapore GP
40/77

Photo by: Giorgio Piola

An illustration of the SF70H’s upright and brake assembly, with attention paid to the number of drill positions on the brake disc. The maximum configuration used in Singapore featured six drill holes across the face, drilled in a chevron formation in order that they didn’t fatigue the disc when heat was dissipated. Contrary to that, less heat being generated for Monza requires less drill holes (four across the face).

Singapore GP

Singapore GP
41/77

Photo by: Sutton Images

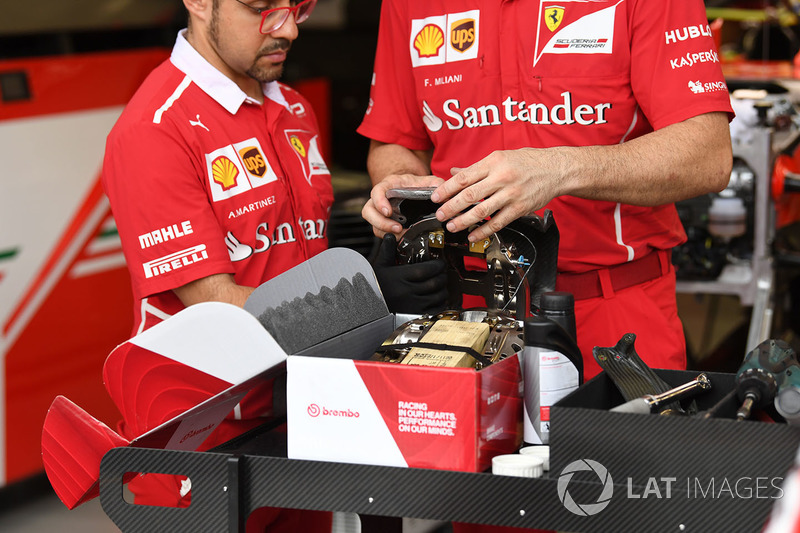

Ferrari mechanics fit cooling pipework over the top of the Brembo calipers.

Singapore GP

Singapore GP
42/77

Photo by: Giorgio Piola

Ferrari trialled a new front brake duct assembly with an in-built crossover pipe that helps to move airflow between the surface of the drum and the wheel rim.

Singapore GP

Singapore GP
43/77

Photo by: Giorgio Piola

A top-down view of the SF70H's front wing.

Singapore GP

Singapore GP
44/77

Photo by: Giorgio Piola

Ferrari’s teardrop-shaped outlets in the front brake drum allow heat created under braking to be dissipated out of the wheel face as it mixes with the through flow between the drum and the wheel rim.

Singapore GP

Singapore GP
45/77

Photo by: Sutton Images

The rear brake assembly sans brake drum/cake tin shows off the internal detail, including the pipework associated with cooling the caliper.

Singapore GP

Singapore GP
46/77

Photo by: Sutton Images

A close-up of the ‘S’ ducts outlet on the bridge of the nose.

Singapore GP

Singapore GP
47/77

Photo by: Sutton Images

A view of the front wing from behind exposes details not often seen, such as the strakes that run underneath.

Singapore GP

Singapore GP
48/77

Photo by: Sutton Images

A close-up of the double monkey seat that wraps around the exhaust exit.

Malaysian GP

Malaysian GP
49/77

Photo by: Giorgio Piola

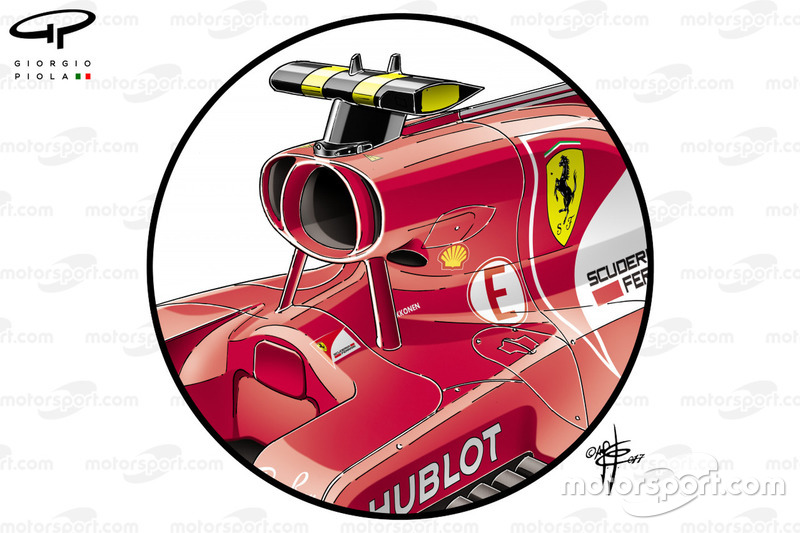

Ferrari introduced a new airbox configuration in Malaysia, which featured two smaller inlets either side of the main airbox in order to feed an oil cooler mounted above the turbocharger.

Malaysian GP

Malaysian GP
50/77

Photo by: Giorgio Piola

The internal pipework/ducting that feeds air from the new inlets either side of the main airbox down to the oil cooler.

Malaysian GP

Malaysian GP
51/77

Photo by: Giorgio Piola

The new bargeboards introduced in Malaysia featured a revised leading edge (blue arrow), owing to the inclusion of a boomerang-shaped pre-bargeboard (green arrow), while the already slotted footplate was changed for a row of mini-winglets (red arrow).

Malaysian GP

Malaysian GP
52/77

Photo by: Giorgio Piola

Kimi Raikkonen's SF70H is stripped down on the grid as the team tries to resolve an issue with the power unit. Note how the power unit has been enclosed in order to improve airflow through the car. The louvred panel above the radiator is also notable as it improves its efficiency.

Malaysian GP

Malaysian GP
53/77

Photo by: Sutton Images

A close-up of the two part turning vanes used by Ferrari, one section attached to the nose and the other under the chassis.

Malaysian GP

Malaysian GP
54/77

Photo by: Sutton Images

The diffuser on the SF70H in detail.

Japanese GP

Japanese GP
55/77

Photo by: Sutton Images

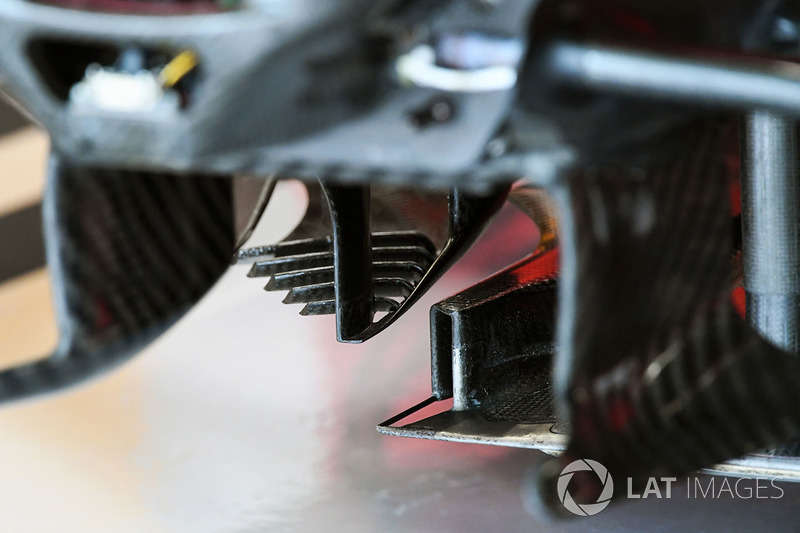

The mini-winglets that extend outwards and form the footplate of the SF70H's bargeboard.

Japanese GP

Japanese GP
56/77

Photo by: Giorgio Piola

The steering wheel turned upside down on the chassis shows the elongated wishbone-style clutch paddle.

Japanese GP

Japanese GP
57/77

Photo by: Giorgio Piola

A top-down view of the SF70H’s rear end, including the spoon rear wing, single element T-wing and coke bottle-shaped bodywork.

Japanese GP

Japanese GP
58/77

Photo by: Sutton Images

With the floor detached from the car, we can see the swan-neck style supports that fix the Gurney trims to the floor/diffuser.

Japanese GP

Japanese GP
59/77

Photo by: Giorgio Piola

Various radiators and oil coolers are visible on the car without the bodywork wrapped around it.

United States GP

United States GP
60/77

Photo by: Giorgio Piola

The SF70H’s floor featured four diagonal slots and a larger L-shaped slot ahead of the rear wheel at Austin.

United States GP

United States GP
61/77

Photo by: Giorgio Piola

Ferrari utilised a new diffuser for Austin, featuring a flatter central section and two additional crash structure winglets.

United States GP

United States GP
62/77

Photo by: Giorgio Piola

Flo-viz painted on Ferrari's new diffuser.

United States GP

United States GP
63/77

Photo by: Giorgio Piola

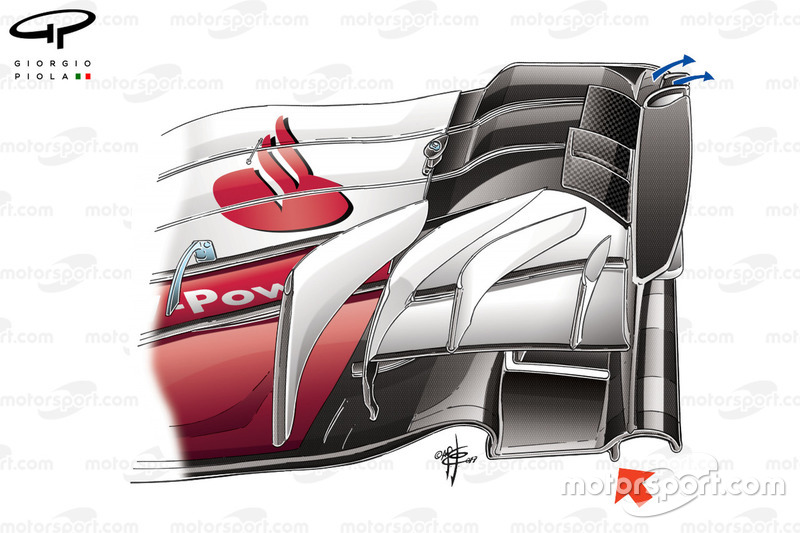

The changes made to Ferrari’s front wing in the USA, complete with optimisation of the footplate (red arrow) and the introduction of a small twisted flap on the trailing edge of the endplate, to drive flow outboard.

United States GP

United States GP
64/77

Photo by: Giorgio Piola

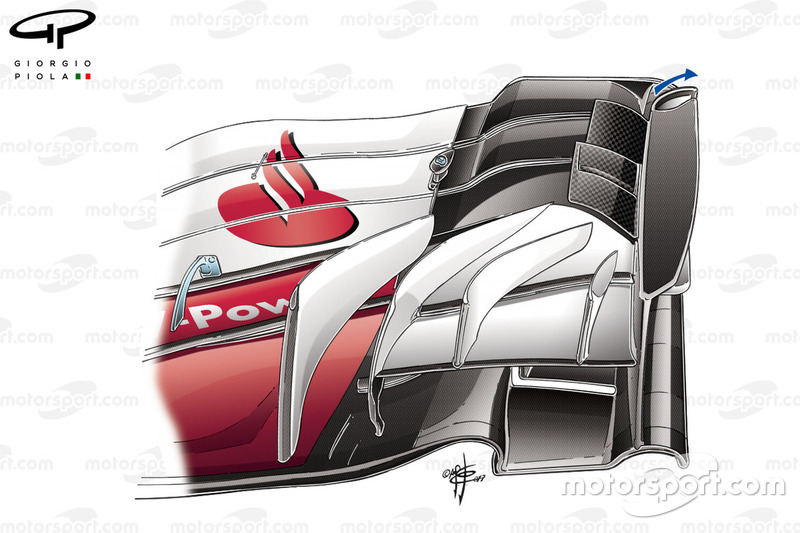

For comparison, here is the older-specification front wing.

Mexican GP

Mexican GP
65/77

The rear brake duct assembly. Note the horizontal strakes used to control the airflow between it and the surface of the wheel rim.

Mexican GP

Mexican GP
66/77

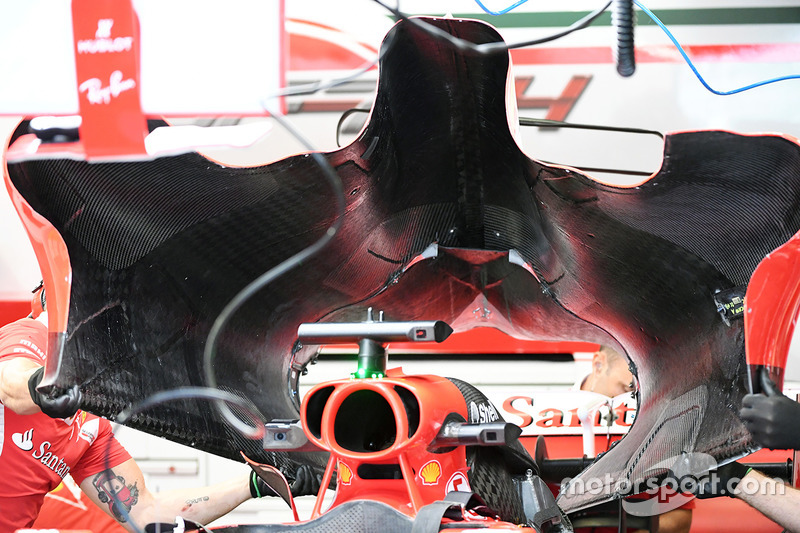

Mechanics lift the all-in-one engine cover onto the SF70H as they prepare it for action.

Mexican GP

Mexican GP
67/77

Photo by: Giorgio Piola

The SF70H’s floor featured five diagonal floor slots and a larger L-shaped one at the rear in Mexico.

Brazilian GP

Brazilian GP
68/77

Photo by: Mark Sutton

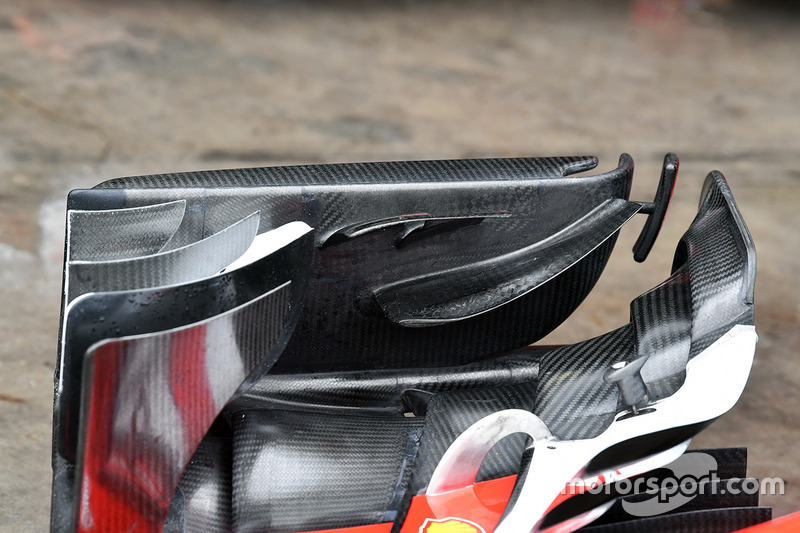

A close-up of the interior detail of the endplate, which features two canards of varying complexity and the smaller endplate vane hung off the trailing edge of the main endplate.

Brazilian GP

Brazilian GP
69/77

Photo by: Mark Sutton

The front wing endplate canards from close proximity.

Brazilian GP

Brazilian GP
70/77

Photo by: Mark Sutton

A look at the underside of the SF70H’s front wing. Note the square titanium skid plates added under the wing to protect it in the event of it hitting the track's surface.

Brazilian GP

Brazilian GP
71/77

Photo by: Mark Sutton

A close-up of the sidepod deflector that Ferrari ran all season, although it was painted differently from Canada onwards.

Brazilian GP

Brazilian GP
72/77

Photo by: Mark Sutton

An extreme close-up of the small supports used to move the aerodynamically-neutral camera pods away from the nose.

Brazilian GP

Brazilian GP
73/77

Photo by: Mark Sutton

A close-up view of the various winglets and monkey seats used at the rear of the car.

Abu Dhabi GP

Abu Dhabi GP
74/77

Photo by: Giorgio Piola

The floor ahead of the rear tyre features four diagonal slots and a larger L-shaped slot at the rearmost point.

Abu Dhabi GP

Abu Dhabi GP
75/77

Photo by: Giorgio Piola

Ferrari tested a new diffuser at the last race of the season, evaluating options for its 2018 challenger. The diffuser is remarkably similar to a design used by Red Bull in the latter part of the season and utilises a pair of Gurney trims that wrap around the diffuser periphery.

Abu Dhabi GP

Abu Dhabi GP
76/77

Photo by: Giorgio Piola

Post-Abu Dhabi GP test

Post-Abu Dhabi GP test
77/77

Photo by: Sutton Images

Ferrari ran with several kiel probe arrays mounted to the rear of the car to better understand the aerodynamic impact of the rear wheel wake on the diffuser.
