Tech gallery: How the Ferrari SF70H evolved throughout 2017

A selection of the best images and illustrations of Ferrari’s 2017 challenger, the SF70H, courtesy of Giorgio Piola, Sutton Images and LAT images.

Launch

Launch
1/77

A top-down comparison of Ferrari's 2016 and 2017 challengers.

Photo by: Giorgio Piola

Launch

Launch
2/77

A front-end comparison of the 2016 and 2017 cars.

Photo by: Giorgio Piola

In detail

In detail
3/77

A breakdown view of the SF70H’s sidepods and the bodywork that surrounds it. The removal of the forward flow conditioning bodywork exposes more internal detail including the two cooling inlets and the movement of the upper crash structure spar to a lower, more forward position (lower arrow).

Photo by: Giorgio Piola

In detail

In detail
4/77

A side view of the nose and front wing shows the position of the 'S' duct inlet.

Photo by: Giorgio Piola

In detail

In detail
5/77

An internal view of the nose shows that the pipework carrying airflow from the inlet to the ‘S’ duct crosses over inside the nosecone.

Photo by: Giorgio Piola

Australian GP

Australian GP
6/77

For the season opener, changes were made to the wing mirrors (red arrow) and a canard was included (black arrow).

Photo by: Giorgio Piola

Bahrain GP

Bahrain GP
7/77

The slot on the edge of the SF70H’s floor had a metal support mounted in the forwardmost section (circled) to improve rigidity, after concerns were raised by other teams over the floor's flexibility.

Photo by: Giorgio Piola

Bahrain GP

Bahrain GP
8/77

A detailed depiction of the SF70H’s chassis and front suspension layout.

Photo by: Giorgio Piola

Bahrain GP

Bahrain GP
9/77

A top-down view of the SF70H, with arrows pointing out the bulged floor.

Photo by: LAT Images

Russian GP

Russian GP
10/77

Ferrari utilised an additional monkey seat in Russia. Mounted on the rear wing support pillars, the two-element winglet wrapped around the exhaust in order to leverage the plume exiting it.

Photo by: Giorgio Piola

Spanish GP

Spanish GP
11/77

Sebastian Vettel used a new clutch paddle arrangement, utilising a socket that provided an improved feel and modulation of the clutch travel.

Photo by: Giorgio Piola

Spanish GP

Spanish GP
12/77

The team added two vertical slots and revised the curvature of the frontal region of the bargeboards in Spain.

Photo by: Giorgio Piola

Spanish GP

Spanish GP
13/77

A close-up of the three L-shaped slots ahead of the rear wheel tasked with controlling ‘tyre squirt’ - a phenomenon caused by the deformation and rotation of the rear tyre, whereby airflow is squirted laterally into the diffuser's path.

Photo by: Sutton Images

Monaco GP

Monaco GP
14/77

Ferrari utilised a high-downforce set-up in Monaco, complete with a new forward monkey seat that exposed the frontal element to the airflow and a new flatter rearward monkey seat - both of which work the airflow harder in order that it interacts with the rear wing. The team also used its higher-downforce hooped and slotted T-wing.

Photo by: Giorgio Piola

Canadian GP

Canadian GP
15/77

A look at the sidepod's frontal region, where it meets the collection of flow devices.

Photo by: Giorgio Piola

Canadian GP

Canadian GP
16/77

Ferrari ran a different set of deflectors in Canada with a subtly-modified hole in their curved base.

Photo by: Giorgio Piola

Canadian GP

Canadian GP
17/77

The team ran with four diagonal slots and a short L-shaped slot in the floor ahead of the rear tyre in Canada.

Photo by: Sutton Images

Azerbaijan GP

Azerbaijan GP
18/77

Ferrari began its weekend with a more conventional rear wing assembly and a perforated Gurney trim above the engine cover outlet - but come qualifying and the race the team switched to a spoon-style rear wing and ditched the perforated Gurney (insets).

Photo by: Giorgio Piola

Azerbaijan GP

Azerbaijan GP
19/77

Asymmetric brake cooling used on the SF70H with the teardrop-shaped outlets open on the left-hand side of the car but closed on the right.

Photo by: Giorgio Piola

Azerbaijan GP

Azerbaijan GP
20/77

Glancing into Sebastian Vettel’s cockpit, we can see the metalised clutch paddles, shaped as sockets in order that he can place his fingers within.

Photo by: Giorgio Piola

Azerbaijan GP

Azerbaijan GP
21/77

The SF70H with the covers off gives insight into the installation of the power unit and ancillary components such as the radiators.

Photo by: Giorgio Piola

Austrian GP

Austrian GP
22/77

A side-by-side comparison of the new and old wing specifications shows the shorter slot (yellow highlight), the more aggressive arc leading to the outwash tunnel (blue arrow), the arched connection at the juncture between the mainplane and neutral section (red arrow) and the new endplate canard (green arrow).

Photo by: Giorgio Piola

Austrian GP

Austrian GP
23/77

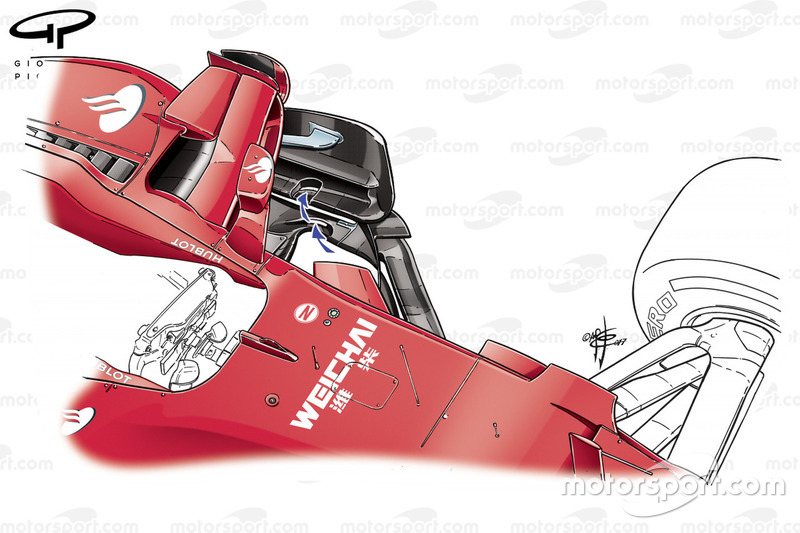

The FIA forced the team to modify the floor slot, as the previously unmounted section of floor at the rear flapped around too violently. A metal support was added at the rear of the slot (arrowed) to increase rigidity.

Photo by: Giorgio Piola

Austrian GP

Austrian GP
24/77

Front left brake assembly with a fully enclosed brake drum/cake tin.

Photo by: Sutton Images

Austrian GP

Austrian GP
25/77

A close-up of the various flow conditioning devices placed ahead of the sidepod.

Photo by: Sutton Images

Austrian GP

Austrian GP
26/77

The revised front wing introduced by the team for the Austrian GP changed the mainplane's profile alongside the central neutral section in order to affect the Y250 vortex differently. In the outboard section, the long slot (left inset) was rescinded, making way for a shorter slot over the top of the revised arc that forms the outwash tunnel. Hung from the endplate another, more complex, canard was added too (arrowed and see also right inset)

Photo by: Giorgio Piola

Austrian GP

Austrian GP
27/77

The newer-specification front wing.

Photo by: Giorgio Piola

British GP

British GP
28/77

A close-up of the rear brake duct fins.

Photo by: Giorgio Piola

Hungarian GP

Hungarian GP
29/77

Changes were made to the bargeboards and floor extensions in Hungary, with slots added to the leading edge of both.

Photo by: Giorgio Piola

Hungarian GP

Hungarian GP
30/77

The team also modified the floor extensions, with the single hole previously found in the centre of the floor replaced with two slots on the leading edge.

Photo by: Giorgio Piola

Hungarian GP

Hungarian GP
31/77

In the post-race test, Ferrari trialled a new diffuser with a flatter central section, seen here in flo-viz paint.

Photo by: Sutton Images

Belgian GP

Belgian GP
32/77

A comparison of the front wing specifications used in Hungary and Belgium shows the triangular vane atop the endplate has been removed.

Photo by: Giorgio Piola

Belgium GP

Belgium GP
33/77

Ferrari followed Mercedes' example by adding a longitudinal flap on the edge of the L-shaped floor, just ahead of the rear tyre (highlighted in yellow). Note the curvature of the floor below (dotted line), which mirrors the shape of the flap.

Photo by: Giorgio Piola

Italian GP

Italian GP
34/77

A comparison of the two rear wings used at Belgium and Italy. Among the changes are the spoon shaping being discarded for a more conventional short chord, a lower angle of attack, only one centreline slot gap separator and V groove (black arrow) and a change back to a more conventional set of endplate louvres (highlighted in yellow)

Photo by: Giorgio Piola

Italian GP

Italian GP
35/77

A close-up of the suspension's third element or ‘heave’ damper.

Photo by: Sutton Images

Italian GP

Italian GP
36/77

Flo-viz paint on Kimi Raikkonen's rear wing.

Photo by: Sutton Images

Singapore GP

Singapore GP
37/77

A comparison of the finger slot-style clutch paddle arrangements used by Vettel since Spain.

Photo by: Giorgio Piola

Singapore GP

Singapore GP
38/77

As a comparison, the wishbone design favoured by Raikkonen and utilised by Vettel up to Spain and from Malaysia onwards.

Photo by: Giorgio Piola

Singapore GP

Singapore GP
39/77

A top-down view of the bargeboard and deflector region, showing the two slots present in the deflector and floor.

Photo by: Giorgio Piola

Singapore GP

Singapore GP
40/77

An illustration of the SF70H’s upright and brake assembly, with attention paid to the number of drill positions on the brake disc. The maximum configuration used in Singapore featured six drill holes across the face, drilled in a chevron formation in order that they didn’t fatigue the disc when heat was dissipated. Contrary to that, less heat being generated for Monza requires less drill holes (four across the face).

Photo by: Giorgio Piola

Singapore GP

Singapore GP
41/77

Ferrari mechanics fit cooling pipework over the top of the Brembo calipers.

Photo by: Sutton Images

Singapore GP

Singapore GP
42/77

Ferrari trialled a new front brake duct assembly with an in-built crossover pipe that helps to move airflow between the surface of the drum and the wheel rim.

Photo by: Giorgio Piola

Singapore GP

Singapore GP
43/77

A top-down view of the SF70H's front wing.

Photo by: Giorgio Piola

Singapore GP

Singapore GP
44/77

Ferrari’s teardrop-shaped outlets in the front brake drum allow heat created under braking to be dissipated out of the wheel face as it mixes with the through flow between the drum and the wheel rim.

Photo by: Giorgio Piola

Singapore GP

Singapore GP
45/77

The rear brake assembly sans brake drum/cake tin shows off the internal detail, including the pipework associated with cooling the caliper.

Photo by: Sutton Images

Singapore GP

Singapore GP
46/77

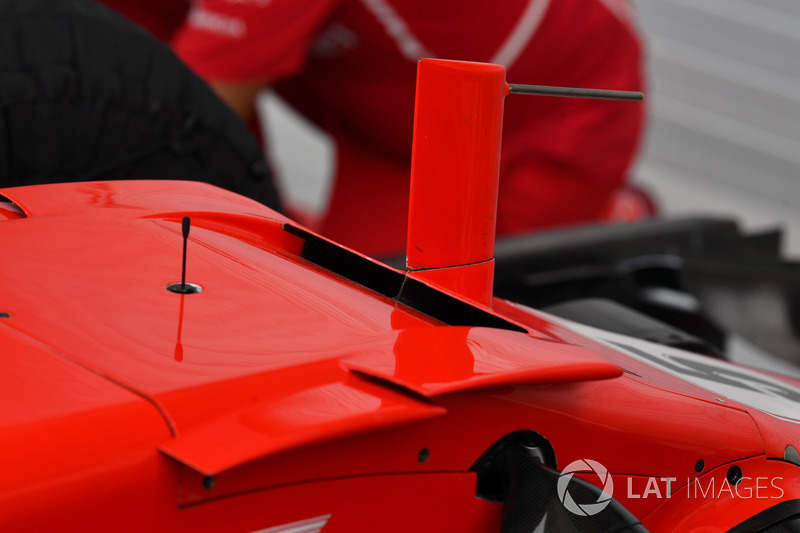

A close-up of the ‘S’ ducts outlet on the bridge of the nose.

Photo by: Sutton Images

Singapore GP

Singapore GP
47/77

A view of the front wing from behind exposes details not often seen, such as the strakes that run underneath.

Photo by: Sutton Images

Singapore GP

Singapore GP
48/77

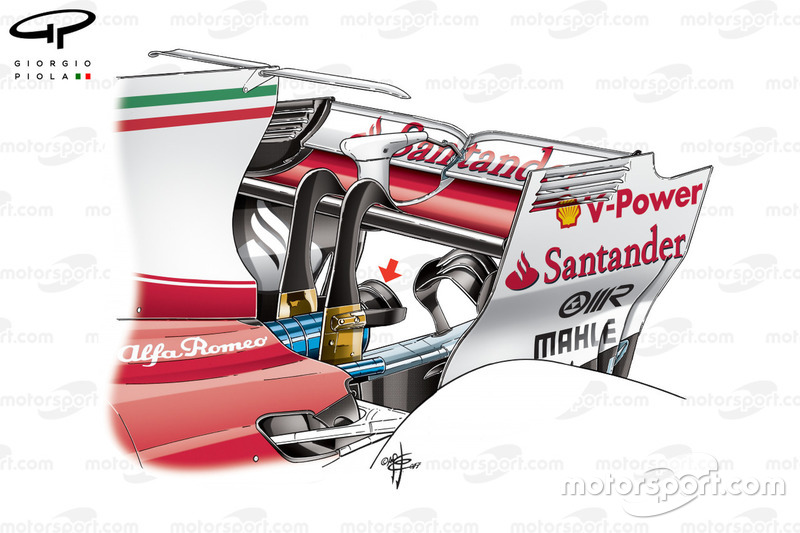

A close-up of the double monkey seat that wraps around the exhaust exit.

Photo by: Sutton Images

Malaysian GP

Malaysian GP
49/77

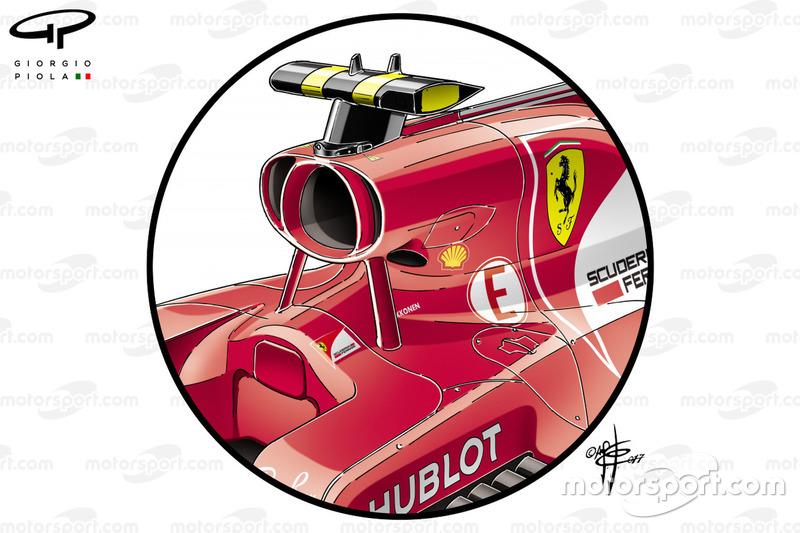

Ferrari introduced a new airbox configuration in Malaysia, which featured two smaller inlets either side of the main airbox in order to feed an oil cooler mounted above the turbocharger.

Photo by: Giorgio Piola

Malaysian GP

Malaysian GP
50/77

The internal pipework/ducting that feeds air from the new inlets either side of the main airbox down to the oil cooler.

Photo by: Giorgio Piola

Malaysian GP

Malaysian GP
51/77

The new bargeboards introduced in Malaysia featured a revised leading edge (blue arrow), owing to the inclusion of a boomerang-shaped pre-bargeboard (green arrow), while the already slotted footplate was changed for a row of mini-winglets (red arrow).

Photo by: Giorgio Piola

Malaysian GP

Malaysian GP
52/77

Kimi Raikkonen's SF70H is stripped down on the grid as the team tries to resolve an issue with the power unit. Note how the power unit has been enclosed in order to improve airflow through the car. The louvred panel above the radiator is also notable as it improves its efficiency.

Photo by: Giorgio Piola

Malaysian GP

Malaysian GP
53/77

A close-up of the two part turning vanes used by Ferrari, one section attached to the nose and the other under the chassis.

Photo by: Sutton Images

Malaysian GP

Malaysian GP
54/77

The diffuser on the SF70H in detail.

Photo by: Sutton Images

Japanese GP

Japanese GP
55/77

The mini-winglets that extend outwards and form the footplate of the SF70H's bargeboard.

Photo by: Sutton Images

Japanese GP

Japanese GP
56/77

The steering wheel turned upside down on the chassis shows the elongated wishbone-style clutch paddle.

Photo by: Giorgio Piola

Japanese GP

Japanese GP
57/77

A top-down view of the SF70H’s rear end, including the spoon rear wing, single element T-wing and coke bottle-shaped bodywork.

Photo by: Giorgio Piola

Japanese GP

Japanese GP
58/77

With the floor detached from the car, we can see the swan-neck style supports that fix the Gurney trims to the floor/diffuser.

Photo by: Sutton Images

Japanese GP

Japanese GP
59/77

Various radiators and oil coolers are visible on the car without the bodywork wrapped around it.

Photo by: Giorgio Piola

United States GP

United States GP
60/77

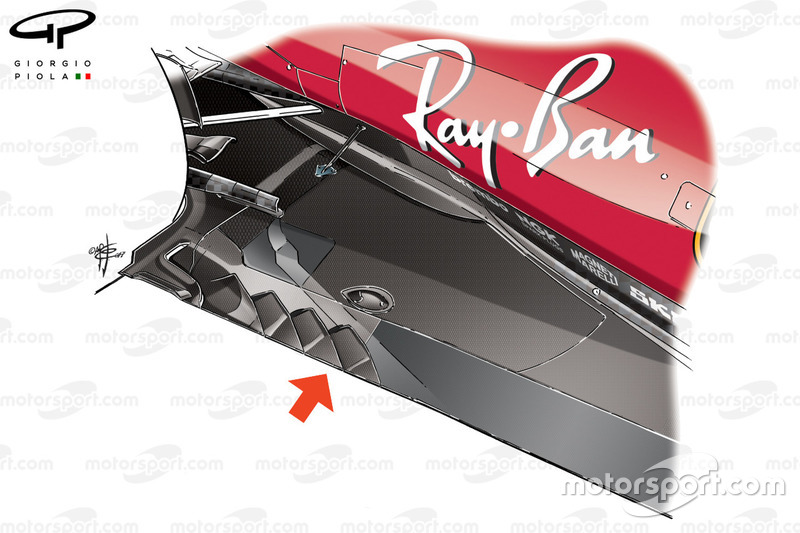

The SF70H’s floor featured four diagonal slots and a larger L-shaped slot ahead of the rear wheel at Austin.

Photo by: Giorgio Piola

United States GP

United States GP
61/77

Ferrari utilised a new diffuser for Austin, featuring a flatter central section and two additional crash structure winglets.

Photo by: Giorgio Piola

United States GP

United States GP
62/77

Flo-viz painted on Ferrari's new diffuser.

Photo by: Giorgio Piola

United States GP

United States GP
63/77

The changes made to Ferrari’s front wing in the USA, complete with optimisation of the footplate (red arrow) and the introduction of a small twisted flap on the trailing edge of the endplate, to drive flow outboard.

Photo by: Giorgio Piola

United States GP

United States GP
64/77

For comparison, here is the older-specification front wing.

Photo by: Giorgio Piola

Mexican GP

Mexican GP
65/77

The rear brake duct assembly. Note the horizontal strakes used to control the airflow between it and the surface of the wheel rim.

Photo by: Mark Sutton

Mexican GP

Mexican GP
66/77

Mechanics lift the all-in-one engine cover onto the SF70H as they prepare it for action.

Photo by: Mark Sutton

Mexican GP

Mexican GP
67/77

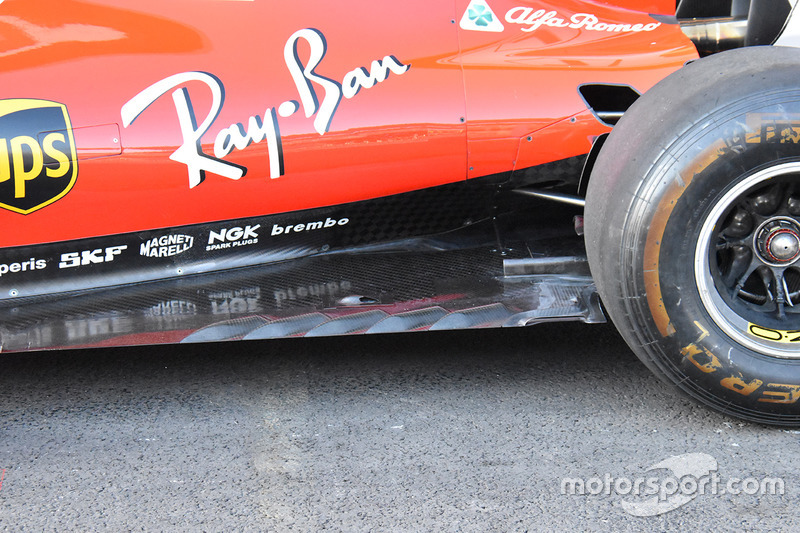

The SF70H’s floor featured five diagonal floor slots and a larger L-shaped one at the rear in Mexico.

Photo by: Giorgio Piola

Brazilian GP

Brazilian GP
68/77

A close-up of the interior detail of the endplate, which features two canards of varying complexity and the smaller endplate vane hung off the trailing edge of the main endplate.

Photo by: Mark Sutton

Brazilian GP

Brazilian GP
69/77

The front wing endplate canards from close proximity.

Photo by: Mark Sutton

Brazilian GP

Brazilian GP
70/77

A look at the underside of the SF70H’s front wing. Note the square titanium skid plates added under the wing to protect it in the event of it hitting the track's surface.

Photo by: Mark Sutton

Brazilian GP

Brazilian GP
71/77

A close-up of the sidepod deflector that Ferrari ran all season, although it was painted differently from Canada onwards.

Photo by: Mark Sutton

Brazilian GP

Brazilian GP
72/77

An extreme close-up of the small supports used to move the aerodynamically-neutral camera pods away from the nose.

Photo by: Mark Sutton

Brazilian GP

Brazilian GP
73/77

A close-up view of the various winglets and monkey seats used at the rear of the car.

Photo by: Mark Sutton

Abu Dhabi GP

Abu Dhabi GP
74/77

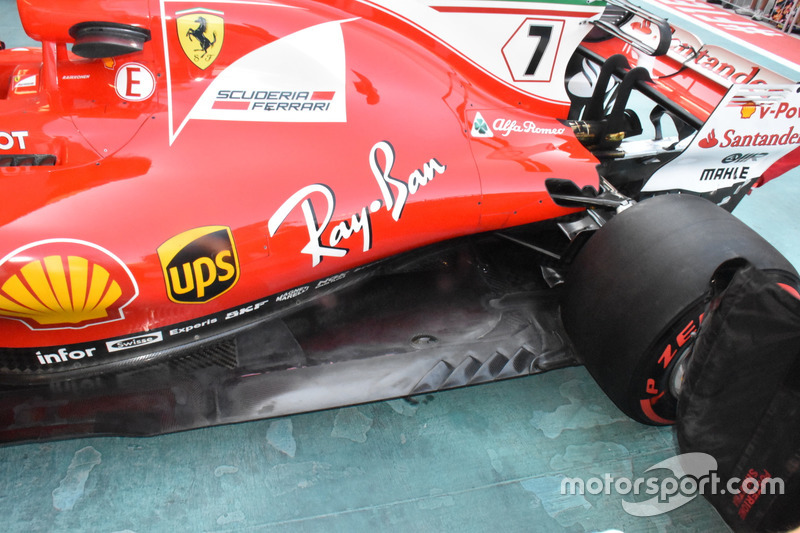

The floor ahead of the rear tyre features four diagonal slots and a larger L-shaped slot at the rearmost point.

Photo by: Giorgio Piola

Abu Dhabi GP

Abu Dhabi GP
75/77

Ferrari tested a new diffuser at the last race of the season, evaluating options for its 2018 challenger. The diffuser is remarkably similar to a design used by Red Bull in the latter part of the season and utilises a pair of Gurney trims that wrap around the diffuser periphery.

Photo by: Giorgio Piola

Abu Dhabi GP

Abu Dhabi GP
76/77

Photo by: Giorgio Piola

Post-Abu Dhabi GP test

Post-Abu Dhabi GP test
77/77

Ferrari ran with several kiel probe arrays mounted to the rear of the car to better understand the aerodynamic impact of the rear wheel wake on the diffuser.

Photo by: Sutton Images
