Spanish GP: Latest F1 tech updates, direct from the garages
Giorgio Piola
By: Giorgio Piola
Co-author: Matt Somerfield
May 13, 2018, 7:53 AM

As Formula 1 returns to Europe, Giorgio Piola and Sutton Images reveal the all-important technical updates on show in the Barcelona pitlane.

Slider
List

McLaren MCL33 nose and front wing

McLaren MCL33 nose and front wing
1/19

Photo by: Mark Sutton

A close-up view of the triple-inlet nose being run for the first time this weekend.

McLaren MCL33 nose and front wing

McLaren MCL33 nose and front wing
2/19

Photo by: Mark Sutton

The complex front wing on the MCL33.

McLaren MCL33 technical detail

McLaren MCL33 technical detail
3/19

Photo by: Mark Sutton

A close-up of the new turning vanes adopted by McLaren this weekend. Also note how the narrowing of the nose exposes more of the lower chassis inlets.

McLaren MCL33

McLaren MCL33
4/19

Photo by: Edd Straw

Alonso's MCL33 is painted with flo-viz to check the bargeboards and associated aerodynamic paraphernalia is acting as expected. Also note the inclusion of a new deflector panel, which has sprouted up from the floor’s axe-head.

McLaren MCL33 detail

McLaren MCL33 detail
5/19

Photo by: Giorgio Piola

New deflector panels include a tall, forward element connecting the previous two panel configuration to the floor’s axe-head.

McLaren MCL33 rear detail

McLaren MCL33 rear detail
6/19

Photo by: Giorgio Piola

A close-up of McLaren's new diffuser in Spain which features a revised central section with several perforations.

Haas F1 Team VF-18

Haas F1 Team VF-18
7/19

Photo by: Mark Sutton

Haas mechanics remove the entire halo structure from their car during free practice, note use of a boomerang winglet rather than small vortex generators.

Ferrari SF-71H rear diffuser detail

Ferrari SF-71H rear diffuser detail
8/19

Photo by: Mark Sutton

Ferrari painted flow-viz on the SF71H’s diffuser during Free Practice to ascertain whether the more squared central section scheduled to be used this weekend is working as expected.

Ferrari SF71H with mirrors on halo

Ferrari SF71H with mirrors on halo
9/19

Photo by: Giorgio Piola

The FIA's Charlie Whiting takes an interest in Ferrari's new halo-mounted mirror and winglet solution.

Ferrari SF71H with mirror on halo

Ferrari SF71H with mirror on halo
10/19

A rearward shot of the new halo mounted wing mirror and winglet combo being used by Ferrari this weekend.

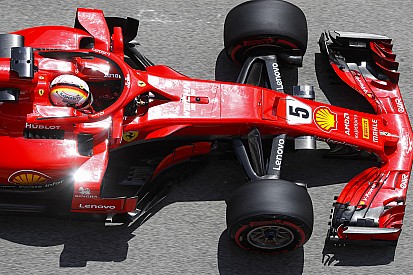

Ferrari SF71H

Ferrari SF71H
11/19

Photo by: Giorgio Piola

An overview of the Ferrari SF71H as it is pushed down the pitlane.

Red Bull Racing RB14

Red Bull Racing RB14
12/19

Photo by: Giorgio Piola

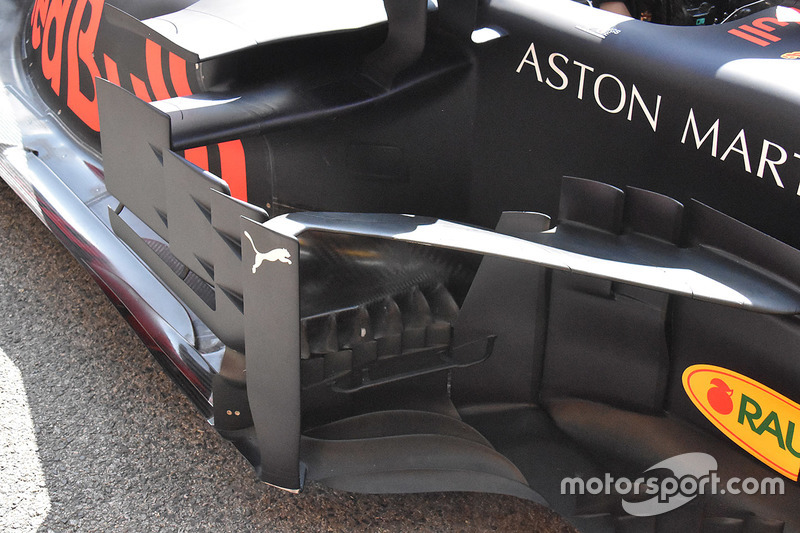

Red Bull’s new slotted bargeboard solution and revised leading floor edge which now features six strakes rather the three.

Red Bull Racing RB14 rear floor

Red Bull Racing RB14 rear floor
13/19

Photo by: Giorgio Piola

Slotted floor ahead of the rear tyre features eight slots and one enclosed hole.

Red Bull Racing RB14 with aero sensors

Red Bull Racing RB14 with aero sensors
14/19

Ricciardo's RB14 with a pair of Kiel probe arrays mounted behind the front wheels, which are used to collect data on the new parts that have been installed this weekend.

Mercedes AMG F1 W09 rear brakes

Mercedes AMG F1 W09 rear brakes
15/19

Photo by: Giorgio Piola

A look at the complexity of the brake duct fins and outer diffuser channel on the W09.

Mercedes-AMG F1 W09 front suspension detail

Mercedes-AMG F1 W09 front suspension detail
16/19

Photo by: Mark Sutton

The W09’s front suspension, note the new vertical fin mounted atop the already raised wishbone akin to the solution used by Sauber since the start of the season.

Williams FW41 steering wheel

Williams FW41 steering wheel
17/19

Photo by: Mark Sutton

Williams’ butterfly-shaped steering wheel which means the display is mounted behind on the dashboard.

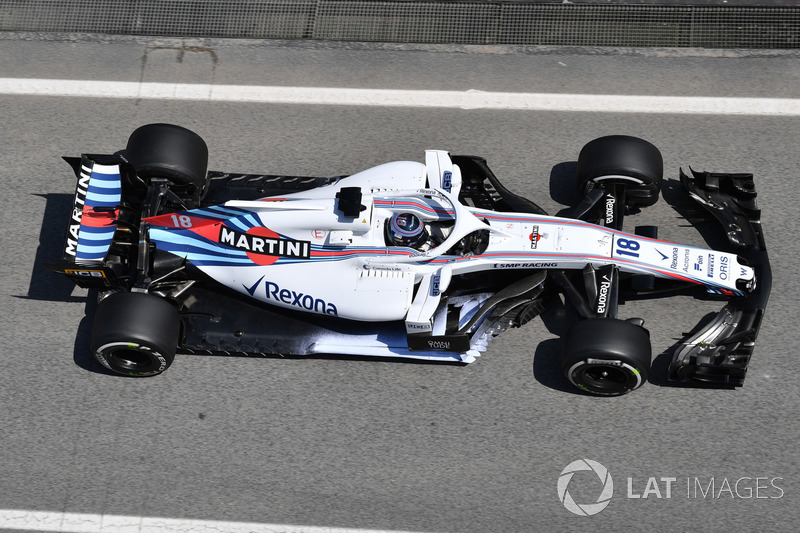

Lance Stroll, Williams FW41

Lance Stroll, Williams FW41
18/19

Flo-viz applied to the floor to ascertain the airflow conditions on that particular section of the car.

Lewis Hamilton, Mercedes-AMG F1 W09

Lewis Hamilton, Mercedes-AMG F1 W09
19/19

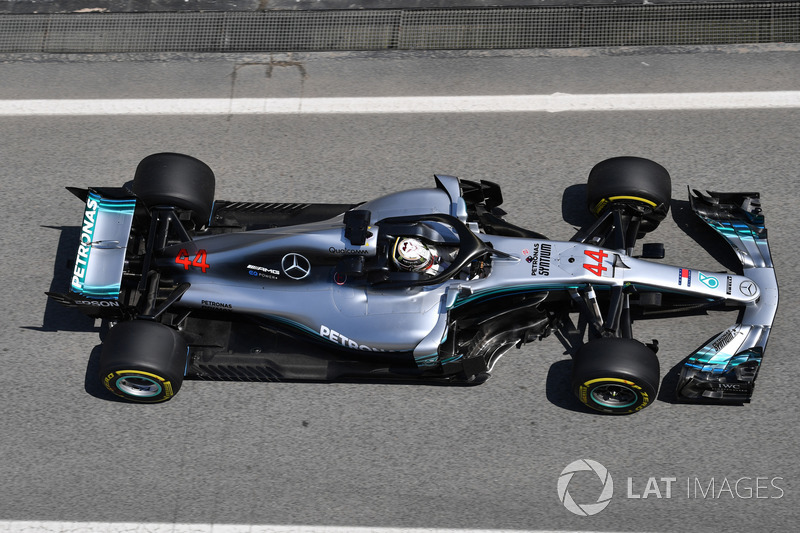

Compare that with an overview of the W09.
