Giorgio Piola's F1 technical analysis

Spanish GP: Latest F1 tech updates, direct from the garages

As Formula 1 returns to Europe, Giorgio Piola and Sutton Images reveal the all-important technical updates on show in the Barcelona pitlane.

McLaren MCL33 nose and front wing

McLaren MCL33 nose and front wing
1/19

A close-up view of the triple-inlet nose being run for the first time this weekend.

Photo by: Mark Sutton

McLaren MCL33 nose and front wing

McLaren MCL33 nose and front wing
2/19

The complex front wing on the MCL33.

Photo by: Mark Sutton

McLaren MCL33 technical detail

McLaren MCL33 technical detail
3/19

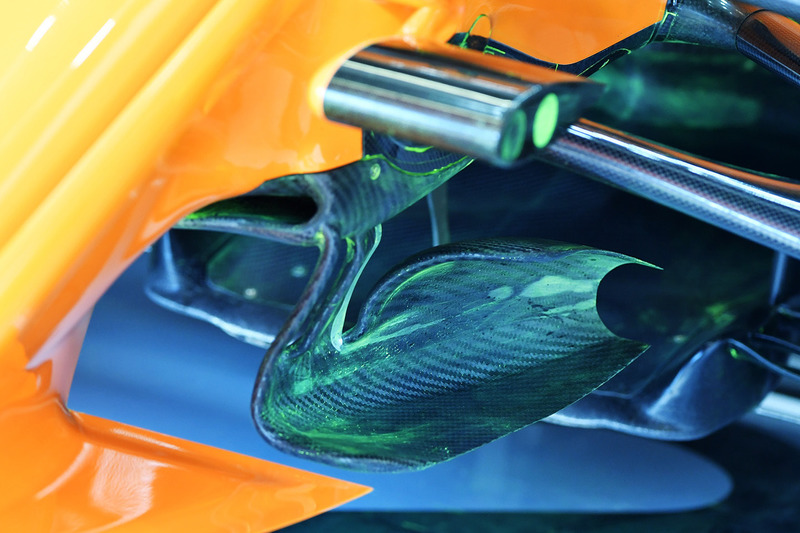

A close-up of the new turning vanes adopted by McLaren this weekend. Also note how the narrowing of the nose exposes more of the lower chassis inlets.

Photo by: Mark Sutton

McLaren MCL33

McLaren MCL33
4/19

Alonso's MCL33 is painted with flo-viz to check the bargeboards and associated aerodynamic paraphernalia is acting as expected. Also note the inclusion of a new deflector panel, which has sprouted up from the floor’s axe-head.

Photo by: Edd Straw

McLaren MCL33 detail

McLaren MCL33 detail
5/19

New deflector panels include a tall, forward element connecting the previous two panel configuration to the floor’s axe-head.

Photo by: Giorgio Piola

McLaren MCL33 rear detail

McLaren MCL33 rear detail
6/19

A close-up of McLaren's new diffuser in Spain which features a revised central section with several perforations.

Photo by: Giorgio Piola

Haas F1 Team VF-18

Haas F1 Team VF-18
7/19

Haas mechanics remove the entire halo structure from their car during free practice, note use of a boomerang winglet rather than small vortex generators.

Photo by: Mark Sutton

Ferrari SF-71H rear diffuser detail

Ferrari SF-71H rear diffuser detail
8/19

Ferrari painted flow-viz on the SF71H’s diffuser during Free Practice to ascertain whether the more squared central section scheduled to be used this weekend is working as expected.

Photo by: Mark Sutton

Ferrari SF71H with mirrors on halo

Ferrari SF71H with mirrors on halo
9/19

The FIA's Charlie Whiting takes an interest in Ferrari's new halo-mounted mirror and winglet solution.

Photo by: Giorgio Piola

Ferrari SF71H with mirror on halo

Ferrari SF71H with mirror on halo
10/19

A rearward shot of the new halo mounted wing mirror and winglet combo being used by Ferrari this weekend.

Ferrari SF71H

Ferrari SF71H
11/19

An overview of the Ferrari SF71H as it is pushed down the pitlane.

Photo by: Giorgio Piola

Red Bull Racing RB14

Red Bull Racing RB14
12/19

Red Bull’s new slotted bargeboard solution and revised leading floor edge which now features six strakes rather the three.

Photo by: Giorgio Piola

Red Bull Racing RB14 rear floor

Red Bull Racing RB14 rear floor
13/19

Slotted floor ahead of the rear tyre features eight slots and one enclosed hole.

Photo by: Giorgio Piola

Red Bull Racing RB14 with aero sensors

Red Bull Racing RB14 with aero sensors
14/19

Ricciardo's RB14 with a pair of Kiel probe arrays mounted behind the front wheels, which are used to collect data on the new parts that have been installed this weekend.

Mercedes AMG F1 W09 rear brakes

Mercedes AMG F1 W09 rear brakes
15/19

A look at the complexity of the brake duct fins and outer diffuser channel on the W09.

Photo by: Giorgio Piola

Mercedes-AMG F1 W09 front suspension detail

Mercedes-AMG F1 W09 front suspension detail
16/19

The W09’s front suspension, note the new vertical fin mounted atop the already raised wishbone akin to the solution used by Sauber since the start of the season.

Photo by: Mark Sutton

Williams FW41 steering wheel

Williams FW41 steering wheel
17/19

Williams’ butterfly-shaped steering wheel which means the display is mounted behind on the dashboard.

Photo by: Mark Sutton

Lance Stroll, Williams FW41

Lance Stroll, Williams FW41
18/19

Flo-viz applied to the floor to ascertain the airflow conditions on that particular section of the car.

Lewis Hamilton, Mercedes-AMG F1 W09

Lewis Hamilton, Mercedes-AMG F1 W09
19/19

Compare that with an overview of the W09.
