How F1's top teams have evolved their brake solutions during 2024
Brake solutions among F1's top teams have also been extensive during 2024
Matt Somerfield
Published: Oct 16, 2024, 11:01 AM
Copy link
Share on Viber
Giorgio Piola's F1 technical analysis
Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content
The changes made to Formula 1's regulations were extensive for 2022. While much of the discussion since their introduction has revolved around the design of the sidepods and how teams have best managed the shift to more powerful floors, there's been plenty of other design aspects that were affected.
These other design aspects have been steadily maturing over that time to improve the overall performance of each machine. One such design feature is the braking system, with several overlapping design disciplines required to extract maximum performance from them.
After all, it's not only about providing optimal mechanical performance, the brake ducting also needs to provide enough cooling to support it, while also limiting the aerodynamic impact it has on surfaces.
Furthermore, the thermal interaction between the brakes and wheel rim has an impact on both the performance and degradation of the tyres, as the bulk temperature of the tyre can be affected by the transfer of heat between them.
As you'd expect, the general approach taken by the teams is the same, as they're all constrained by the same regulations, but there's more than enough scope left over for each team to have their own design DNA, with various solutions emerging even a few seasons on from the inception of these regulations.
And, to recap, the changes made for 2022 were primarily about controlling how heat and airflow escape the assembly, with teams using various design tactics in the previous regulatory era to improve the passage of flow around the wheel assembly.
This included items such as blown axles and crossover pipework within the brake duct assembly that served primarily as a means to improve its aerodynamic output, rather than being required as a means to cool the braking system.
Red Bull Racing RB18 extra brake cooling detail
Photo by: Giorgio Piola
To prohibit these aerodynamic solutions, the regulations no longer permit airflow to escape out of the brake duct's outer face and out through the wheel rim. Instead, there's a designated region on the brake duct's end fence where the hot air is ejected (see the solution on the RB18, above).
This has led to teams creating multiple layers within their brake duct assembly in order that the airflow and heat can be better managed before being expelled from the system.

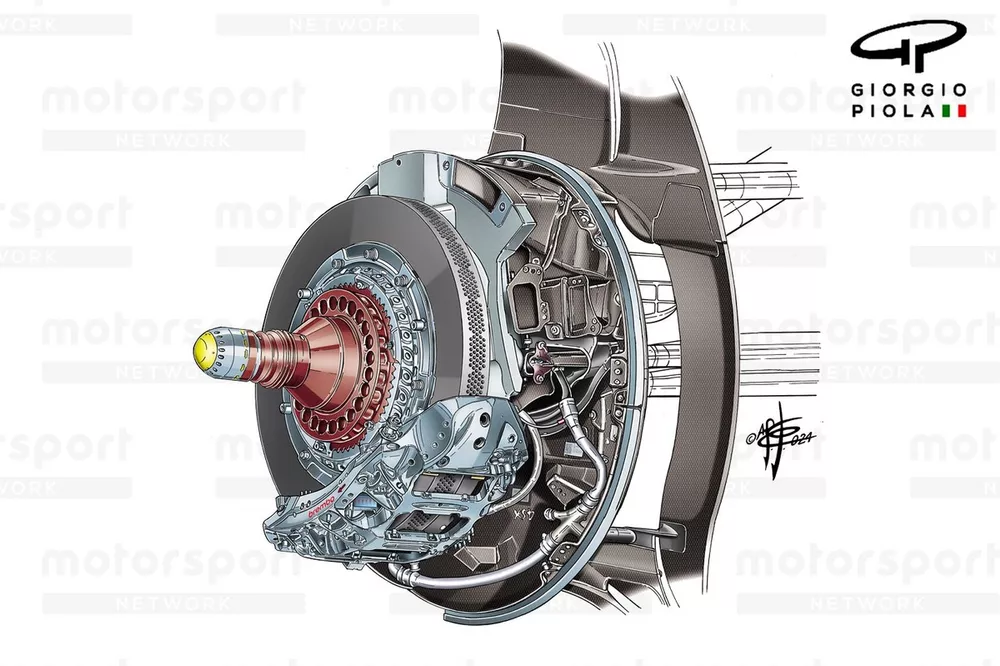

This nesting system usually consists of pipework that delivers cool air to the calliper and delivers it to the outlet after it has cooled the calliper, at least one internal drum, with various contours to baffle the airflow's trajectory and a final external drum, which unlike in the past mustn't have any holes or apertures with which to transfer airflow or heat to the external air stream.
Comparing the pipework delivering cool air to the calliper on the McLaren and Mercedes, for example, provides insight into the differing design conventions, with Mercedes selecting a more traditional short, single tract between the inlet and calliper, whilst McLaren has opted for an arrangement with two channels, feeding each side of the calliper independently.
And, while it has become common for teams to enclose the brake disc within its own fairing during this regulation set, to help better manage heat as it dissipates, some of the teams have now created windows within the fairing and the inner drum to allow passage for some of the heat being generated to find its way between the various stages of the nest.
As can be seen here, both Mercedes and Red Bull have designs with those features, albeit very different in their approach, as the former has opted for small elliptical apertures on the upper surface and outboard face of the inner drum.
Meanwhile, Red Bull has opted for a larger window, which is surrounded by a metal insert that will likely act as a heatsink too.
As you'd expect, there's still plenty of performance to be found from changes here too, given it's a performance intersection between numerous design fields. Teams are constantly updating the size of their inlet and outlet scoops to suit the given circuit's characteristics, while also finding ways to better manage the airflow and heat internally to leverage the heat exchange from the brakes to the tyres, via the wheel rims.
