How F1 teams responded to Monza’s unique speed demands

shares
comments
How F1 teams responded to Monza’s unique speed demands
Giorgio Piola
By: Giorgio Piola
Co-author: Matthew Somerfield
Sep 7, 2018, 11:57 AM

The Italian Grand Prix always throws up a unique challenge for teams, with the long flat-out straights at Monza forcing teams to think more about drag levels and trimming the downforce off than they would at other venues.

Straightline speed performance is essential, even if it means that life can be a bit tricky through the chicanes.

It sets the scene for the most outrageously low downforce rear wings you’ll see all season. In fact, for the most part, they’re designed specifically for the famed ‘temple of speed’ and instantly become obsolete after the race.

Dueling duo

Punching a hole in the air is a much easier task for the leading Mercedes and Ferrari teams, due to their extremely potent powerunits.

So whilst they both sported ‘skinnier’ wings for the Italian GP, their designs were not as extreme as some of the other teams. In fact both teams opted for a more aggressive variation of the wing used in Belgium, with Ferrari favouring a more traditional flat design, whilst Mercedes utilised a ‘spoon’ style wing.

Mercedes W09 rear wing comparison

Mercedes W09 rear wing comparison

Photo by: Manuel Goria / Sutton Images

Although Mercedes tested two different specification of wings in Belgium, in the end it opted for its lower downforce variant, paired with their usual T-Wing configuration (red arrow).

For Monza a similar rear wing configuration was selected, albeit without the Gurney flap on the trailing edge (white arrow). To boost straight line speed the T-Wing was discarded entirely.



Ferrari SF71H rear wing, Belgian GP

Ferrari SF71H rear wing, Belgian GP

Photo by: Giorgio Piola

Like Mercedes, Ferrari made only small alterations to its rear wing at its home grand prix, but to rub salt in wounds it was able to retain its T-Wing, hopefully providing its drivers with more downforce and confidence for the likes of Parabolica.



Mercedes W09 front wing comparison

Mercedes W09 front wing comparison

Photo by: Giorgio Piola

What comes off one end of the car generally needs to be balanced at the other too, and given cars don’t need to be ‘on the nose’ in quite the same way as they would for the second sector at Spa, both teams made concessions in this regard for Monza.

As we can see, Mercedes gave the trailing edge of its upper flap a haircut (red arrow) when compared with Spa (inset). This is a tactic employed by the teams when the angle of the wing is already close, if not at, its operating limit.

Mercedes F1 W09 bargeboard, Monza GP

Mercedes F1 W09 bargeboard, Monza GP

Photo by: Giorgio Piola

Interestingly Mercedes also made some improvements to its floor too, altering the shape of the axehead that flanks the car (blue arrow).

Also, the slotted splitter section (red arrow) has been optimised further, with corresponding slots having to be made in the chassis canard above (white arrow) to comply with the regulations.

A low blow

Red Bull’s weaknesses are exposed at high speed circuits, such as Spa and Monza, and so the team reluctantly has to make amends for its powerunit deficit by relinquishing some of its aerodynamic performance.

A superior ability to generate downforce from the underfloor and diffuser have always allowed it to skew its rear wing offering when compared with the lead duo, but over the last two races it’s been even more extreme.

The wing is so shallow that the placement of louvres in the upper leading corner of the endplate are considered irrelevant.

And whilst the wing already appeared to be extremely flat in Spa, the designers went that extra mile for Monza, reducing the angle of attack further and sweeping the outer leading edge of the mainplane backward.

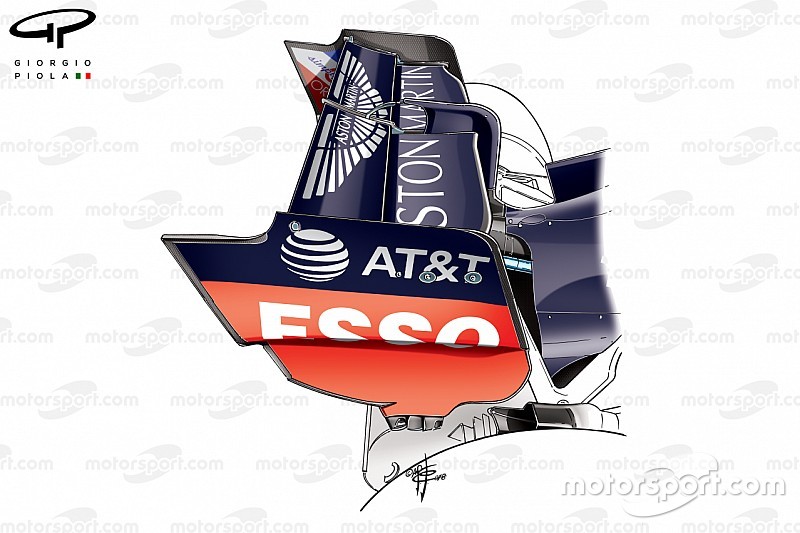

Red Bull RB14 rear wing, Monza GP

Red Bull RB14 rear wing, Monza GP

Photo by: Giorgio Piola
