Gallery: Key F1 tech shots at Mexican GP

The nose and front wing detail of Fernando Alonso, McLaren MCL32

1/30

A glimpse of the new front wing introduced by McLaren and raced by Fernando Alonso at the last round in Austin.

Photo by: Sutton Images

Ferrari SF70H chassis detail in the garage

2/30

A peek inside Ferrari's garage as the SF70H is prepared for track action.

Photo by: Sutton Images

Scuderia Toro Rosso STR12 rear

3/30

In this shot of the installation of the Renault power unit, note the slanted oil coolers mounted either side of the ICE and fed by an inverted Y-shaped piece of ductwork.

Photo by: Giorgio Piola

Renault Sport F1 Team RS17 diffuser

4/30

A close-up of the new diffuser introduced by Renault in Austin. You'll note that the team has followed a growing trend of creating a compartmentalised outer section, made up of various perforated surfaces emanating from the outer Gurney trims. There's a new solution from Renault though - a shovel winglet (arrowed) droops down over the back of this section and is used to pick up the airflow.

Photo by: Giorgio Piola

Renault Sport F1 Team RS17 rear

5/30

In order to entice more airflow out of the rear cooling outlet, Renault has added a Gurney trim to the trailing edge of the engine cover (arrowed).

Photo by: Giorgio Piola

Force India turning vane

6/30

Force India has a suit of updates, which includes this vertical sidepod deflector that has a metal rod attached to the sidepod to increase rigidity.

Photo by: Giorgio Piola

Red Bull Racing RB13 front assembly detail

7/30

Note how the front brake disc is exposed in order to displace the heat generated under braking.

Photo by: Giorgio Piola

Red Bull Racing RB13 rear

8/30

Red Bull with a high-downforce set-up to help overcome the losses associated with the extreme altitude at this circuit. As part of that, the high-downforce T-wing is back in use.

Photo by: Giorgio Piola

The steering wheel and cockpit detail of Sauber C36

9/30

The louvred panel alongside the C36's cockpit dissipates heat generated from within the sidepod.

Photo by: Sutton Images

Sahara Force India VJM10 front wing detail

10/30

Force India's front wing has various appendages mounted to the endplate, tasked with controlling the wake shed by the front wheel behind.

Sahara Force India VJM10 rear wing detail

11/30

Force India's high-downforce rear wing, supplemented by the two-tier monkey seat introduced a few races ago.

Mercedes-Benz F1 W08 nose and front wing

12/30

The front wing used by Mercedes is complete with the revised mainplane, which features an upturned leading edge.

McLaren MCL32 front wing detail

13/30

A close-up of the outboard section of the new front wing raced by Fernando Alonso in Austin. It features extra slots in the outermost part and a revision to the shape of the inner endplate canards.

Photo by: Giorgio Piola

Red Bull Racing RB13 in the garage

14/30

Mercedes-Benz F1 W08 front wing detail

15/30

Renault Sport F1 Team RS17 bargeboard detail

16/30

Renault's new bargeboards are being trialled once more in Mexico, having been run briefly in Austin.

Sahara Force India VJM10 front wing detail

17/30

This fascinating view of the VJM10’s front wing from behind shows just how the flared outer tunnel is shaped in order to manipulate the airflow ahead of the front tyre.

Sahara Force India VJM10 steering wheel

18/30

Sahara Force India VJM10 rear wing detail

19/30

Force India's tri-element T-wing, which also features slots in the leading edge of each element.

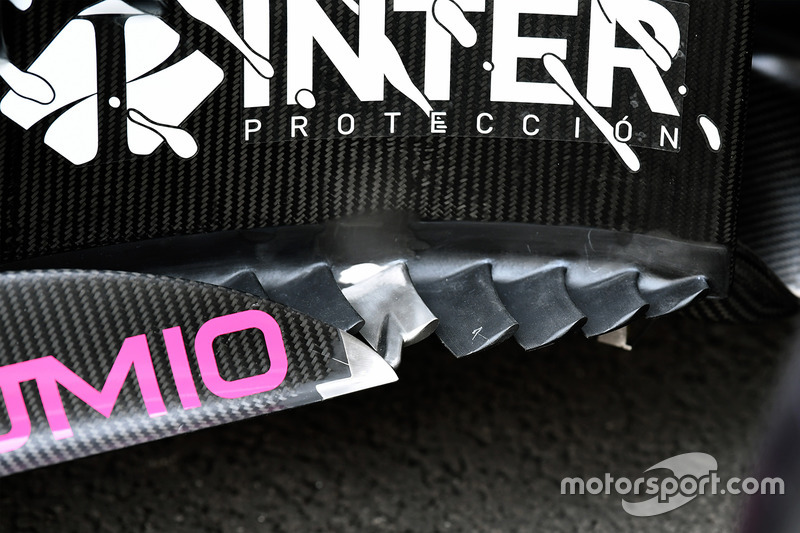

Sahara Force India VJM10 aero detail

20/30

A close-up of the serrated bargeboard footplate on the VJM10.

Sahara Force India VJM10 bargeboard detail

21/30

Force India has introduced a new bargeboard, floor and sidepod deflector package in Mexico. Note the merged floor axehead and pre-bargeboard, which is now arched rather than having a straight edge. The vertical serrations now have a much more aggressively curved leading edge, while the introduction of the deflector means that there is one less section at the rear

Sahara Force India VJM10 aero detail

22/30

The swept cockpit canards on the VJM10.

Sahara Force India VJM10 aero detail

23/30

An extreme close-up of the new floor strakes added to the upwardly curved leading edge of the floor as part of the overall upgrade. It’s worth noting these are a solution first seen on the Mercedes - but one that's also featured on the Red Bull since.

Sahara Force India VJM10 aero detail

24/30

The serrated footplate on the VJM10’s turning vanes.

Sahara Force India VJM10 aero detail

25/30

Another view of the VJM10’s new floor, sidepod deflector and bargeboard update introduced in Mexico.

Photo by: Giorgio Piola

Ferrari SF70H bodywork

26/30

The floating axehead and sidepod deflector used by Ferrari.

Photo by: Giorgio Piola

Renault Sport F1 Team RS17 detail

27/30

A top-down view of the new bargeboards first trialled by Renault in Austin.

Photo by: Giorgio Piola

Mercedes-Benz F1 W08 bodywork detail

28/30

Note the enlarged cooling capacity in play for Mercedes, with the cooling panel at maximum and a pair of additional vertical slits placed in the panel.

Photo by: Giorgio Piola

McLaren MCL32 rear

29/30

Photo by: Giorgio Piola

Stoffel Vandoorne, McLaren MCL32

30/30

Kiel probe arrays are mounted around the airbox on Stoffel Vandoorne’s MCL32 in this image, as McLaren evaluates the aerodynamic implications of the Halo cockpit protection device.

Photo by: Sutton Images
