Gallery: Key F1 tech shots at Malaysian GP
Matt Somerfield
By: Matt Somerfield
Sep 29, 2017, 8:06 AM

A selection of the best technical images from Malaysia courtesy of Giorgio Piola, Sutton Images and LAT images.

Slider
List

Mercedes AMG F1 W08, detail

Mercedes AMG F1 W08, detail
1/32

Photo by: Giorgio Piola

Mercedes has revised its nose ‘cape’ in Malaysia, widening the leading edge of the surface in order to change its initial influence on the airflow.

Mercedes AMG F1 W08, nose

Mercedes AMG F1 W08, nose
2/32

Photo by: Giorgio Piola

Fernando Alonso, McLaren MCL32

Fernando Alonso, McLaren MCL32
3/32

Photo by: Sutton Images

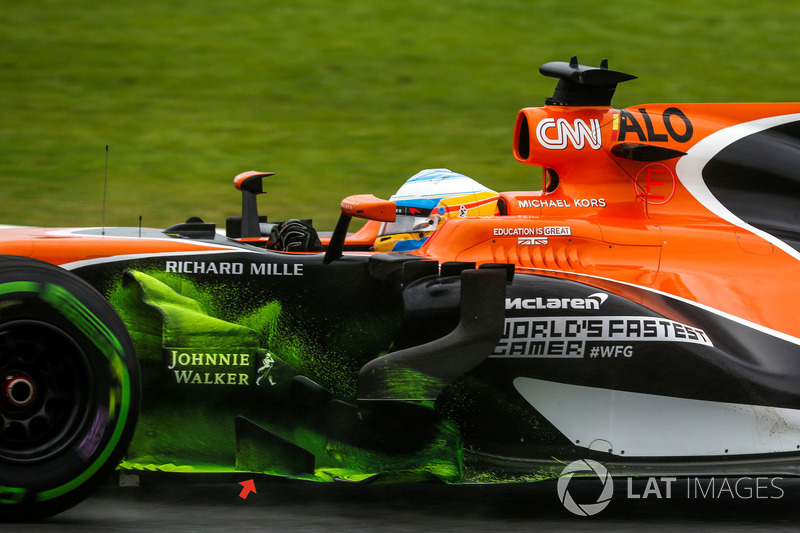

The McLaren MCL32 with flo-viz applied to ascertain whether the new bargeboard configuration is providing the same performance in the real world as it did in CFD and the wind tunnel. The new pre-bargeboard added for Malaysia is arrowed.

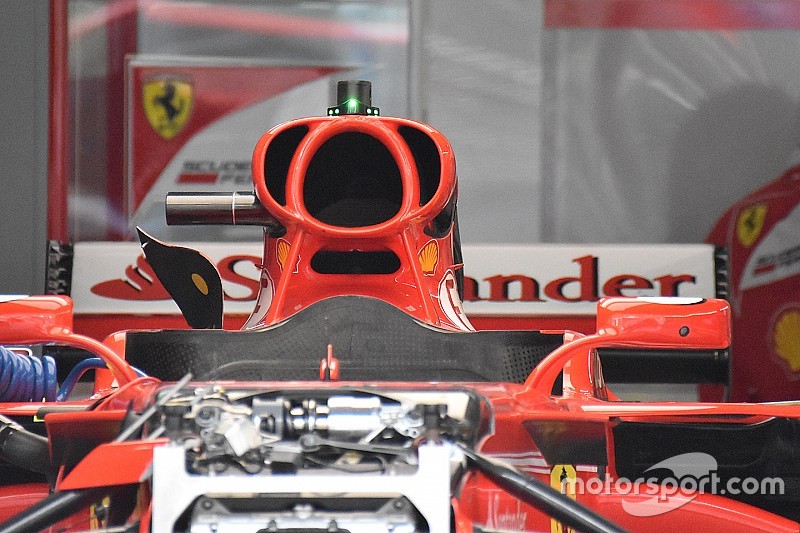

Ferrari intake detail

Ferrari intake detail
4/32

Photo by: Giorgio Piola

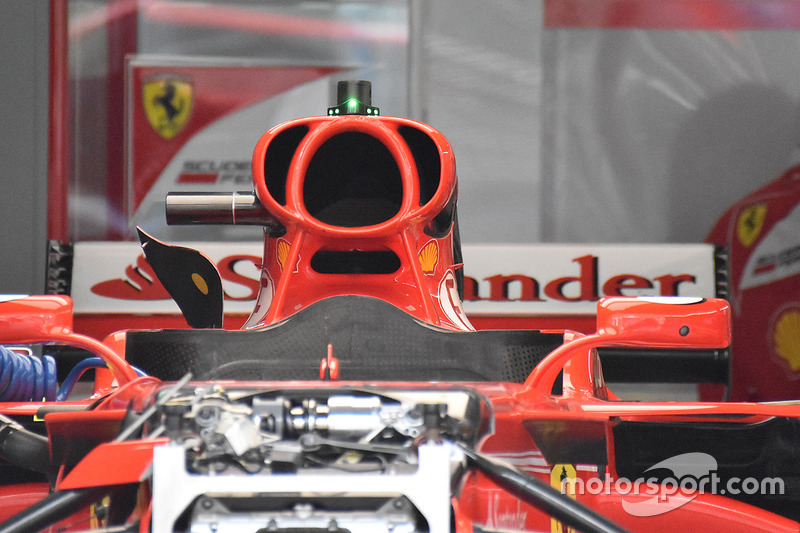

Ferrari has bonded two new inlets to the side of the airbox in Malaysia, similar to what we've seen the likes of Mercedes and Lotus do in the past. This increases cooling capacity for ancillary coolers such as the gearbox and ERS.

Ferrari intake detail

Ferrari intake detail
5/32

Photo by: Giorgio Piola

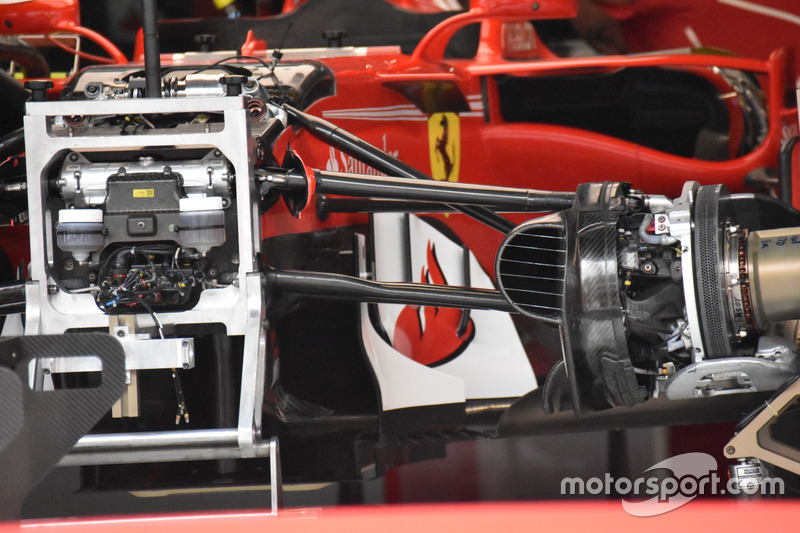

Ferrari SF70H front suspension and chassis detail

Ferrari SF70H front suspension and chassis detail
6/32

Photo by: Giorgio Piola

A forward shot of Ferrari's new bargeboard and boomerang-shaped pre-bargeboard.

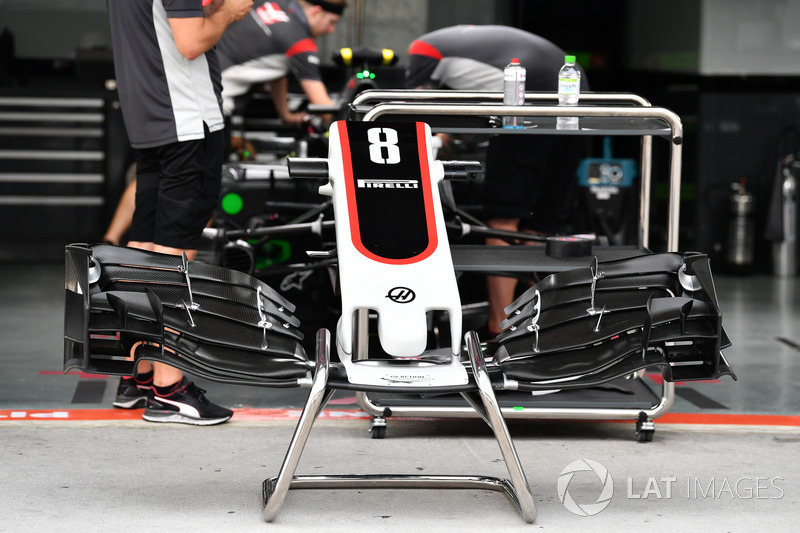

Haas F1 Team VF-17 nose and front wing

Haas F1 Team VF-17 nose and front wing
7/32

Photo by: Sutton Images

A detailed shot of the VF-17's nose and front wing, featuring short, blockier flap tips.

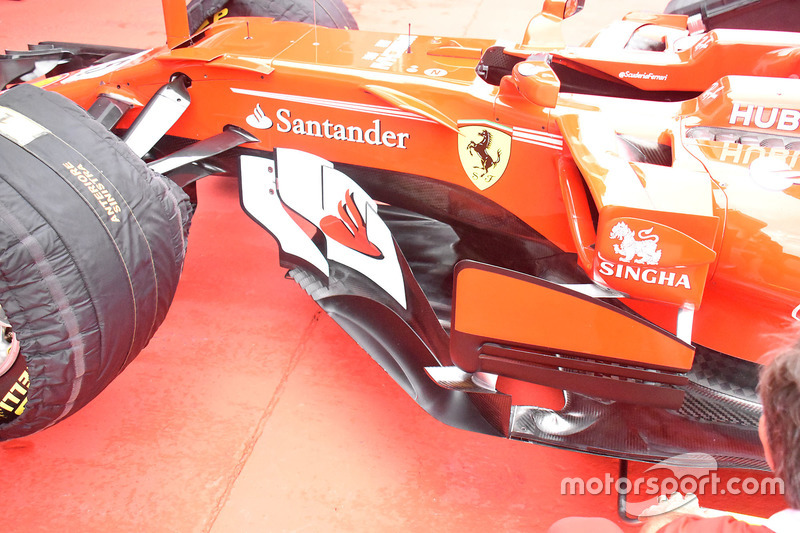

Ferrari Ferrari SF70H, side

Ferrari Ferrari SF70H, side
8/32

Photo by: Giorgio Piola

Ferrari SF70H rear

Ferrari SF70H rear
9/32

Photo by: Giorgio Piola

Renault Sport F1 Team RS17 nose and front wings

Renault Sport F1 Team RS17 nose and front wings
10/32

Photo by: Sutton Images

Two specifications of front wing available to Renault in Sepang, with different upper flap tips.

Williams FW40 side detail

Williams FW40 side detail
11/32

Photo by: Giorgio Piola

Williams FW40, side

Williams FW40, side
12/32

Photo by: Giorgio Piola

A look at Williams' revised deflectors, introduced in Singapore, and the pre-existing bargeboard configuration that has run for some races now.

Williams detail front wing

Williams detail front wing
13/32

Photo by: Giorgio Piola

Scuderia Toro Rosso STR12 nosecones

Scuderia Toro Rosso STR12 nosecones
14/32

Photo by: Giorgio Piola

Toro Rosso arrived in Malaysia with a package of upgrades for the STR12, chasing a strong finish to its season. The nose of the car has been reshaped to help incorporate the longer and more complex front wing pillars (white arrows), which is allied to changes made to the front wing. These changes include the separation of the main cascade's outer endplate into two surfaces (red arrows), the introduction of an endplate canard (yellow arrow), a revised shaping to the endplate, which includes the removal of the trailing edge notch (green arrow) and a total revision of the mainplane's shape, including the position and shape of the arch (highlighted in yellow).

Red Bull Racing RB13 front wheel hub detail

Red Bull Racing RB13 front wheel hub detail
15/32

Photo by: Sutton Images

A nice view of Red Bull’s front brake assembly, sans cake tin, while the car is being constructed.

Mercedes-Benz F1 W08 engine cover and bodywork

Mercedes-Benz F1 W08 engine cover and bodywork
16/32

Photo by: Sutton Images

Mercedes seems set to run the elongated shark fin cover it had first used in Singapore.

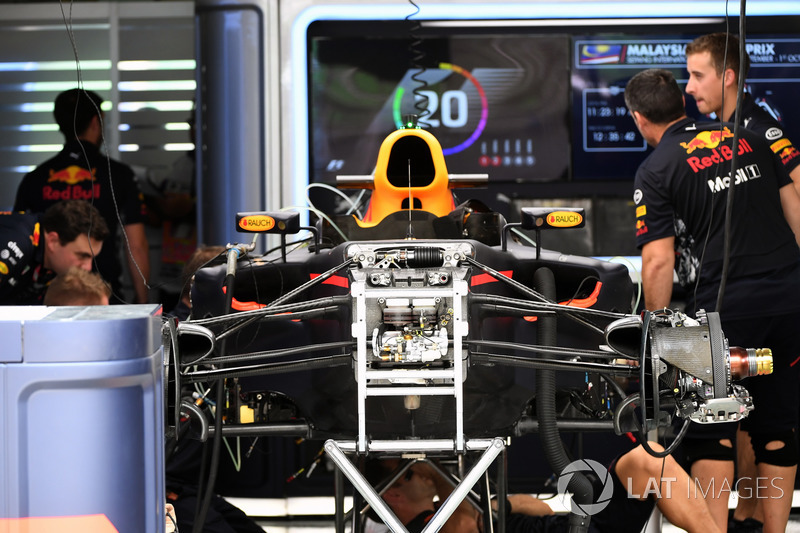

Red Bull Racing RB13 front suspension

Red Bull Racing RB13 front suspension
17/32

Photo by: Sutton Images

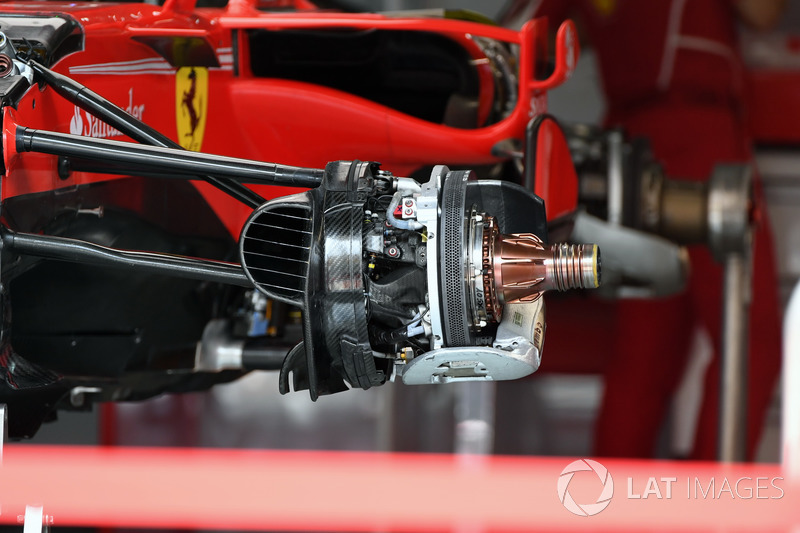

Ferrari SF70H front brake and wheel hub detail

Ferrari SF70H front brake and wheel hub detail
18/32

Photo by: Sutton Images

Sahara Force India VJM10 bargeboard and aero detail

Sahara Force India VJM10 bargeboard and aero detail
19/32

Photo by: Sutton Images

This Force India bargeboard configuration was introduced in Hungary and is expected to be revised again in Malaysia.

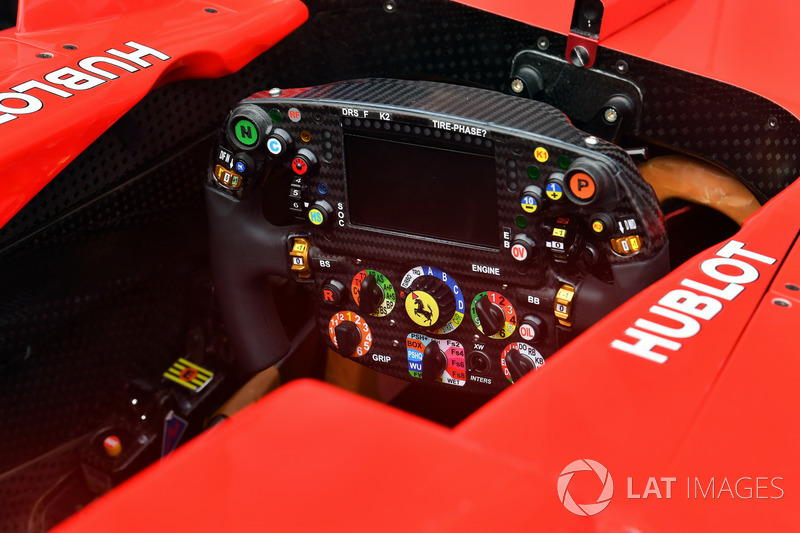

Ferrari SF70H steering wheel

Ferrari SF70H steering wheel
20/32

Photo by: Sutton Images

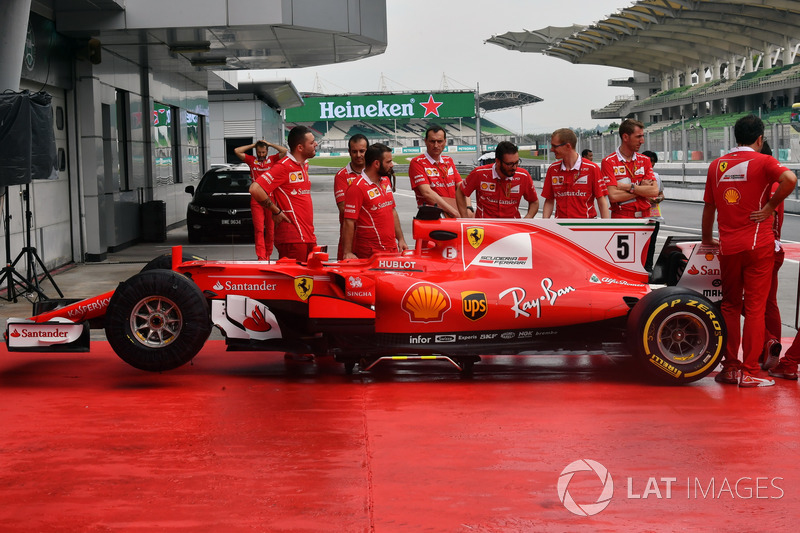

Ferrari SF70H in pitlane

Ferrari SF70H in pitlane
21/32

Photo by: Sutton Images

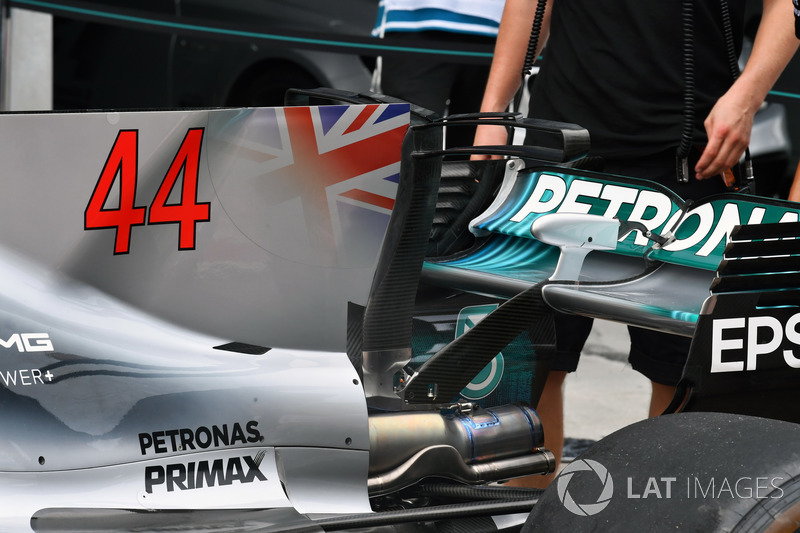

Mercedes-Benz F1 W08 rear wing and aero detail

Mercedes-Benz F1 W08 rear wing and aero detail
22/32

Photo by: Sutton Images

A rear end shot of the W08 without the upper cooling cowling in place shows not only the detail of the team's rear wing and T-wing mounting pillars but also the squashed wastegate pipework.

Mercedes-Benz F1 W08 front brake and wheel hub detail

Mercedes-Benz F1 W08 front brake and wheel hub detail
23/32

Photo by: Sutton Images

The inner detail of the front brake assembly is exposed in this image, as the cake tin has yet to be added.

Ferrari SF70H front suspension detail

Ferrari SF70H front suspension detail
24/32

Photo by: Sutton Images

Red Bull Racing mechanic works on the RB13's front wheel hub

Red Bull Racing mechanic works on the RB13's front wheel hub
25/32

Photo by: Sutton Images

Sahara Force India VJM10 nose and front wing detail

Sahara Force India VJM10 nose and front wing detail
26/32

Photo by: Sutton Images

Seemingly shipped direct from the last race, this nosecone bears the scars of action and will be thoroughly cleaned again before use.

Scuderia Toro Rosso mechanics, Scuderia Toro Rosso STR12 in pitlane

Scuderia Toro Rosso mechanics, Scuderia Toro Rosso STR12 in pitlane
27/32

Photo by: Sutton Images

The revised STR12 - featuring new bargeboards, sidepod deflectors an T-wing - is pushed through the pitlane.

Sahara Force India F1 VJM10 rear detail

Sahara Force India F1 VJM10 rear detail
28/32

Photo by: Giorgio Piola

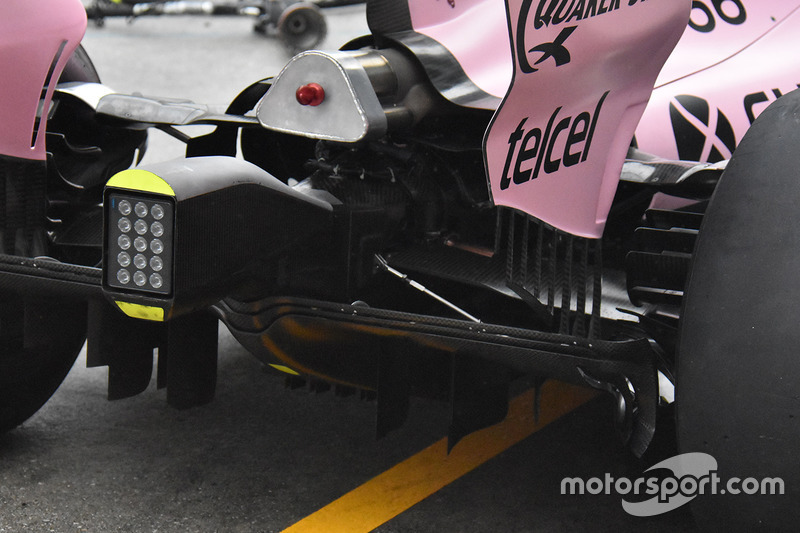

Force India has arrived in Malaysia with a revised diffuser. The outer sections now resemble the layout used by Red Bull, with a curved outer wall punctuated by several serrations. Meanwhile, the central ramped section has been compacted. Both will have a substantial effect on the airflow's behaviour.

McLaren MCL32 nose detail

McLaren MCL32 nose detail
29/32

Photo by: Giorgio Piola

Mercedes AMG F1 W08 floor detail

Mercedes AMG F1 W08 floor detail
30/32

Photo by: Giorgio Piola

A look at the longitudinal floor slot used by the team since the start of the season.

Scuderia Toro Rosso STR12 T-wing

Scuderia Toro Rosso STR12 T-wing
31/32

Photo by: Giorgio Piola

A revised two-tier coathanger-style T-wing, with two slots in each surface, is being employed by Toro Rosso in Malaysia.

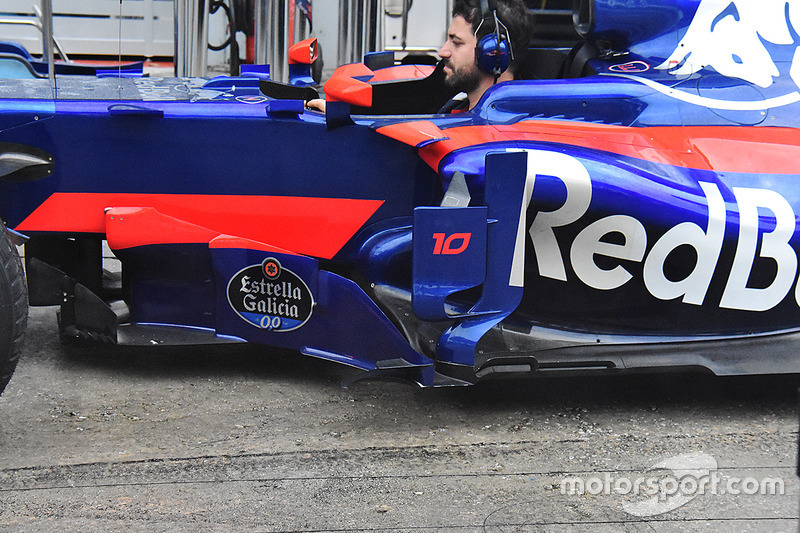

Scuderia Toro Rosso STR12

Scuderia Toro Rosso STR12
32/32

Photo by: Giorgio Piola

Toro Rosso’s revised pre-bargeboard, floating axehead and sidepod deflectors, which are part of a package of upgrades bought by the team to Malaysia.
