As Formula 1 returns to France this weekend, Giorgio Piola and Sutton Images reveal the all-important technical updates on show in the Paul Ricard pitlane.

Slider
List

Renault Sport F1 Team RS 18 rear end

Renault Sport F1 Team RS 18 rear end
1/17

Photo by: Giorgio Piola

A look at the recent changes made to Renault’s rear wing endplates, which now feature a design akin to one used by McLaren for some time.

Mercedes AMG F1 W09 brakes

Mercedes AMG F1 W09 brakes
2/17

Photo by: Giorgio Piola

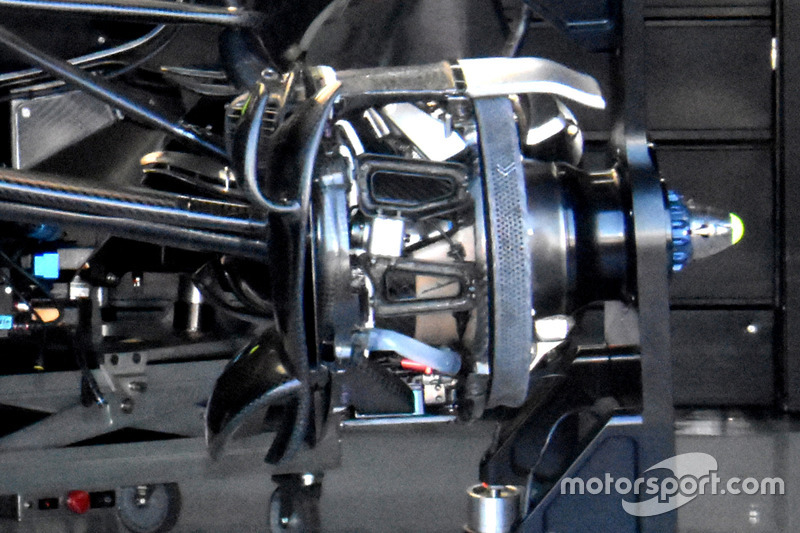

Mercedes’ front brake assembly before the brake drum has been installed. The team has revised the horizontal winglet, lengthening it and dividing it into two surfaces bridged by metal stiffeners.

Renault Sport F1 Team RS 18 sidepods

Renault Sport F1 Team RS 18 sidepods
3/17

Photo by: Giorgio Piola

Introduced in Canada the bargeboards mounted on Renault’s RS18 feature curved surfaces to the vertical elements, with the forward-most of those now arching over to meet the chassis, creating a down facing winglet akin to McLaren.

Ferrari SF71H detail

Ferrari SF71H detail
4/17

Photo by: Giorgio Piola

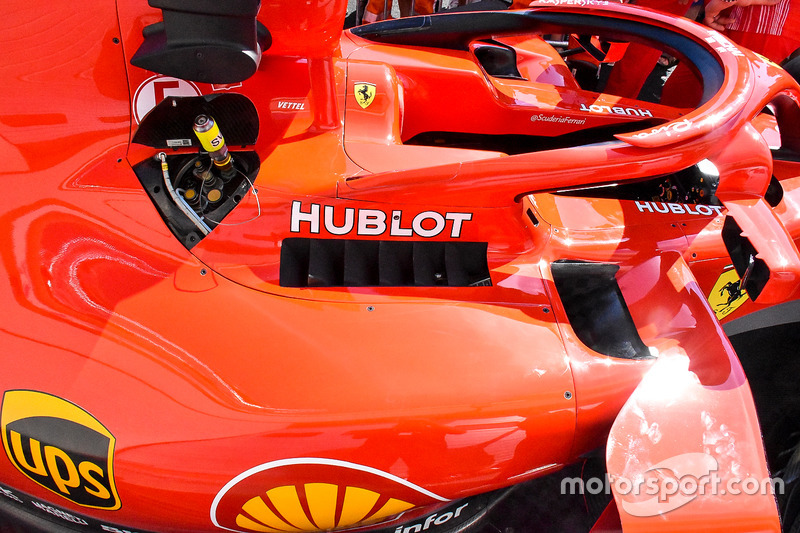

A look over the SF71H’s sidepod shows the level of cooling alongside the cockpit that’s likely to be used this weekend.

Ferrari SF71H brake duct

Ferrari SF71H brake duct
5/17

Photo by: Giorgio Piola

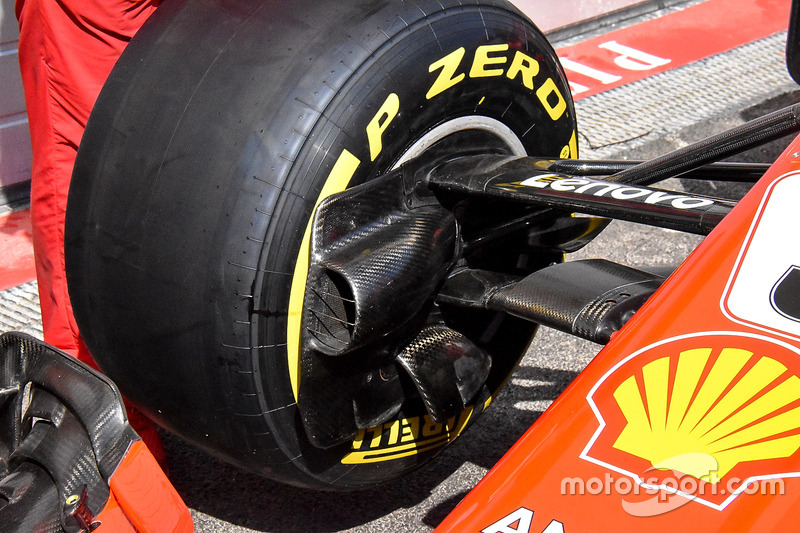

Ferrari’s front brake duct, the large scoop also powers the blown axle.

Mercedes AMG F1 W09 detail

Mercedes AMG F1 W09 detail
6/17

Photo by: Giorgio Piola

The Mercedes features a cooling blank off panel on the cockpit shoulder outlet as the team balance the needs of cooling and aerodynamic efficiency.

Force India VJM11 detail

Force India VJM11 detail
7/17

Photo by: Giorgio Piola

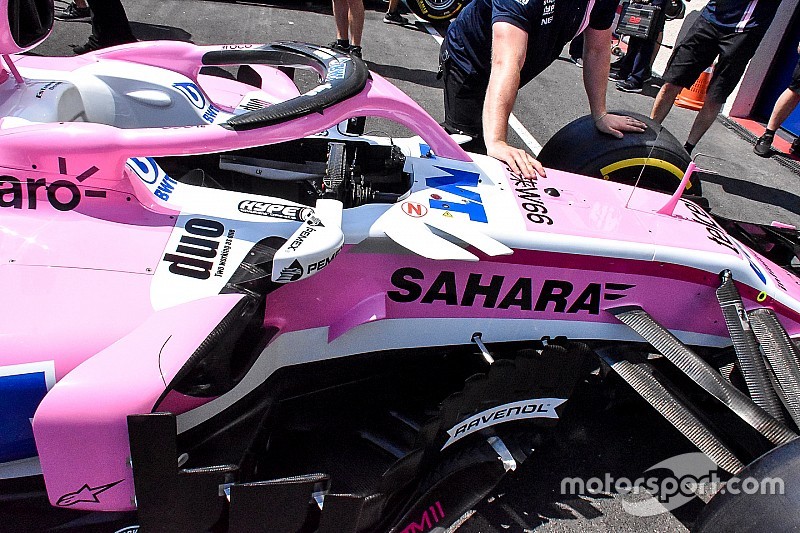

Force India has added an aggressively downturned winglet on the side of the chassis just ahead of the sidepod (left of the Sahara logo), as they look to improve cooling and aerodynamic efficiency.

Mercedes AMG F1 W09 detail

Mercedes AMG F1 W09 detail
8/17

Photo by: Giorgio Piola

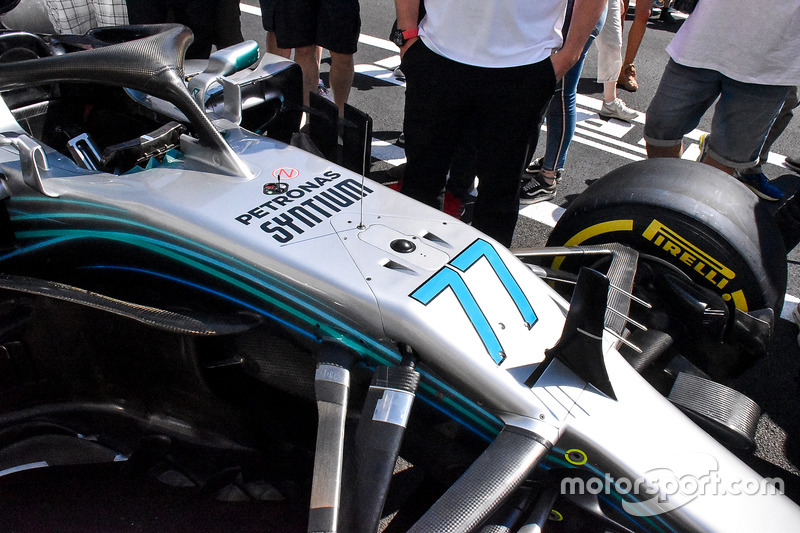

Two small NACA-style ducts have been included in the W09’s vanity panel this weekend, as Mercedes look to improve cooling to the cockpit for their drivers' comfort.

Haas F1 Team VF-18 Ferrari engine

Haas F1 Team VF-18 Ferrari engine
9/17

Photo by: Giorgio Piola

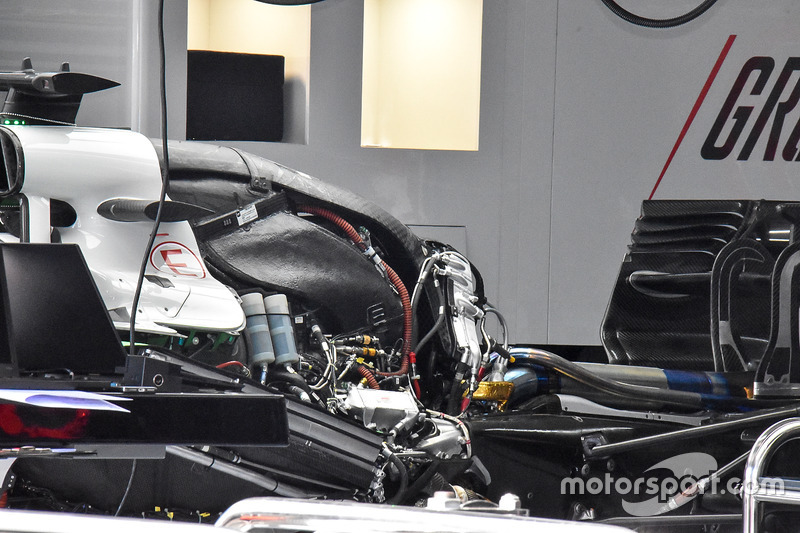

A look at the Ferrari power unit installed in the rear of Romain Grosjean’s VF18.

Force India VJM11 engine

Force India VJM11 engine
10/17

Photo by: Giorgio Piola

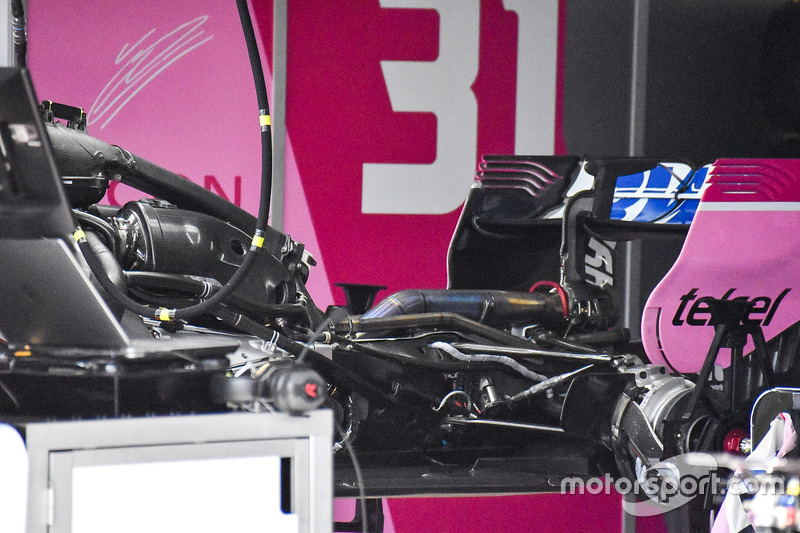

Mercedes HPP plans to run a new specification of power unit in the works and customer teams cars this weekend. Here’s how Force India install its unit and associated ancillaries.

Ferrari SF71H front brake and wheel hub

Ferrari SF71H front brake and wheel hub
11/17

Photo by: Giorgio Piola

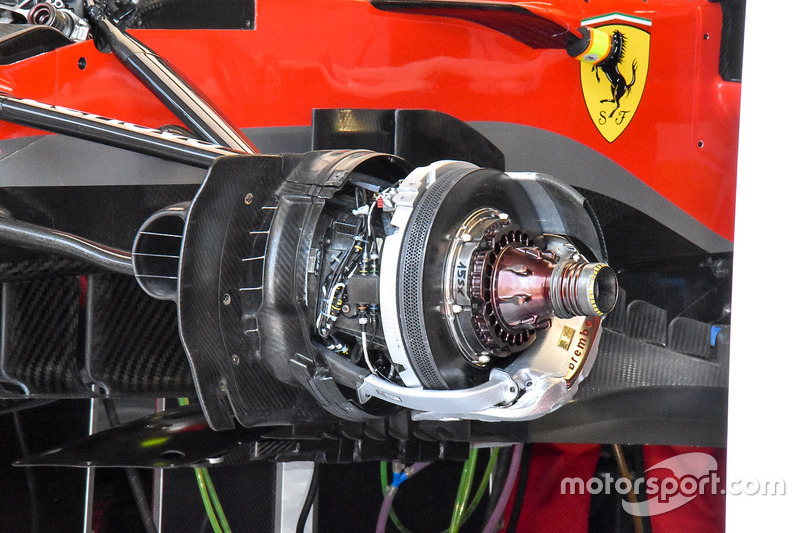

A look at Ferrari’s front brake duct without the cake tin applied.

McLaren MCL33 nose and front wing

McLaren MCL33 nose and front wing
12/17

Photo by: Mark Sutton

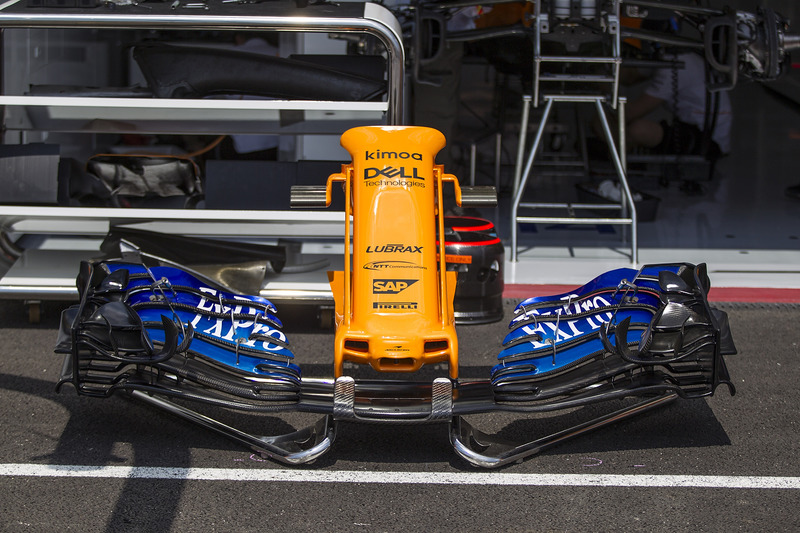

An overview of McLaren’s nose, which was introduced a few races ago.

McLaren MCL33 front brake and wheel hub detail

McLaren MCL33 front brake and wheel hub detail
13/17

Photo by: Mark Sutton

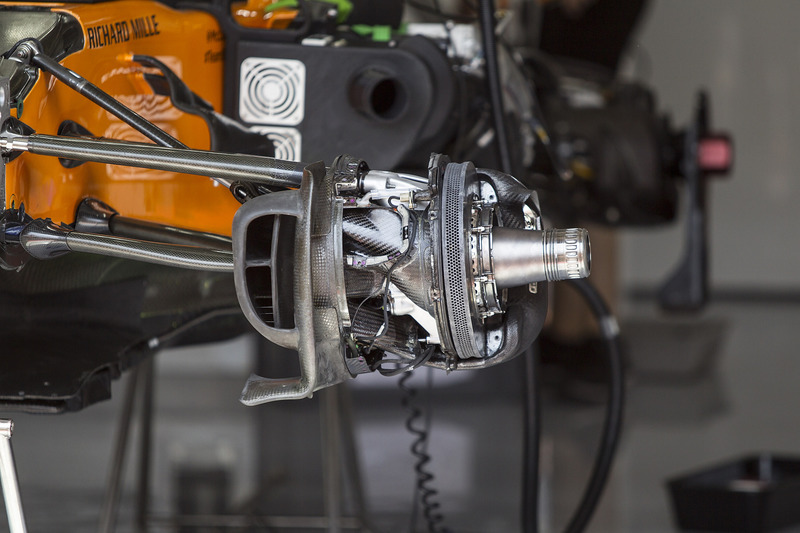

A close up of McLaren’s front brake duct without the cake tin attached.

Sauber C37 side boards

Sauber C37 side boards
14/17

Photo by: Giorgio Piola

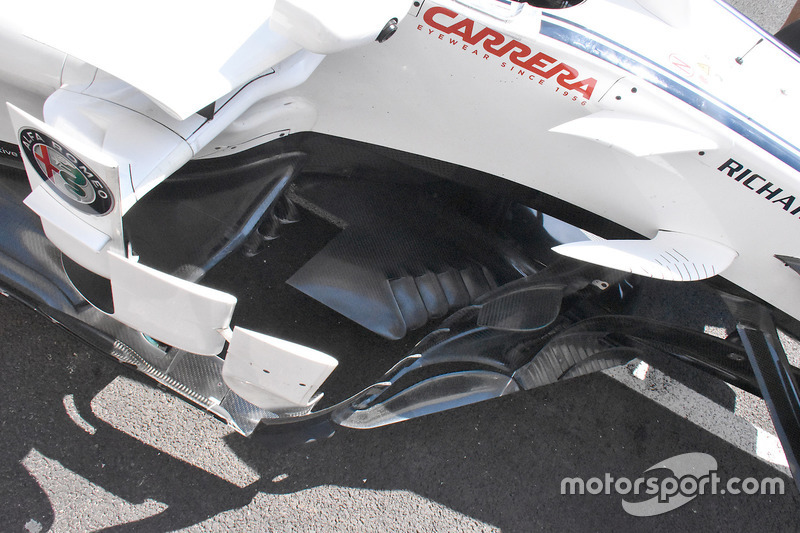

Sauber has updated the area ahead of the sidepods in recent races, and this shot gives a great view of the slotted splitter extension. Also note the three strakes on the leading edge of the floor.

Ferrari SF71H front wing detail

Ferrari SF71H front wing detail
15/17

Photo by: Mark Sutton

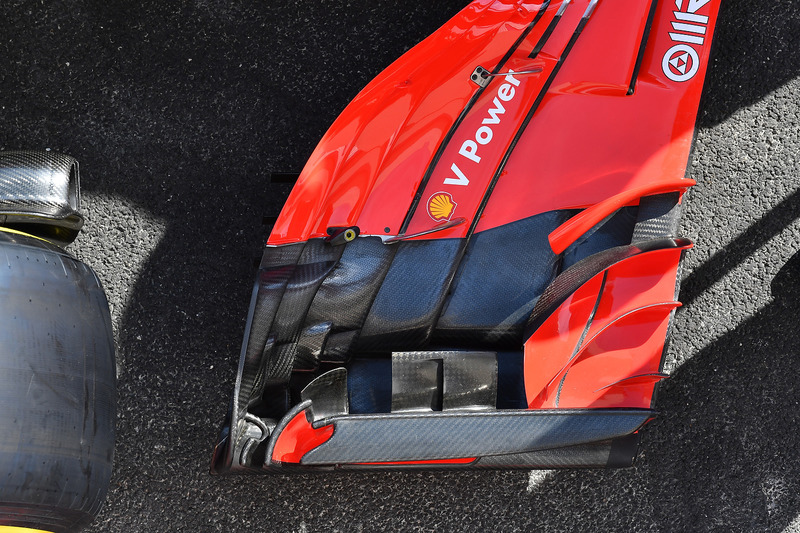

Ferrari’s front wing from above.

Ferrari SF71H barge board detail

Ferrari SF71H barge board detail
16/17

Photo by: Mark Sutton

An overview of the slotted footplate and splitter extension on the Ferrari SF71H.

Force India VJM11 nose and front wing

Force India VJM11 nose and front wing
17/17

Photo by: Giorgio Piola

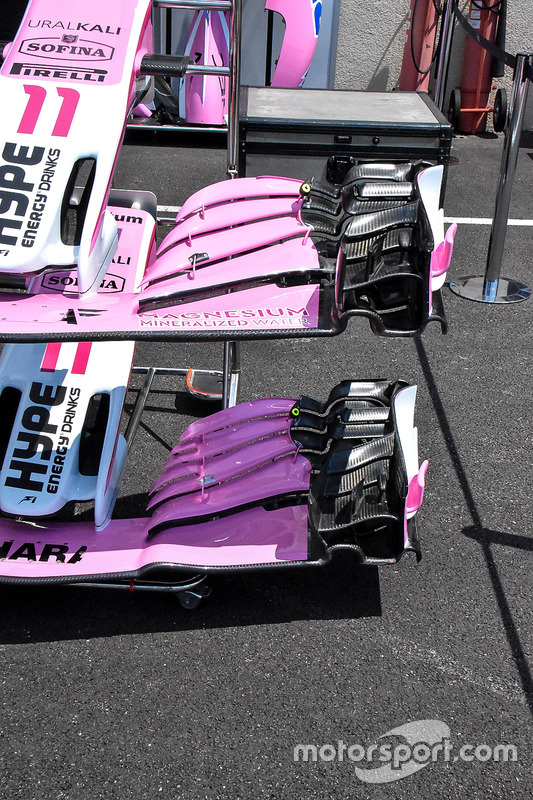

The two wings on offer for Force India this weekend, the lower of which is the newest specification and features a curvature on the leading edge of the main plane where it meets with the neutral section and serrations in each of the upper flap’s tips.
