Russian GP: The latest key F1 technical developments

Join us as we delve into the latest technical developments from the Russian Grand Prix at Sochi, courtesy of Giorgio Piola and Sutton Images.

Russian GP: The latest key F1 technical developments
Listen to this article

Click on the arrows on the images to scroll through them…

Red Bull Racing RB16B front brake drum detail
Red Bull Racing RB16B front brake drum detail
1/17
A closeup view of Red Bull’s front brake drum which shows the various outlets that allows the air passage through the assembly without cooling the brakes for aerodynamic gain. Also note the auxiliary oil tank mounted below the chassis in the splitter region, placed here to free up space behind the monocoque and potentially help, albeit in a limited fashion, with weight distribution.

Photo by: Giorgio Piola

Ferrari SF21 engine
Ferrari SF21 engine
2/17
Fantastic closeup of the Ferrari power unit installed in the SF21, which shows all of the associated pipework, shrouding and electronics that surround it.

Photo by: Giorgio Piola

Red Bull Racing RB16B engine
Red Bull Racing RB16B engine
3/17
The Honda power unit installed in the Red Bull RB16B as a comparison shows how it has packaged the engine and have a saddle cooler mounted above it.

Photo by: Giorgio Piola

Lando Norris, McLaren MCL35M
Lando Norris, McLaren MCL35M
4/17
Flo-viz painted on the left-rear suspension and brake duct winglets of Lando Norris’s McLaren MCL35M.

Photo by: Zak Mauger / Motorsport Images

Aston Martin AMR21 sidepods detail
Aston Martin AMR21 sidepods detail
5/17
A closeup of the sidepod region on the Aston Martin AMR21 shows us the venetian blind-like deflectors, the feather-like edge of the main bargeboard element and the upturned edge of the horizontal sidepod wing, which also has two vortex generators atop it.

Photo by: Giorgio Piola

Mercedes F1 W12 rear wing detail
Mercedes F1 W12 rear wing detail
6/17
A closeup of the high-downforce rear wing with twin mounting pillars and double element T-Wing selected by Mercedes.

Photo by: Giorgio Piola

Red Bull Racing RB16B rear wing detail
Red Bull Racing RB16B rear wing detail
7/17
Red Bull preferring a spoon-shaped rear wing to reduce some of the drag that an otherwise higher downforce wing might induce.

Photo by: Giorgio Piola

Ferrari SF21 rear wing detail
Ferrari SF21 rear wing detail
8/17
High downforce rear wing and T-Wing combo for Ferrari, note the deep Gurney flap on the trailing edge of the upper flap too.

Photo by: Giorgio Piola

Aston Martin AMR21 rear
Aston Martin AMR21 rear
9/17
High downforce rear wing and T-Wing combo for Aston Martin too, note the forward pocket in the endplate to help displace the vortex created at the wingtip.
Red Bull Racing RB16B rear wing detail
Red Bull Racing RB16B rear wing detail
10/17
Spoon-shaped, higher-downforce rear wing for Red Bull, as it looks for the right downforce level without adding too much drag.

Photo by: Giorgio Piola

McLaren MCL35M rear
McLaren MCL35M rear
11/17
Side view of the McLaren MCL35M with its pair of sinuous louvres both top and bottom of the rear wing endplate

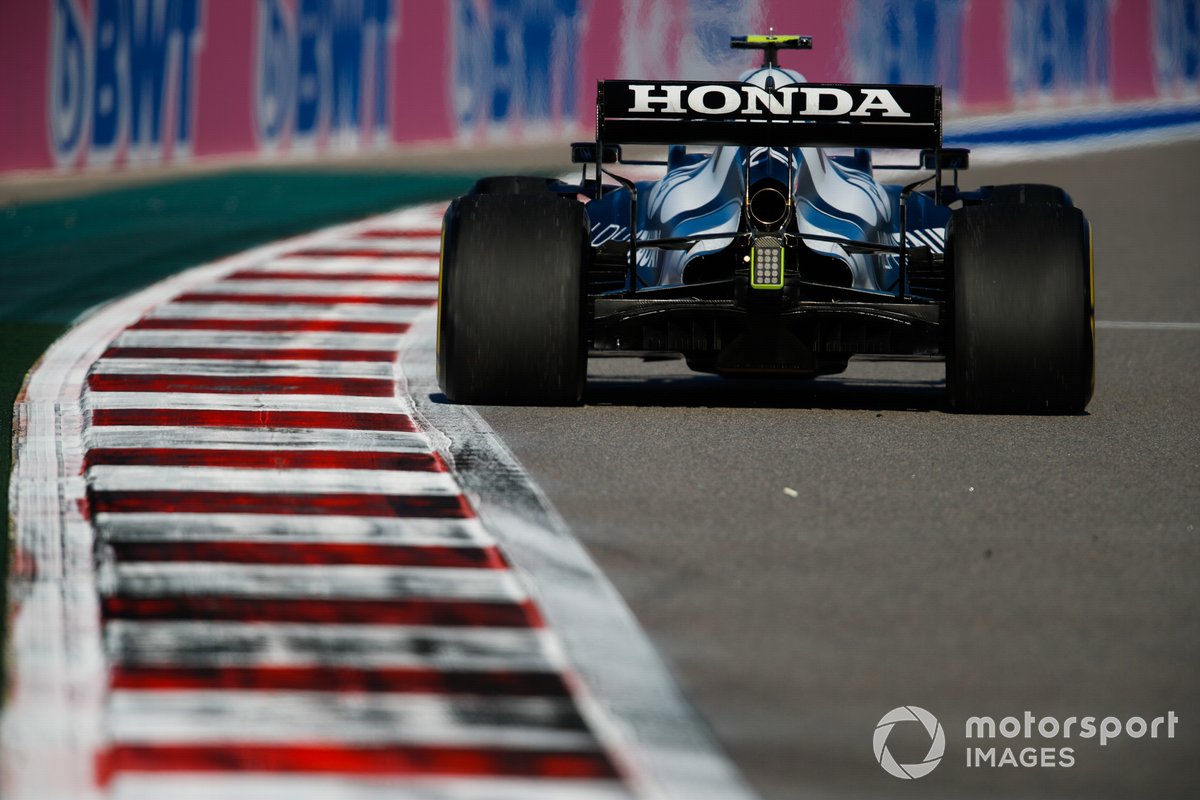

Pierre Gasly, AlphaTauri AT02
Pierre Gasly, AlphaTauri AT02
12/17
Rear end of the AlphaTauri AT02 gives a good view of the diffuser, small rear cooling outlet and higher downforce rear wing.

Photo by: Zak Mauger / Motorsport Images

Lewis Hamilton, Mercedes W12
Lewis Hamilton, Mercedes W12
13/17
This shot of the Mercedes W12 from behind gives us a great view of the higher-downforce rear wing, Gull style T-Wing and diffuser, which you’ll note has pitot tubes emerging from beneath the floor so the team can collect data.

Photo by: Zak Mauger / Motorsport Images

Sergio Perez, Red Bull Racing RB16B
Sergio Perez, Red Bull Racing RB16B
14/17
Rear end shot of the Red Bull RB16B for comparison, note how narrow it has made the transition ramp in the central section of the diffuser.

Photo by: Zak Mauger / Motorsport Images

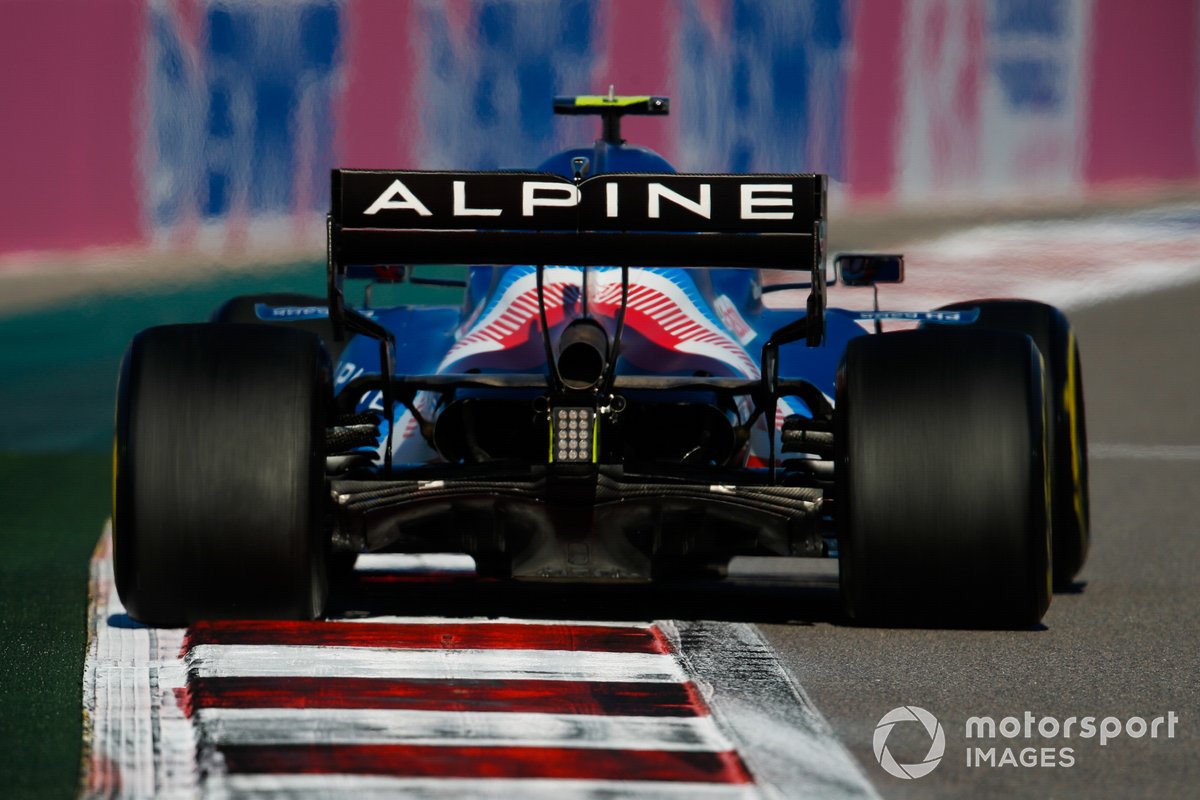

Esteban Ocon, Alpine A521
Esteban Ocon, Alpine A521
15/17
Rear end shot of the Alpine A521, note how the diffuser strakes are angled to help guide the airflow

Photo by: Zak Mauger / Motorsport Images

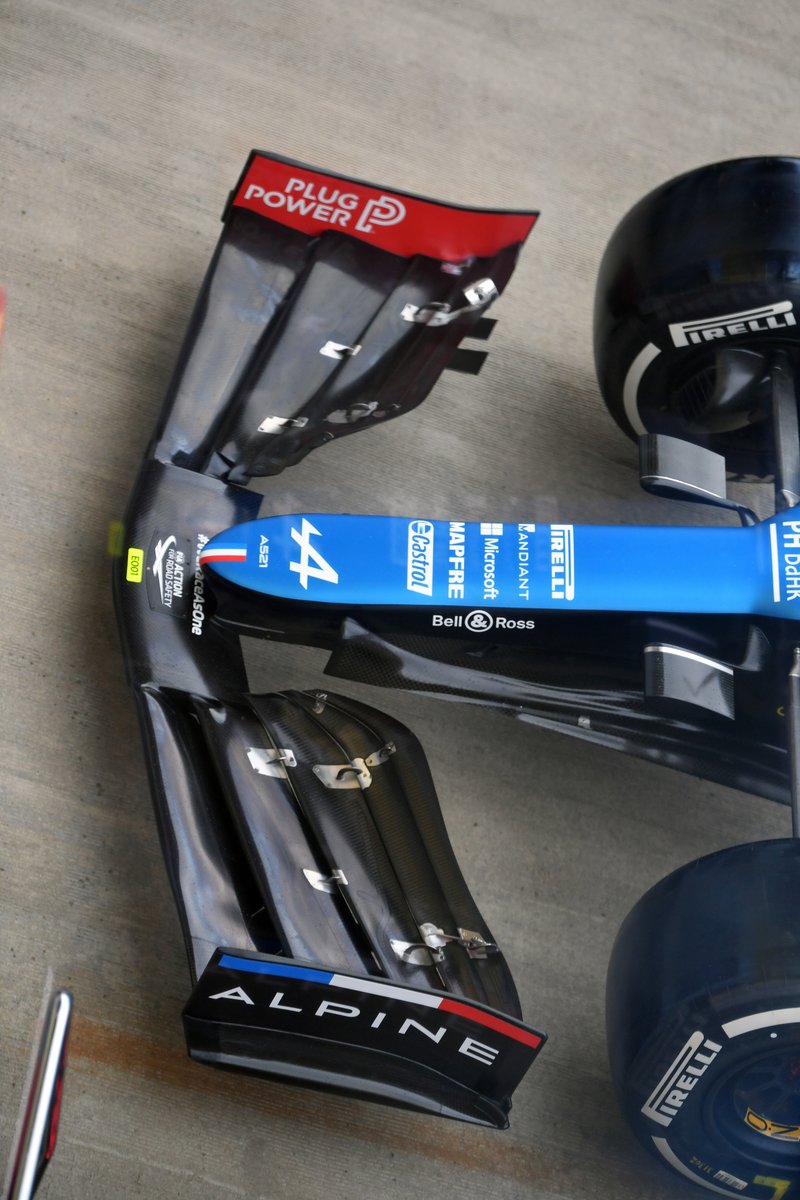

Alpine A521 front wing
Alpine A521 front wing
16/17
A top-down overview of the Alpine A521’s front wing and caped nose.

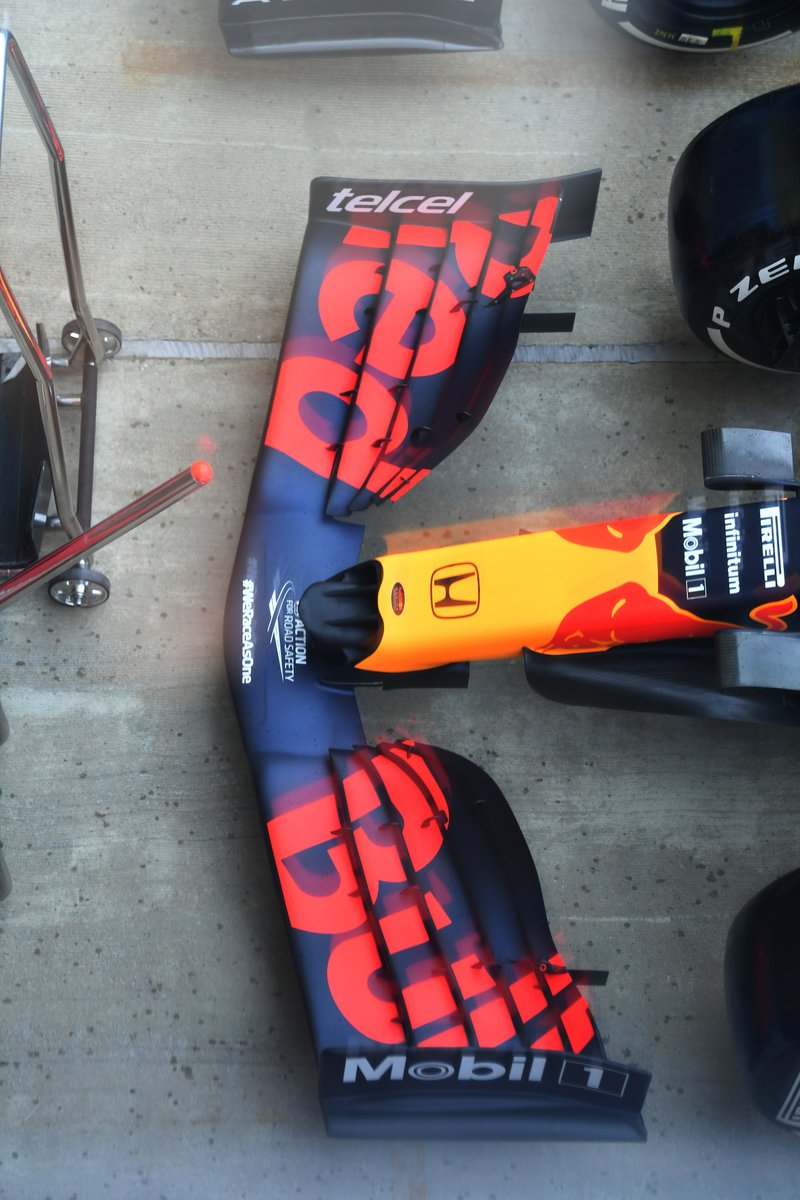

Red Bull Racing RB16B front wing
Red Bull Racing RB16B front wing
17/17
Top-down overview of the Red Bull RB16B’s front wing and nose.
