Dutch GP: Key F1 tech updates, direct from the garages

Join us as we delve into the latest technical developments from the Dutch Grand Prix at Zandvoort, courtesy of Giorgio Piola and Sutton Images.

Dutch GP: Key F1 tech updates, direct from the garages
Listen to this article
Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
1/34
A close-up of the new angled strake added by Red Bull at the Belgian GP near the Z-Shaped cutout, whilst the strake that’s connected to the floor edge and the detached floor scrolls has also been arched over more at the top too.

Photo by: Uncredited

Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
2/34

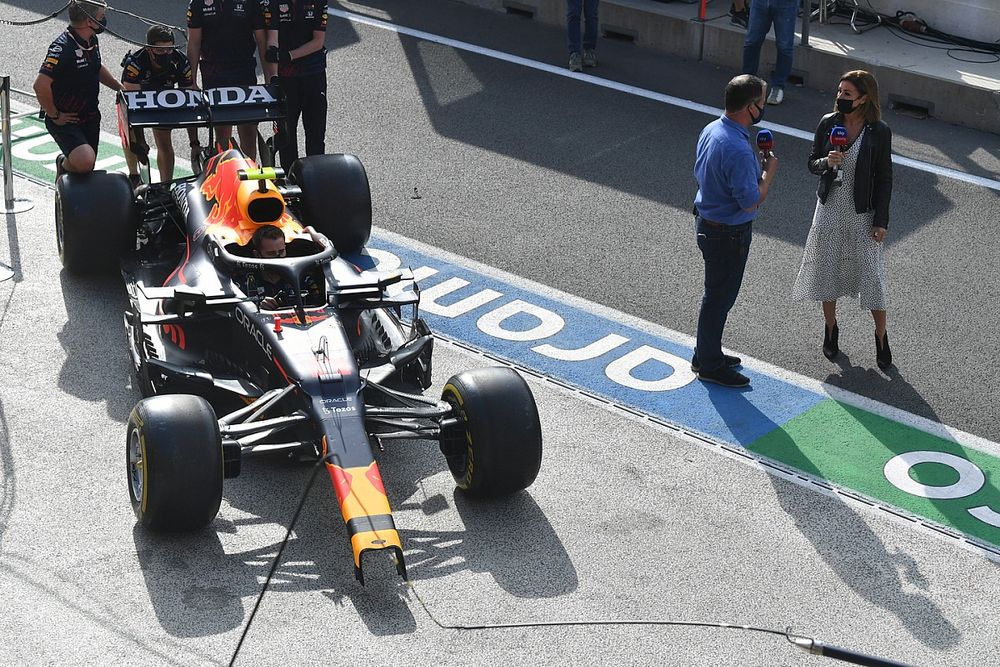

The Red Bull mechanics can be seen here preparing the RB16B for the weekend's action but also note the front brake drum which has the bypass pipework exposed allowing us to see the surface coating used to reduce the transfer of heat.

Photo by: Uncredited

Mercedes W12 bargeboard detail
Mercedes W12 bargeboard detail
3/34
This photo of the Mercedes W12 allows us to appreciate a number of fine details, included the twisted vane that connects the horizontal pod wing and the floor and the two clusters of outwardly winglets on the front section of the floor, which you'll note have different vertical curvature to encourage the airflow to behave the way they expect.

Photo by: Uncredited

Mercedes W12 nose and front wing detail
Mercedes W12 nose and front wing detail
4/34
As the Mercedes mechanics carry the nose and front wing away from the stand we can see the shape of the cape, which forms a boat tail at the rear.

Photo by: Uncredited

Mercedes W12 nose and front wing detail
Mercedes W12 nose and front wing detail
5/34
As they carry it into the garage we get a rare glimpse of the underside of the nose and front wing too.

Photo by: Uncredited

Alpine A521 detail
Alpine A521 detail
6/34
A look at the Alpine A521's bargeboard cluster and sidepod deflector, which as you'll note has some metalwork applied in order to prevent the sections flexing and the gaps closing.

Photo by: Uncredited

Alpine A521 rear detail
Alpine A521 rear detail
7/34
A look at the Alpine A521's rear end noting the metal dots on the rear surface which denote where the metal stiffeners connect to the various sections on the front. Also note the shape of the shroud around the rain light with the cutouts projected rearwards as the upper flap of the crash structure extends further back.

Photo by: Uncredited

Alpine A521 rear detail
Alpine A521 rear detail
8/34
Alpine have been running their rear wing with these stiffeners on the rear wing endplate since the new flexi-wing tests have been put in place.

Photo by: Uncredited

Mercedes W12 rear detail
Mercedes W12 rear detail
9/34
The rear end of the Mercedes W12 which you'll note has been set up with the double rear wing mounting pillars, Y-shaped T-Wing support and a small cooling outlet.

Photo by: Uncredited

Mercedes W12 bargeboard detail
Mercedes W12 bargeboard detail
10/34
Side view of the Mercedes W12 gives us an insight into the intricacy of the surfaces used to manipulate the airflow around the sidepod and floor. You can even see the slight kink in the leading edge of the floor, where the outer section is retracted slightly more than the inner portion.

Photo by: Uncredited

Mercedes W12 rear detail
Mercedes W12 rear detail
11/34
Another angle of the W12's rear wing with its elongated swan neck mounting pillars, whilst also worth noting the serrated edges on the back of the DRS actuator pod.

Photo by: Uncredited

Alpine A521 rear detail
Alpine A521 rear detail
12/34
Another angle on the Alpine A521 from the rear and note what appear to be some on-site repairs to the joint in the rear wing endplate.

Photo by: Uncredited

Aston Martin AMR21 nose and front wing detail
Aston Martin AMR21 nose and front wing detail
13/34
A rare view of the Aston Martin AMR21's front wing, nose and cape from behind, note the interior footplate on the front wing which is used to help direct the flow in that region.

Photo by: Uncredited

Aston Martin AMR21 bargeboard detail
Aston Martin AMR21 bargeboard detail
14/34
The design of the AMR21 still has some of the core DNA of the W10 its brethren was so obviously derived from but Aston Martin have worked hard on their own concepts too, as they looked for ways to overcome the rule changes that hampered them early-on this season. Note the significant floor cutout around which the crescent-shaped array of winglets are mounted, whilst a quartet of outwardly angled winglets help the airflow ahead.

Photo by: Uncredited

Aston Martin AMR21 detail
Aston Martin AMR21 detail
15/34
Upstream of this we can see how complex all of the surfaces that make up the bargeboard cluster have become, with the upper surface of the main element that protrudes above the boomerang, fanned out and slotted to improve flow consistency across a range of conditions.

Photo by: Uncredited

Red Bull Racing RB16B front detail
Red Bull Racing RB16B front detail
16/34
This side view of the Red Bull RB16B's front end shows how the suspension fairings and flexures have been curated to provide aerodynamic assistance, whilst the chassis horns and narrow 'S' duct are a design that mark them out from the rest of the grid.

Photo by: Uncredited

McLaren MCL35M bargeboard detail
McLaren MCL35M bargeboard detail
17/34
A great view of the McLaren MCL35M's Z-shaped floor cutout and outwardly angled fins, which you'll note are angled differently at different points on the floor.

Photo by: Uncredited

McLaren MCL35M rear detail
McLaren MCL35M rear detail
18/34
A nice close-up of the winglets mounted on the side of the McLaren MCL35M's crash structure and the ladder winglet mounted between it and the diffuser. Also note the little duck bill winglet on the end of the crash structure.

Photo by: Uncredited

Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
19/34
A magnificent overview of the Red Bull RB16B's bargeboard cluster, sidepod deflectors and the strakes on the leading edge of the floor. Note the slots in the boomerangs surface which mirror the slots in the footplate below for legality purposes.

Photo by: Uncredited

Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
20/34
The area ahead of the rear tyre on the Red Bull RB16B with an array of different shape and length strakes and winglets used to help direct the airflow across and around the rear tyre.

Photo by: Uncredited

Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
21/34
A close-up of the five angled fins in front section of the RB16B's floor.

Photo by: Uncredited

Red Bull Racing RB16B steering detail
Red Bull Racing RB16B steering detail
22/34
Red Bull don't use the RB16B's steering wheel for pitstop practice, instead favouring an older model without the large PCU-8D display mounted in it.

Photo by: Uncredited

Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
23/34
A close-up of the RB16B's bargeboard cluster shows the slots in the surfaces more clearly.

Photo by: Uncredited

Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
24/34
As the mechanics prepare to practice a front wing change during a pitstop we get to see how the nose and cape are made up and you'll note a tunnel section is created in the central section to help channel airflow through from the front of the car.

Photo by: Uncredited

Mercedes W12 brake drum detail
Mercedes W12 brake drum detail
25/34
A nice overview of the Mercedes W12's front brake duct assembly, which you'll note that without the wheel attached the inlet travels further down the front face than you'd expect.

Photo by: Uncredited

Mercedes W12 front brake drum detail
Mercedes W12 front brake drum detail
26/34
A shot of the front brake duct from the side gives an indication of how big the internal bypass channel at the front of the assembly is.

Photo by: Uncredited

Mercedes W12 brake drum detail
Mercedes W12 brake drum detail
27/34
An unusual shot of the rear suspension and brake duct without the wheel being in place shows how airflow is channeled through and around the various components on the W12. Also note the strakes mounted on the floor ahead of the rear brakes which are used to help divert the airflow across and around the rear tyre.

Photo by: Uncredited

Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
28/34
This shot of the RB16B's bargeboard cluster shows how the outer section of the boomerang is split into two levels in order that it interacts with the sidepod deflector alongside more effectively.

Photo by: Uncredited

Red Bull Racing RB16B detail
Red Bull Racing RB16B detail
29/34
As the Red Bull mechanics deliberate an issue with a wheel nut we're treated to a view of the rear brake duct winglet and suspension.

Photo by: Uncredited

Tech Detail Alfa Romeo Racing C41
Tech Detail Alfa Romeo Racing C41
30/34
There's nothing new to see in this shot of the Alfa Romeo C41 but it is worth noting some of the features on show, including the outwardly angled strakes in the low section of the rear wing endplate and their novel low-line engine cover.

Photo by: Mark Sutton / Motorsport Images

Tech Detail, Alpine A521
Tech Detail, Alpine A521
31/34
Looking at the Alpine A521's front wing from this angle you can't fail to notice how the upper surface of the footplate falls away, allowing for the formation of the two outwardly angled fins at the rear, which help with outwash.

Photo by: Mark Sutton / Motorsport Images

Tech Detail, Alpine A521
Tech Detail, Alpine A521
32/34
A great view of the aero surfaces that dominate the outer shoulder of the Alpine A521, with curvature of the sidepod wing clear to see from this angle.

Photo by: Mark Sutton / Motorsport Images

Kimi Raikkonen, Alfa Romeo Racing C41
Kimi Raikkonen, Alfa Romeo Racing C41
33/34
The Alfa Romeo C41's front wing is sprayed with flo-viz paint as the team look for visual confirmation that the airflow is behaving as expected

Photo by: Mark Sutton / Motorsport Images

Lewis Hamilton, Mercedes W12
Lewis Hamilton, Mercedes W12
34/34
Mercedes applied flo-viz paint to the lower wishbone at the front of Lewis Hamilton's car during FP1 in order to make sure the airflow over and under the aerodynamic fairing was acting as they anticipated.

Photo by: Zak Mauger / Motorsport Images
