As Formula 1 hits Canada this weekend, Giorgio Piola and Sutton Images reveal the all-important technical updates on show in the Montreal pitlane.

Force India VJM11 rear suspension detail

Force India VJM11 rear suspension detail
1/13

A look under the covers of the VJM11 showing the Mercedes power unit installation.

Photo by: Giorgio Piola

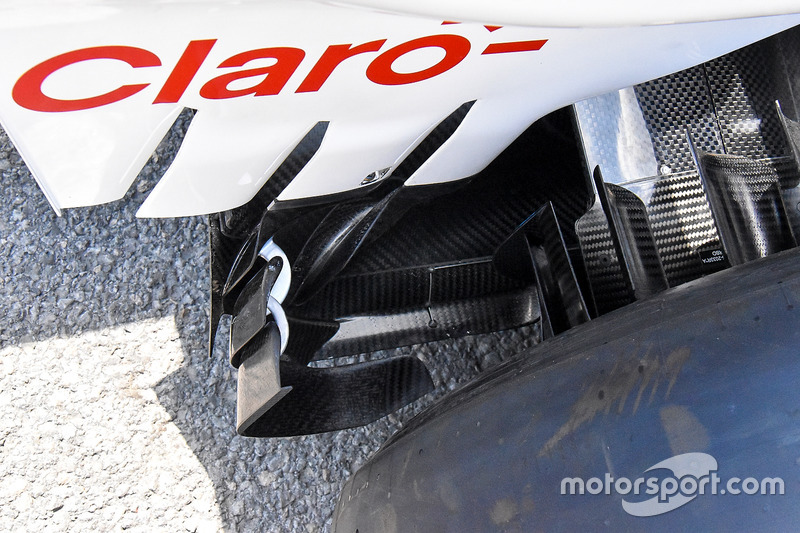

Sauber C37 detail

Sauber C37 detail
2/13

A fantastic view of Sauber’s revised diffuser edge from above, which was introduced in Monaco.

Photo by: Giorgio Piola

Ferrari SF71H rear wing detail

Ferrari SF71H rear wing detail
3/13

Ferrari will run the SF71H without the T-wing during free practice to ascertain whether it'll be raced or not.

Photo by: Giorgio Piola

Renault Sport F1 Team RS 18 halo-mounted mirrors

Renault Sport F1 Team RS 18 halo-mounted mirrors
4/13

Renault once again testing a 3D-printed mirror mounted from the halo, having adjusted its design in light of the technical directive that was issued due to Ferrari's design in Spain.

Photo by: Giorgio Piola

McLaren MCL33 nose

McLaren MCL33 nose
5/13

A look up the triple inlet on the MCL33’s nose.

Photo by: Mark Sutton

Sauber C37 axle detail

Sauber C37 axle detail
6/13

Sauber is continuing to use the blown axle introduced in Monaco.

Photo by: Giorgio Piola

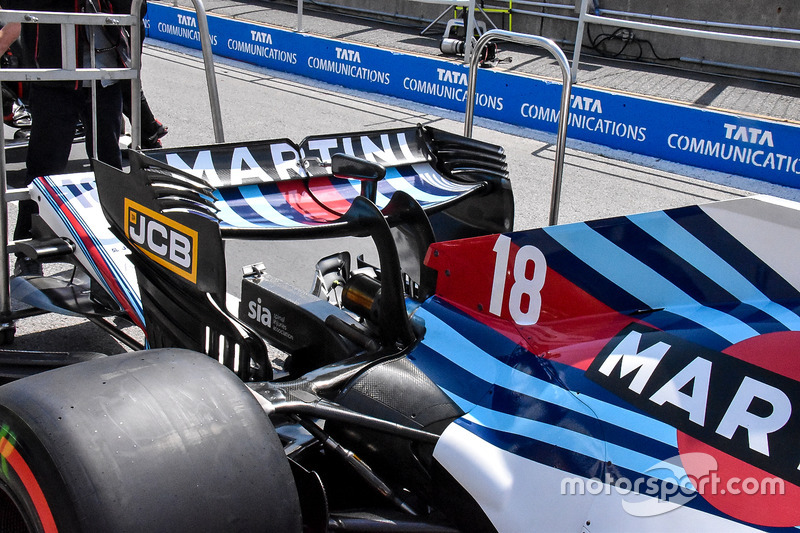

Williams FW41 wing detail

Williams FW41 wing detail
7/13

Williams’ spoon-shaped rear wing with arched swan-neck style supports.

Photo by: Giorgio Piola

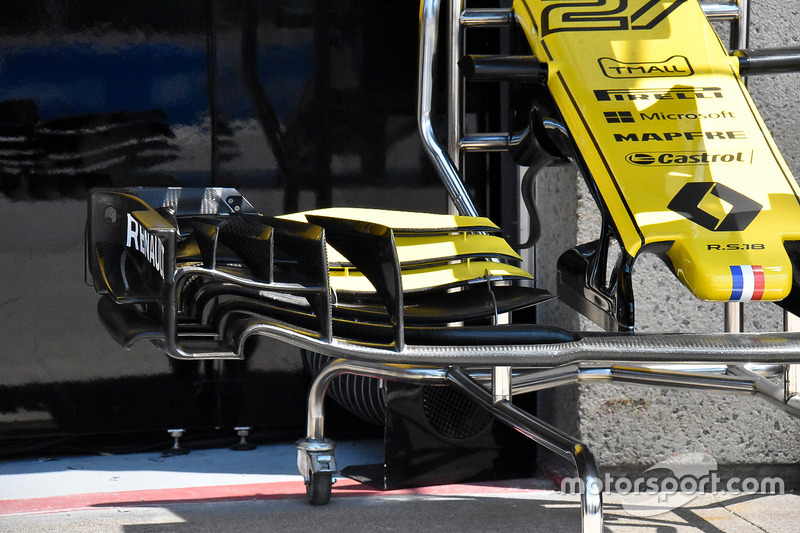

Renault Sport F1 Team RS 18 front wing detail

Renault Sport F1 Team RS 18 front wing detail
8/13

Renault will once again vet different front wing configurations, looking to resolve high-speed understeer issues.

Photo by: Giorgio Piola

Red Bull Racing RB14 in the garage

Red Bull Racing RB14 in the garage
9/13

The Red Bull RB13 in a state of undress as it's prepared for action in Montreal.

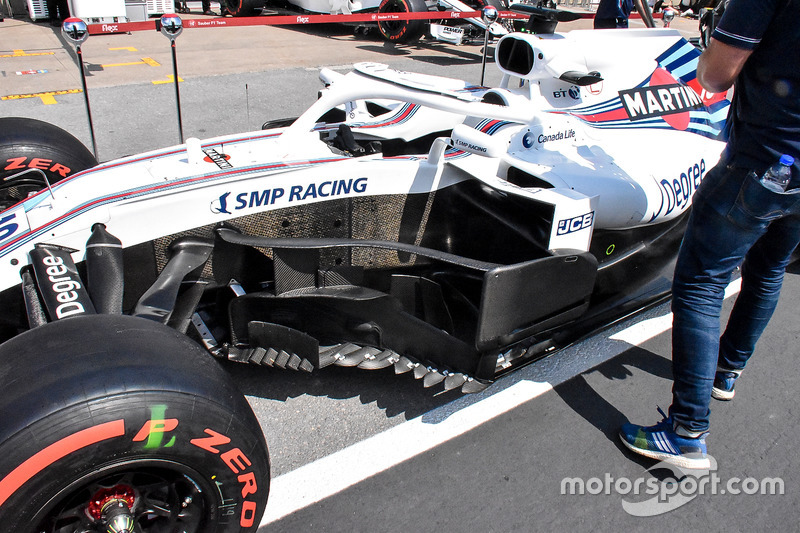

Williams FW41 bargeboard detail

Williams FW41 bargeboard detail
10/13

The complex bargeboard area ahead of the sidepods on the FW41.

Photo by: Giorgio Piola

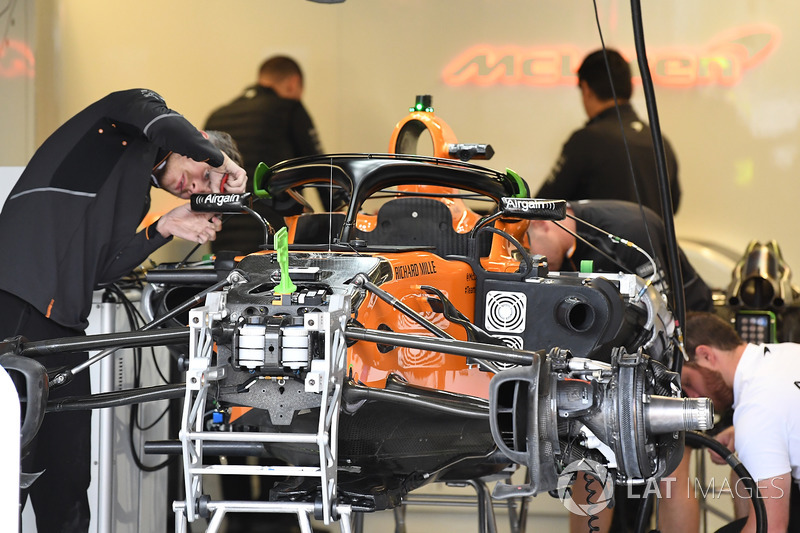

McLaren MCL33 in the garage

McLaren MCL33 in the garage
11/13

McLaren’s MCL33 is prepared for action.

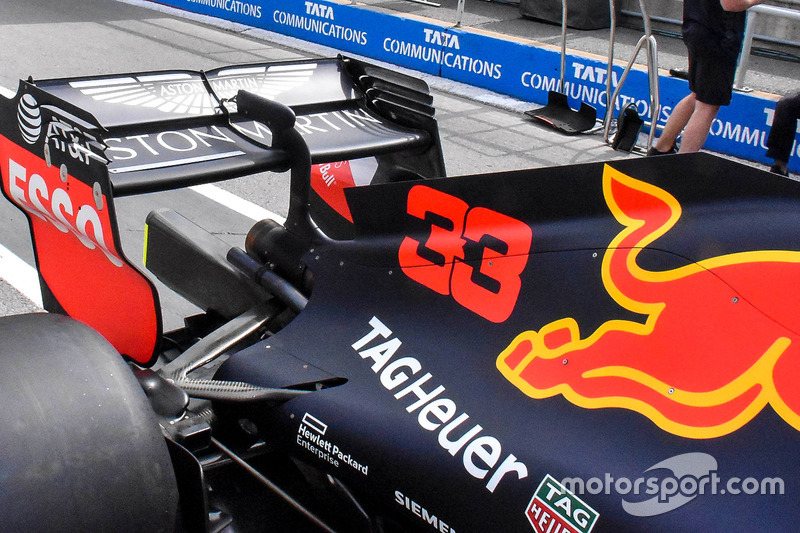

Red Bull Racing RB14 rear wing detail

Red Bull Racing RB14 rear wing detail
12/13

A look at the downforce level being used by Red Bull this weekend as the car is pushed to scrutineering.

Photo by: Giorgio Piola

Mercedes AMG F1 W09 sensors detail

Mercedes AMG F1 W09 sensors detail
13/13

Looking over the W09’s floor, which has a row of pitot tubes mounted in it to monitor the airflow.

Photo by: Giorgio Piola
