Canadian GP: Latest F1 tech updates, direct from the garages
Giorgio Piola
By: Giorgio Piola
Co-author: Matt Somerfield
Jun 9, 2018, 2:24 PM

Giorgio Piola and Sutton Images reveal the all-important technical updates on show in the Montreal pitlane.

Slider
List

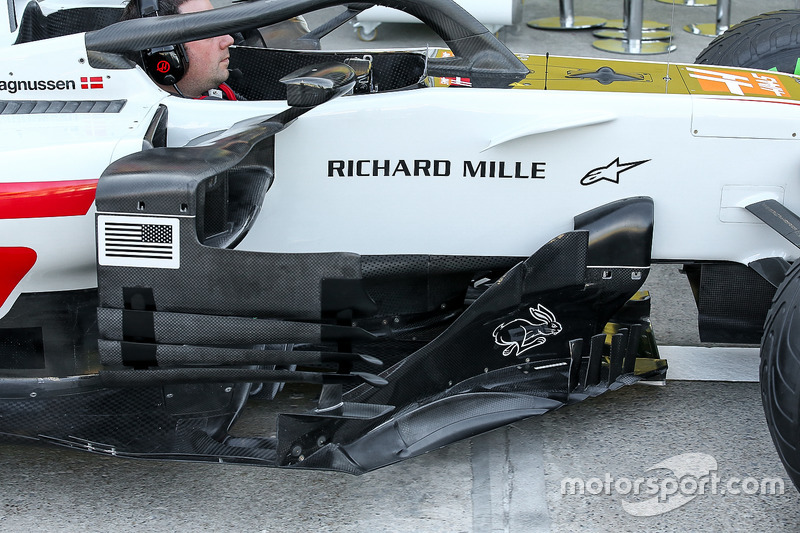

Haas F1 Team VF-18 bargeboard detail

Haas F1 Team VF-18 bargeboard detail
1/14

Photo by: Giorgio Piola

Haas has an impressive update in Canada, which features a new set of bargeboards, deflectors, sidepod slats and repositioned mirrors.

Renault Sport F1 Team RS 18 front wing detail

Renault Sport F1 Team RS 18 front wing detail
2/14

Photo by: Giorgio Piola

Note how the first flap is unconventionally turned upward as the designers look to alter the flight path of the Y250 vortex.

Mercedes-AMG F1 W09 rear floor

Mercedes-AMG F1 W09 rear floor
3/14

Photo by: Mark Sutton

The floor slot detail ahead of the rear tyres on the Mercedes W09.

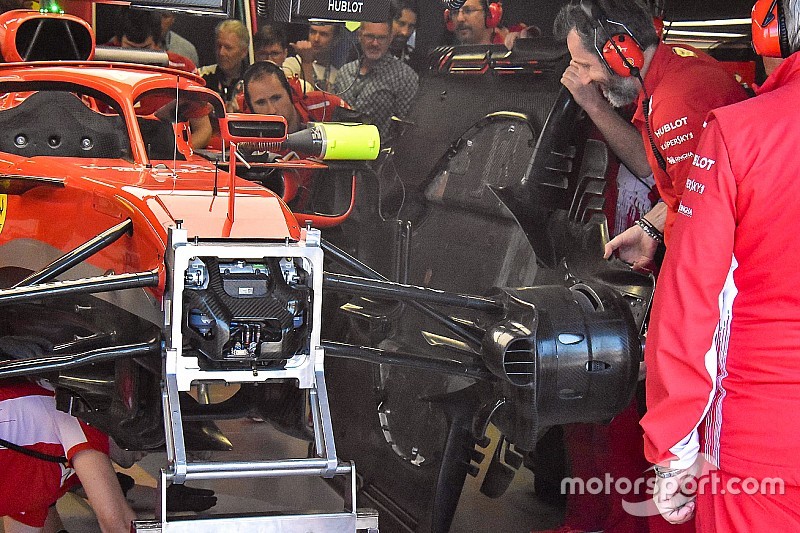

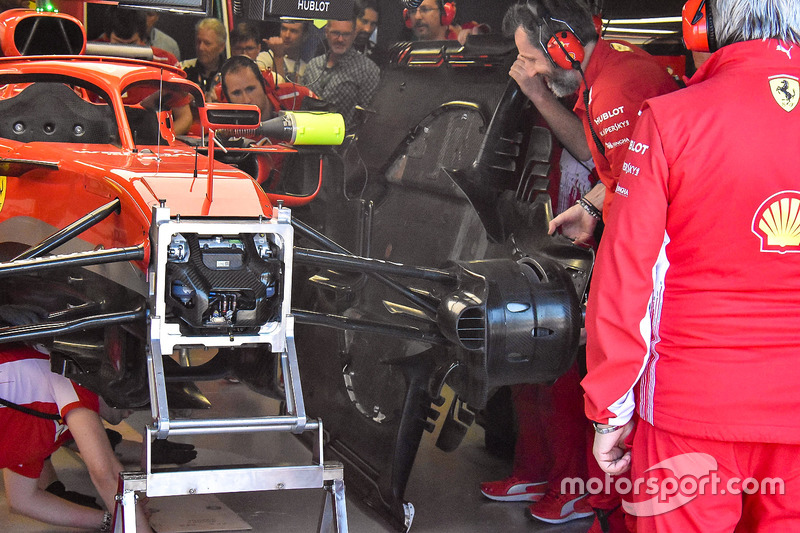

Bargeboard and floor swap on the Ferrari SF71H of Kimi Raikkonen

Bargeboard and floor swap on the Ferrari SF71H of Kimi Raikkonen
4/14

Photo by: Giorgio Piola

A Ferrari mechanic installs the new-for-Canada bargeboards on Kimi Raikkonen's car.

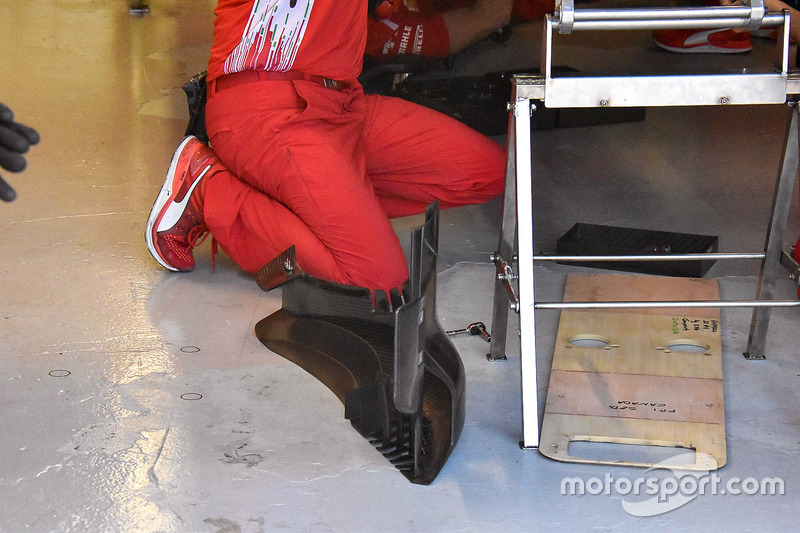

Bargeboard and floor swap on the Ferrari SF71H of Kimi Raikkonen

Bargeboard and floor swap on the Ferrari SF71H of Kimi Raikkonen
5/14

Photo by: Giorgio Piola

The new bargeboards before mounting, also note the plank is laid under the chassis awaiting installation.

Bargeboard and floor swap on the Ferrari SF71H of Kimi Raikkonen

Bargeboard and floor swap on the Ferrari SF71H of Kimi Raikkonen
6/14

Photo by: Giorgio Piola

Readying the floor for installation on Raikkonen’s car.

Haas F1 Team VF-18 front wing detail

Haas F1 Team VF-18 front wing detail
7/14

Photo by: Giorgio Piola

The updated front wing being utilized by Haas once more in Montreal.

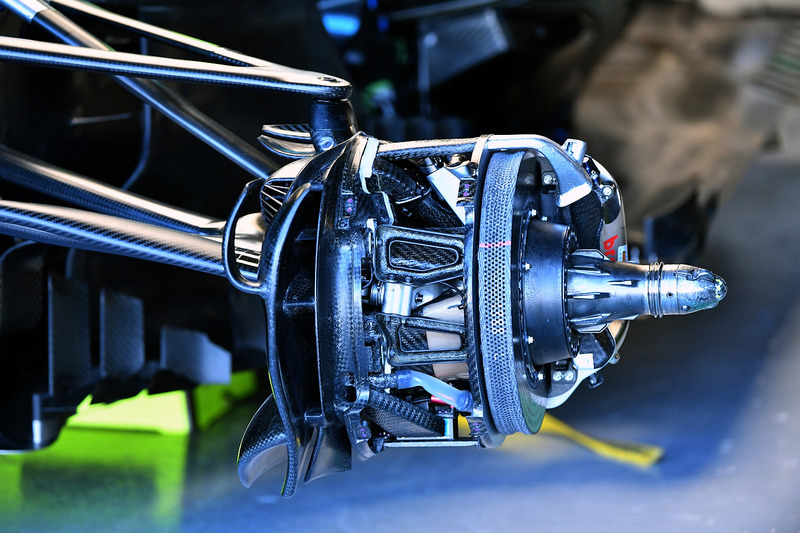

Mercedes-AMG F1 W09 front wheel hub detail

Mercedes-AMG F1 W09 front wheel hub detail
8/14

Photo by: Mark Sutton

The front brake assembly of the W09 without the brake drum attached reveals some of the more intricate details.

Mercedes-AMG F1 W09 front wheel hub

Mercedes-AMG F1 W09 front wheel hub
9/14

Photo by: Mark Sutton

The front brake assembly on the Mercedes W09 with the brake drum in place shows where the designers have placed windows in order to release heat generated under braking.

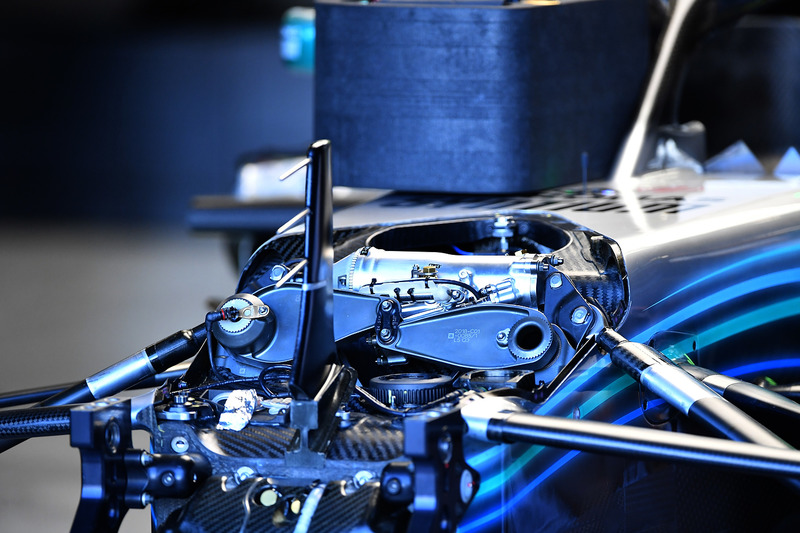

Mercedes-AMG F1 W09 front suspension detail

Mercedes-AMG F1 W09 front suspension detail
10/14

Photo by: Mark Sutton

A look at the front suspension assembly on the Mercedes W09.

Daniel Ricciardo, Red Bull Racing RB14's engine intake plenum

Daniel Ricciardo, Red Bull Racing RB14's engine intake plenum
11/14

Photo by: Giorgio Piola

An often unseen component is the intake plenum, with this picture of the Renault-Red Bull assembly taken when Daniel Ricciardo’s power unit was disassembled.

Daniel Ricciardo, Red Bull Racing RB14's engine intake plenum

Daniel Ricciardo, Red Bull Racing RB14's engine intake plenum
12/14

Photo by: Giorgio Piola

Another fascinating shot of the intake plenum, showing how the boost plenums lead to the intake manifolds.

Renault Sport F1 Team RS 18 side detail

Renault Sport F1 Team RS 18 side detail
13/14

Photo by: Giorgio Piola

A close-up of the recently updated Renault bargeboard region, which becomes ever more complex as the designers look to improve performance.

McLaren MCL33 front wing

McLaren MCL33 front wing
14/14

Photo by: Giorgio Piola

The recently updated front wing, which features a new main cascade and endplate canard. Note how the upper flap has been trimmed to deal with the aerodynamic demands of the circuit too.
