As Formula 1 hits Austria this weekend, Giorgio Piola and Sutton Images reveal the all-important technical updates on show in the Red Bull Ring pitlane – starting with the massive Mercedes update.

Slider
List

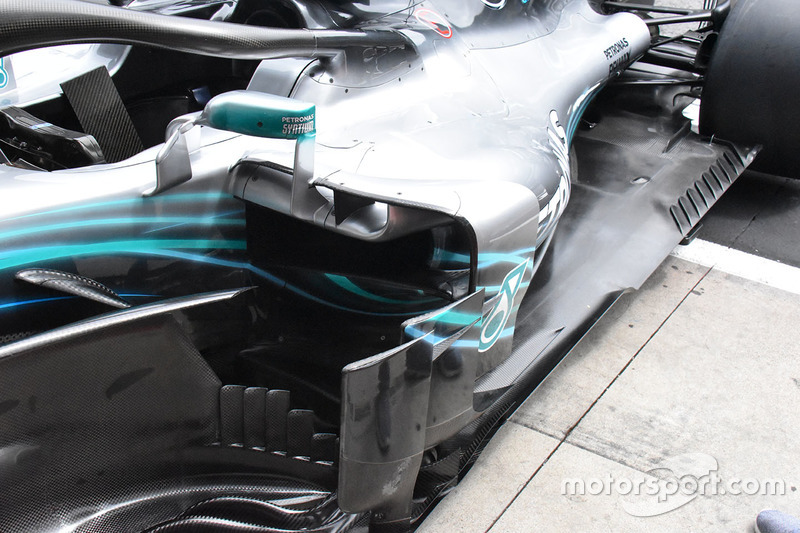

Mercedes-AMG F1 W09 bodywork detail

Mercedes-AMG F1 W09 bodywork detail
1/26

Photo by: Giorgio Piola

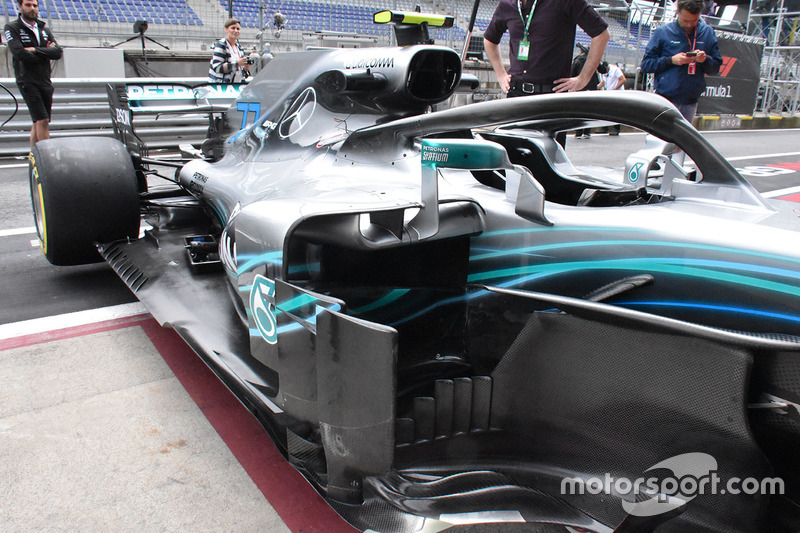

The largest talking point of the weekend is the Mercedes update, which is frankly huge! It has made big alterations to the sidepod layout in order to extract more performance from the car’s midriff.

Mercedes-AMG F1 W09 bodywork detail

Mercedes-AMG F1 W09 bodywork detail
2/26

Photo by: Giorgio Piola

The W09’s sidepod update sees the inlet moved back slightly through some clever geometrical adjustments. The mirrors and mountings have all been adjusted to make the devices on the leading edge of the floor legal when viewed from above.

Mercedes-AMG F1 W09 bargeboards detail

Mercedes-AMG F1 W09 bargeboards detail
3/26

Photo by: Giorgio Piola

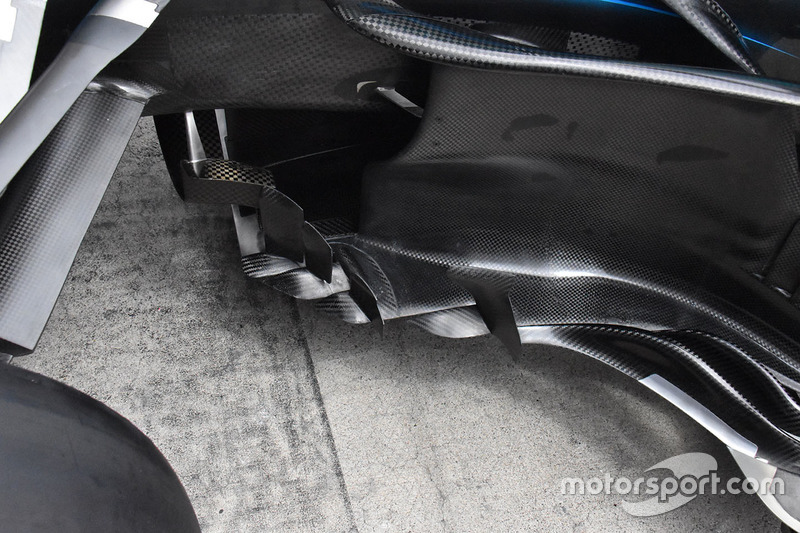

A close-up view of the vertical turning devices mounted on the W09’s bargeboard footplates.

Mercedes-AMG F1 W09 detail

Mercedes-AMG F1 W09 detail
4/26

Photo by: Giorgio Piola

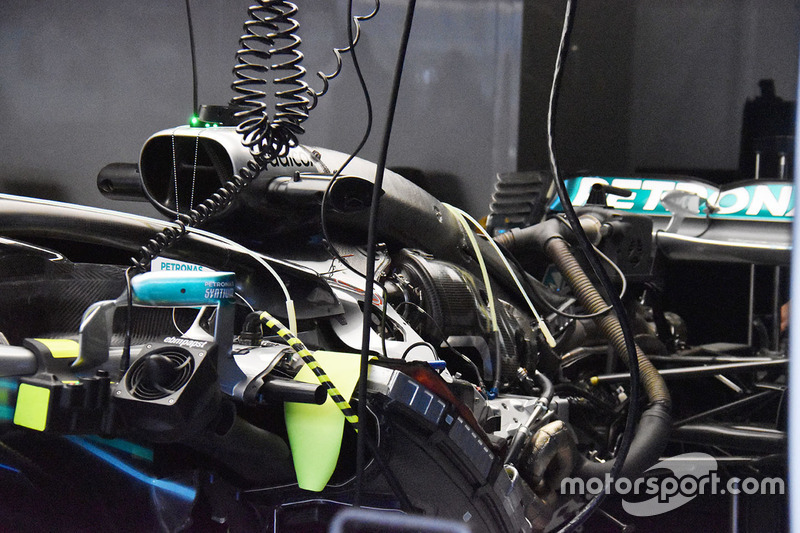

Laid bare, the Mercedes W09 without its bodywork on reveals the detail of the power unit installed within.

Mercedes-AMG F1 W09 front suspension detail

Mercedes-AMG F1 W09 front suspension detail
5/26

Photo by: Mark Sutton / Sutton Images

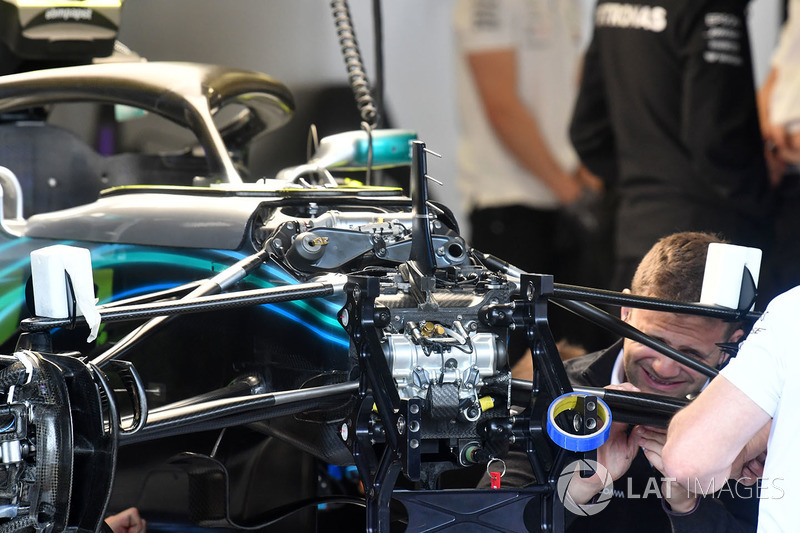

The build-up phase on a Thursday always provides an opportunity to see parts of the car often hidden behind bodywork. This is a prime example, with the W09’s front suspension on clear view.

Mercedes AMG F1 W09 mirror mount

Mercedes AMG F1 W09 mirror mount
6/26

Photo by: Giorgio Piola

The new mirror support (arrowed) forms part of the update being run by Mercedes in Austria.

Mercedes AMG F1 W09 rear wing

Mercedes AMG F1 W09 rear wing
7/26

Photo by: Giorgio Piola

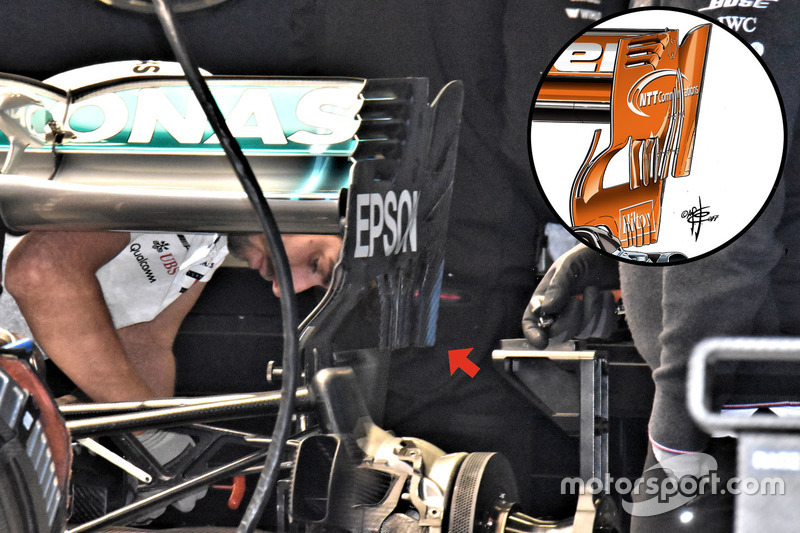

Mercedes’ new rear wing design features strakes in the transition box similar to the design run by McLaren since 2017 (inset) and, most recently, Renault.

Mercedes-AMG F1 W09 front wing detail

Mercedes-AMG F1 W09 front wing detail
8/26

Photo by: Giorgio Piola

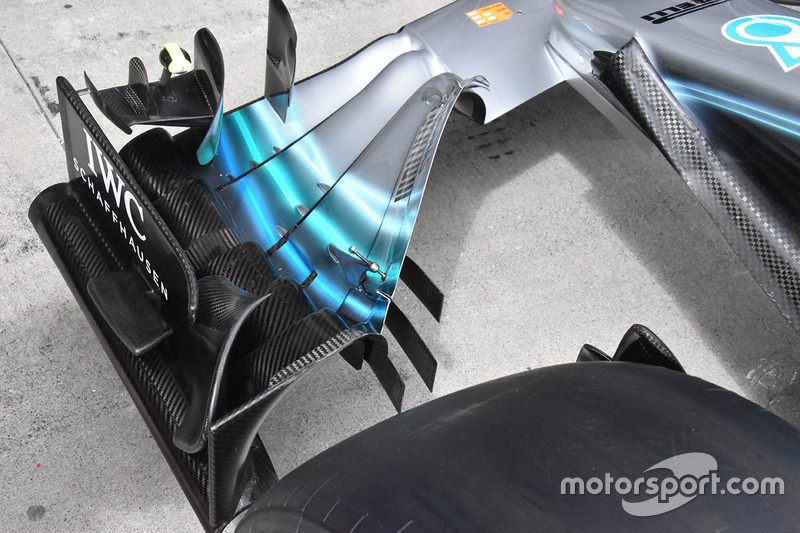

Mercedes’ front wing from above and behind is a view not often seen, and reveals some of the detail going on under the flaps.

Mercedes-AMG F1 W09 diffuser detail

Mercedes-AMG F1 W09 diffuser detail
9/26

Photo by: Giorgio Piola

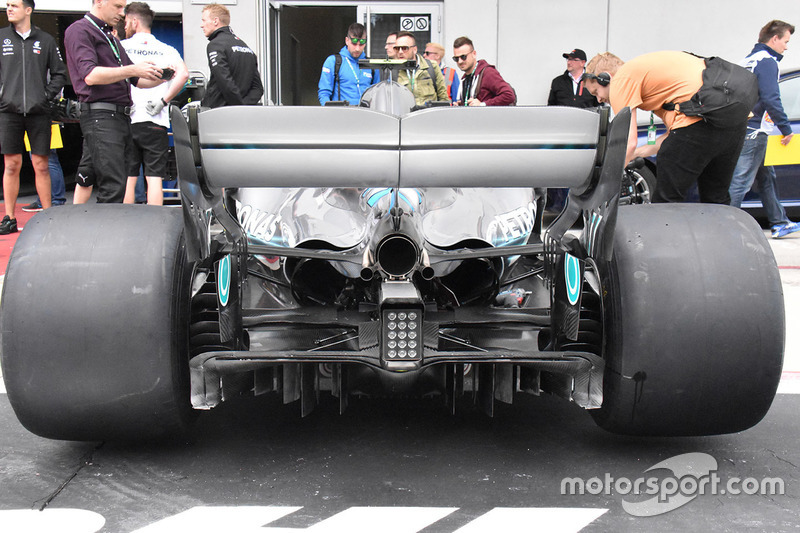

A fantastic view of the W09 from behind shows off the level of detail in the diffuser and the new rear wing endplate assembly.

Renault Sport F1 Team R.S. 18 nose detail

Renault Sport F1 Team R.S. 18 nose detail
10/26

Photo by: Giorgio Piola

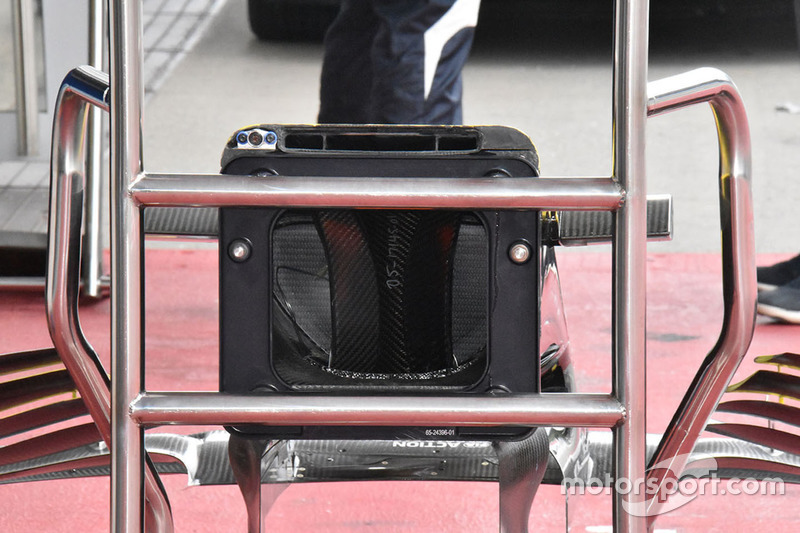

A look inside Renault’s nosecone shows the way that the S-duct’s internal pipework is routed.

Force India VJM11 nose and front wing

Force India VJM11 nose and front wing
11/26

Photo by: Manuel Goria / Sutton Images

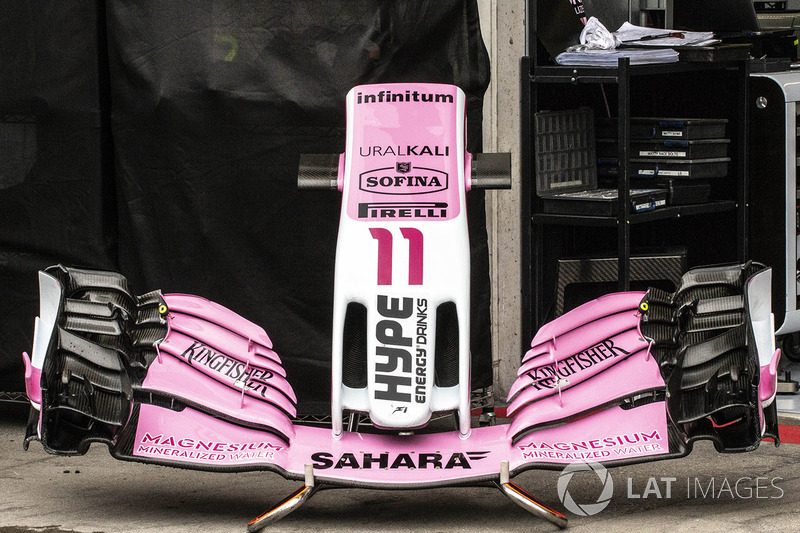

An overview of Force India’s latest specification front wing and the holes in its ‘cobra’ nose.

Red Bull Racing RB14 in the garage

Red Bull Racing RB14 in the garage
12/26

Photo by: Mark Sutton / Sutton Images

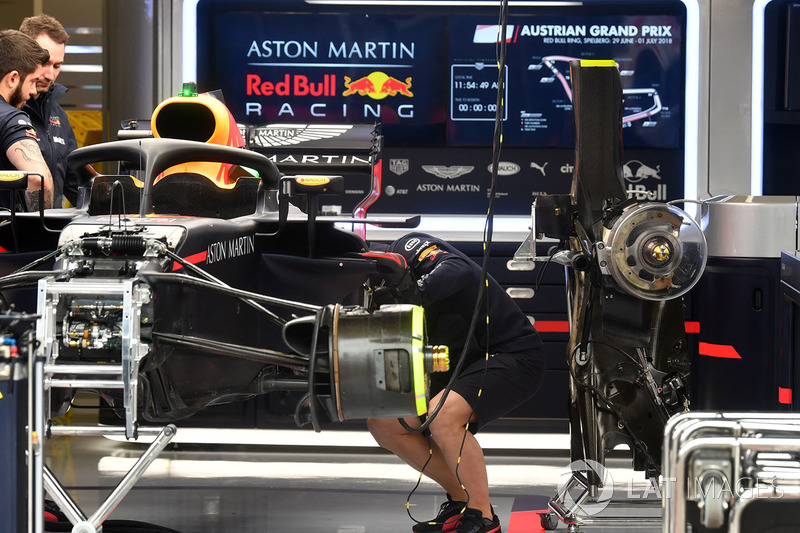

One of the Red Bull chassis being prepared for action. Note the gearbox, rear crash structure and suspension assembly sat vertically on the right of shot.

Ferrari SF71H nose and front wings

Ferrari SF71H nose and front wings
13/26

Photo by: Mark Sutton / Sutton Images

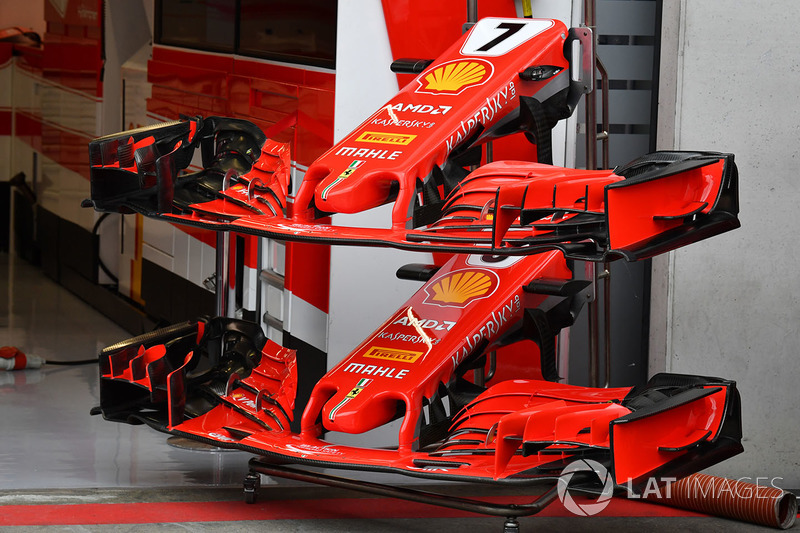

Ferrari has a choice of front wings available for Austria – the newer variant introduced at the last round is on top in this image.

Renault Sport F1 Team R.S. 18

Renault Sport F1 Team R.S. 18
14/26

Photo by: Mark Sutton / Sutton Images

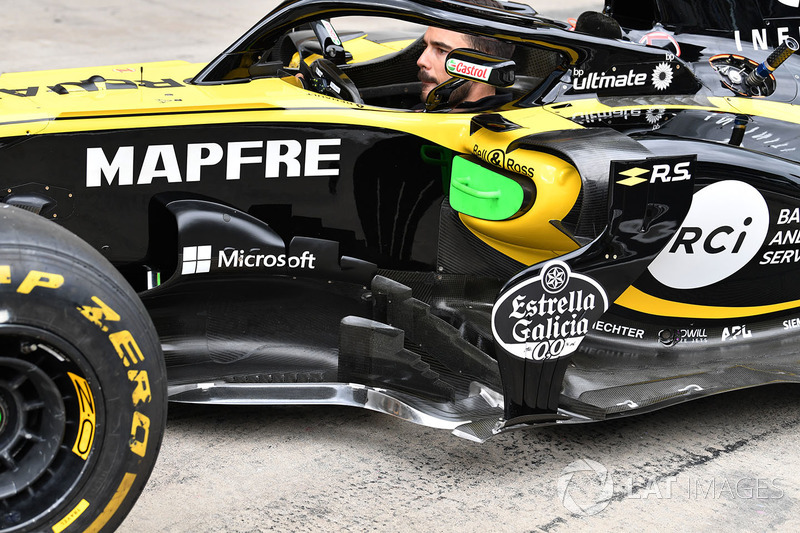

RS18 is wheeled toward scrutineering, giving a good view of the bargeboard setup. The green bung in the sidepod inlet is there to stop dust and dirt accumulating as the car is transported around the pitlane.

Mercedes-AMG F1 W09 front brake and wheel hub detail

Mercedes-AMG F1 W09 front brake and wheel hub detail
15/26

Photo by: Mark Sutton / Sutton Images

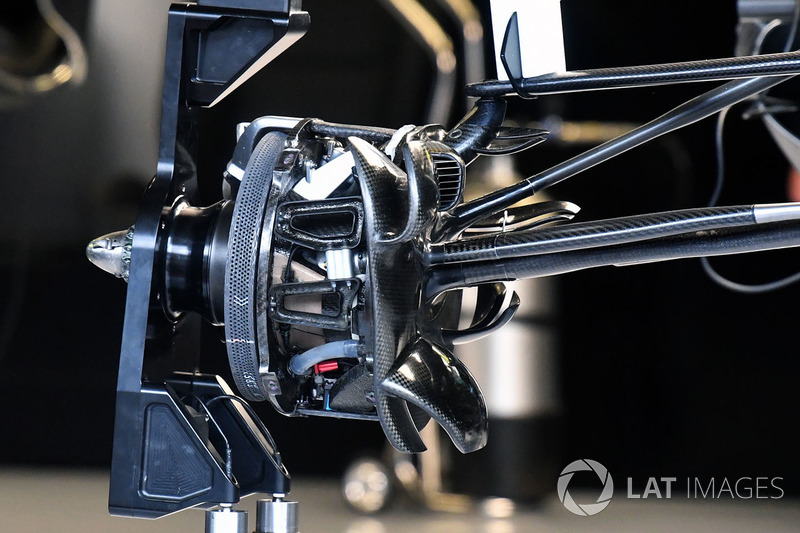

Mercedes’ front brake assembly in a state of undress shows the detail that might ordinarily be covered.

Red Bull Racing RB14 rear detail

Red Bull Racing RB14 rear detail
16/26

Photo by: Giorgio Piola

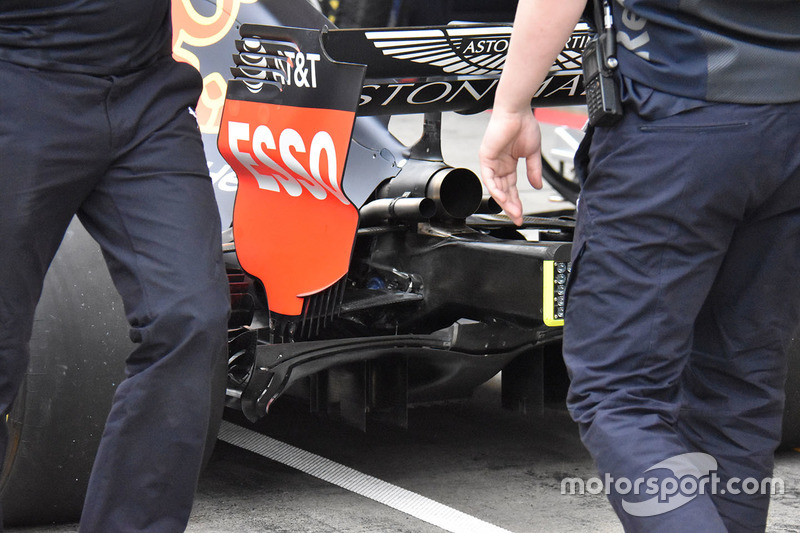

A look at the new diffuser introduced by Red Bull in France, which features a more graduated central section.

Ferrari SF71H rear wing detail

Ferrari SF71H rear wing detail
17/26

Photo by: Giorgio Piola

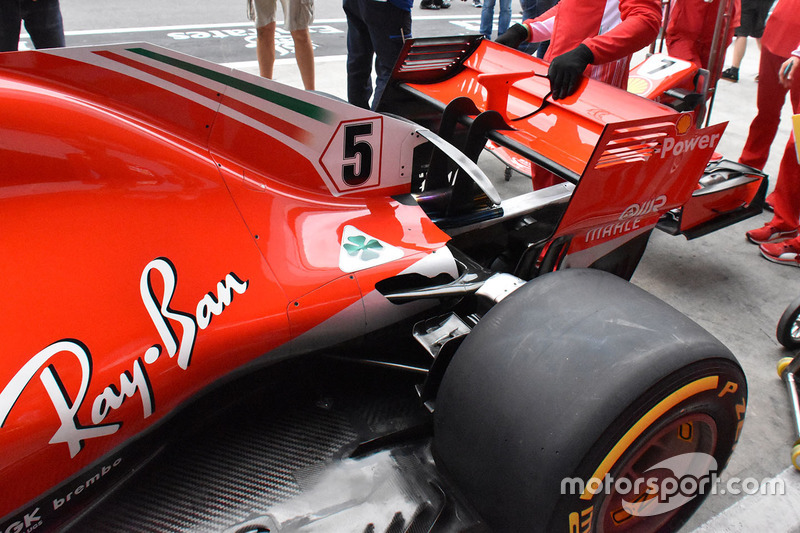

The rear end of Ferrari’s SF71H, complete with arched T-wing.

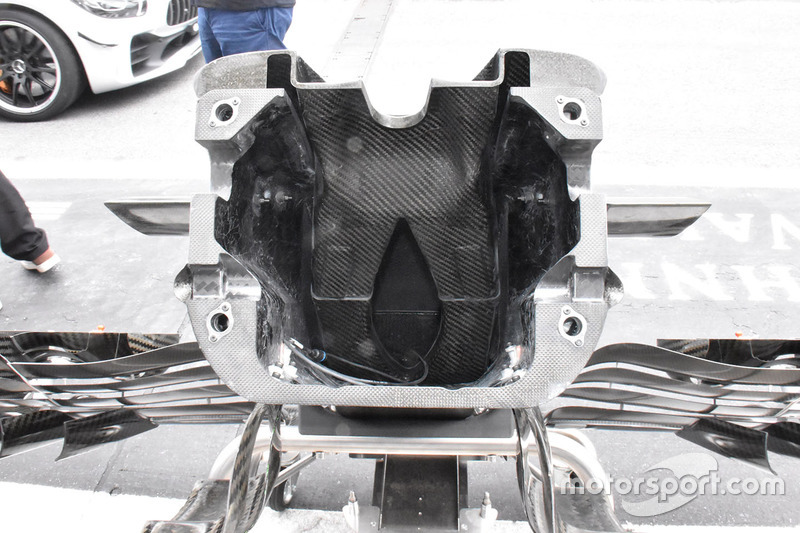

Sauber C37 nose detail

Sauber C37 nose detail
18/26

Photo by: Giorgio Piola

A look inside the Sauber C37’s nosecone shows the pipework for its S-duct's routing.

Ferrari SF71H rear wing

Ferrari SF71H rear wing
19/26

Photo by: Mark Sutton / Sutton Images

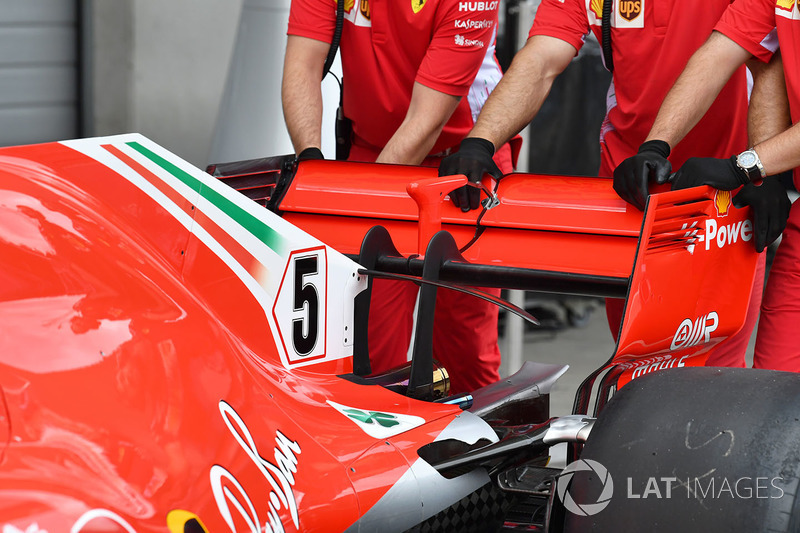

A look at the rear wing setup being selected by Ferrari in Austria.

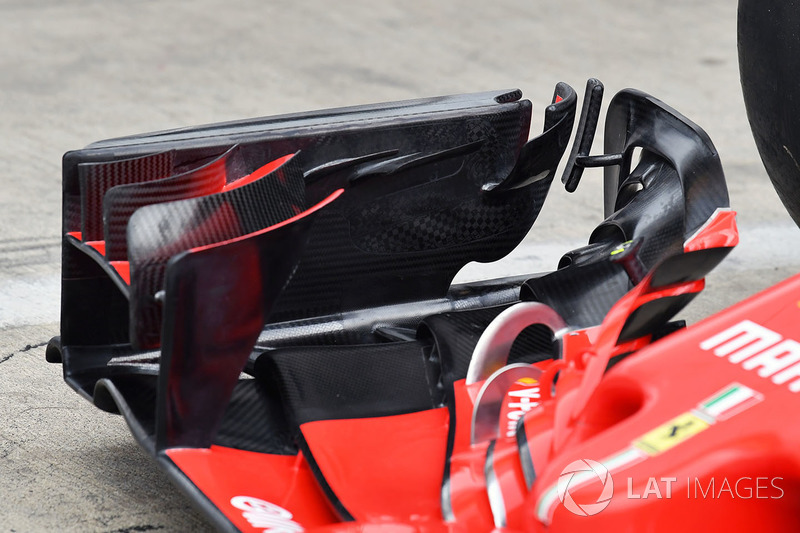

Ferrari SF71H front wing detail

Ferrari SF71H front wing detail
20/26

Photo by: Mark Sutton / Sutton Images

A great view of Ferrari’s front wing from the side, with the new canards mounted on the inner face of the endplate and full length mainplane slot.

Ferrari SF71H

Ferrari SF71H
21/26

Photo by: Mark Sutton / Sutton Images

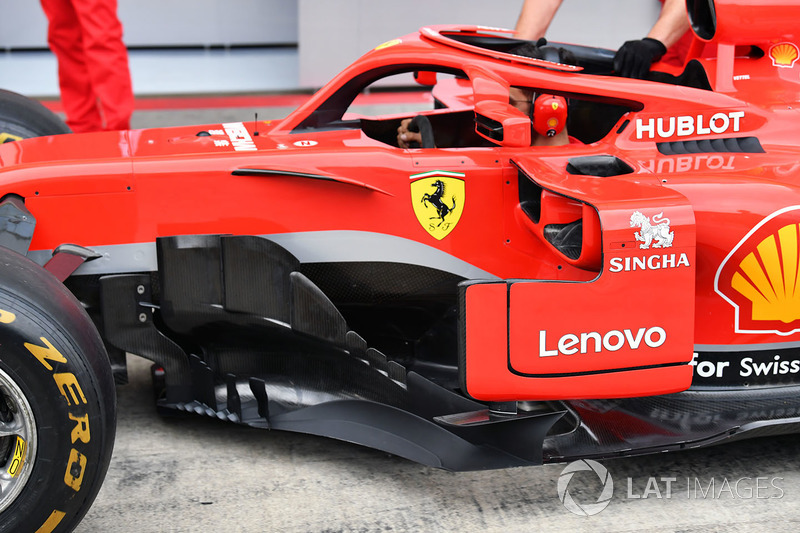

Another look at the bargeboard setup introduced by Ferrari in Canada.

Renault Sport F1 Team R.S. 18 barge board and aero detail

Renault Sport F1 Team R.S. 18 barge board and aero detail
22/26

Photo by: Mark Sutton / Sutton Images

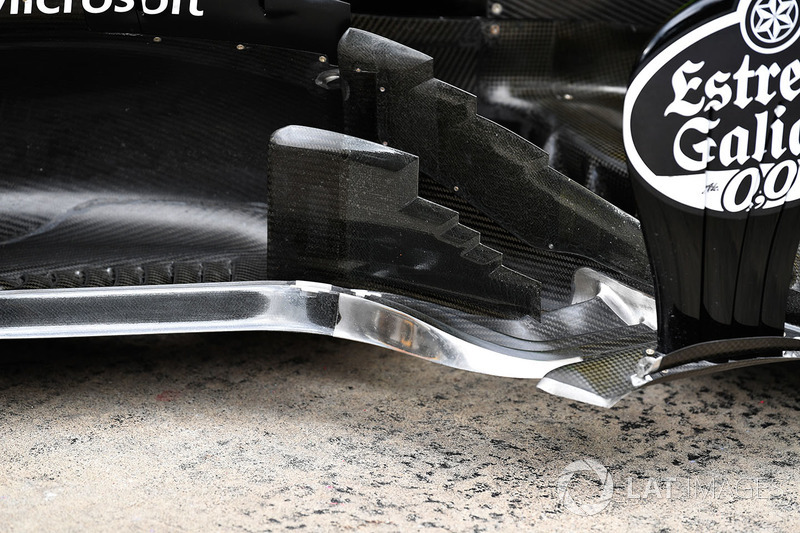

An extreme close up of the pre-bargeboard and footplate section in the RS18’s midriff.

Renault Sport F1 Team R.S. 18 front floor detail

Renault Sport F1 Team R.S. 18 front floor detail
23/26

Photo by: Mark Sutton / Sutton Images

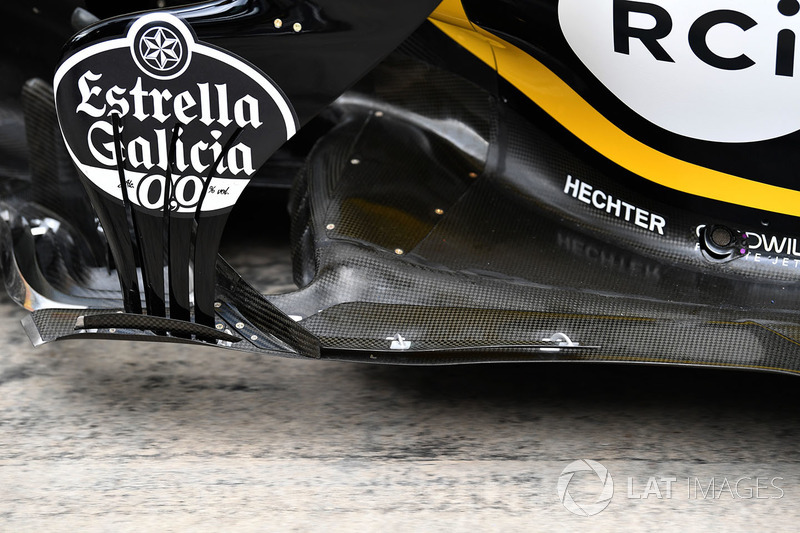

Another angle, this time of the detached floor scrolls on its outer edge. Also note that the three strakes on the upturned leading edge of the floor can be seen too.

Renault Sport F1 Team R.S. 18 rear floor detail

Renault Sport F1 Team R.S. 18 rear floor detail
24/26

Photo by: Mark Sutton / Sutton Images

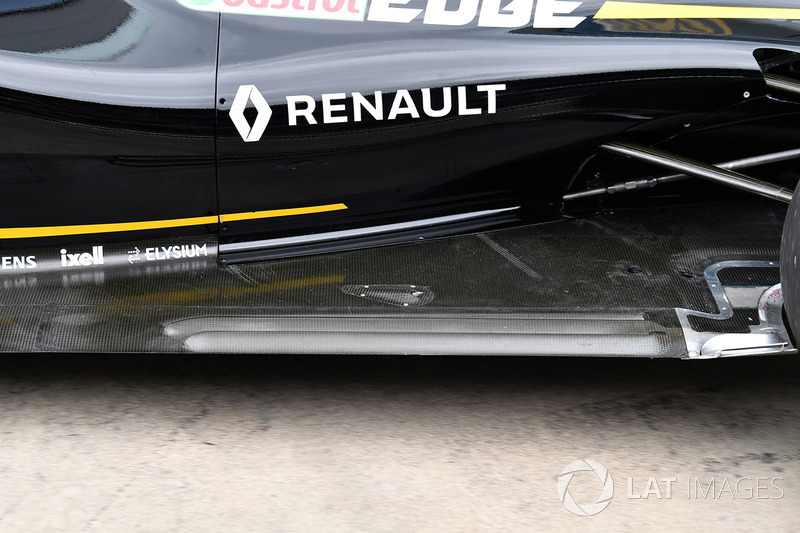

A look at the elongated floor slots on the RS18, which were introduced several races ago.

Ferrari SF71H nose detail

Ferrari SF71H nose detail
25/26

Photo by: Mark Sutton / Sutton Images

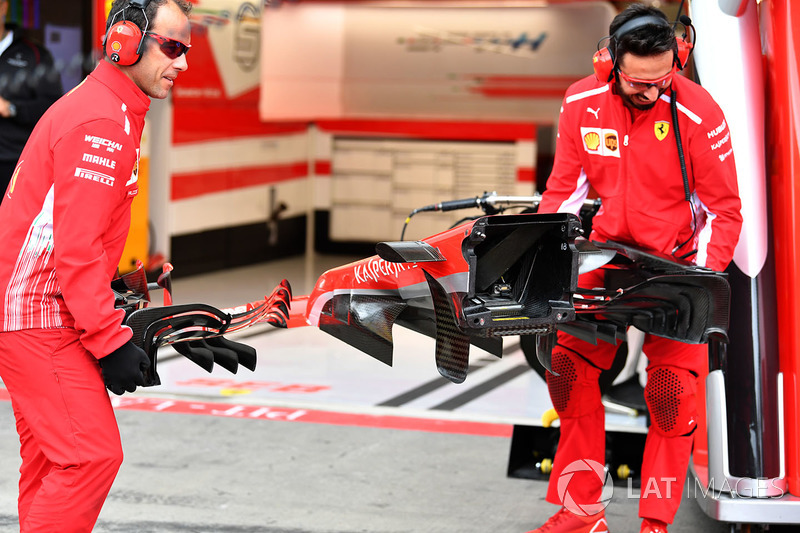

A great shot of Ferrari’s nose and front wing from behind.

Ferrari SF71H front wing

Ferrari SF71H front wing
26/26

Photo by: Mark Sutton / Sutton Images

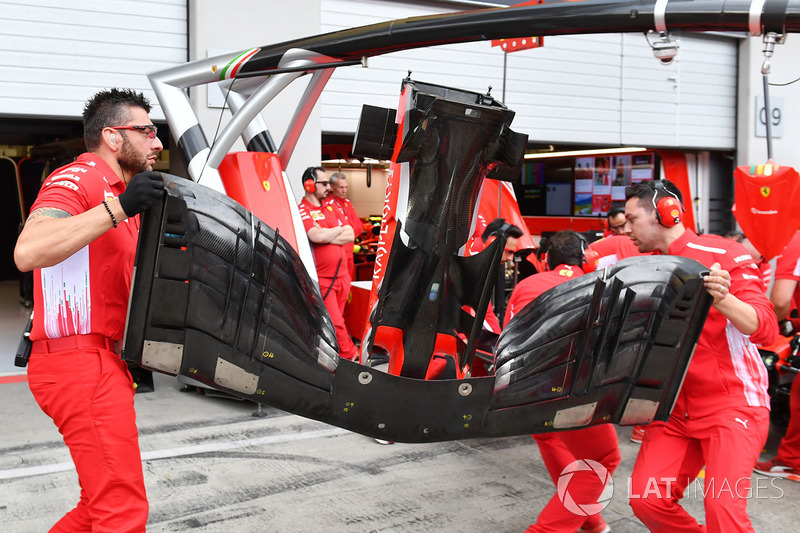

An awesome shot of Ferrari’s nose and wing from beneath reveals a wealth of detail.
