Renault Sport prepares for high altitude on historic Interlagos circuit

371 views

After nine months the 2012 FIA Formula One World Championship will finally reach its scintillating conclusion at the Brazilian Grand Prix. With the constructors’ title already secured by Red Bull Racing-Renault, the drivers’ crown will be decided this race between Red Bull Racing’s Sebastian Vettel and Ferrari’s Fernando Alonso.

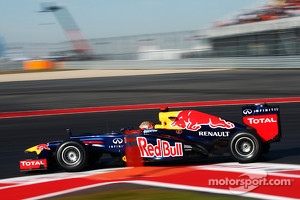

Sebastian Vettel, Red Bull Racing
Sebastian Vettel, Red Bull Racing

Photo by: xpb.cc

The final race of the year will be held at the 4.309km Autodromo Jose Carlos Pace in Brazil’s largest city, Sao Paulo. The narrow track hugs the contours of the natural amphitheatre in which it is set, sweeping its way up and down in a series of off camber corners, radial turns and tightening bends. Brazilian Grand Prix facts and figures

Interlagos has the highest altitude of the year, an average of 800m above sea level. As the altitude increases the air pressure drops and the air is thinner with a lower oxygen content. With less oxygen available for the fuel to burn, power output drops. For every 100m the engine loses around 1% of its potential power output, meaning the RS27 will produce around 8% less power than at a sea-level race such as Korea.

In addition to the high altitude, the rise and fall of the local topography gives a total elevation change of 150ft over the course of a lap. Correspondingly the local ambient pressure varies by approximately 5 mbar so the engine will require approximately 0.5% less fuel at the peak of the circuit than at the lowest point.

Interlagos has however one of the lowest fuel consumption rates per kilometre due to the high altitude and lower air density so a lower fuel level may also be used to achieve the optimum air-to-fuel ratio.

The weather over the weekend is scheduled to be wet, which will affect the power settings available to drivers as the high water content in the air will again reduce the amount of oxygen available to burn. To combat any further loss of power, engineers may use richer engine and fuel mixes. There are fewer risks involved in doing this at Interlagos than normal since the lower ambient pressure gives the internals of the engine an easier life.

There have already been several off camber corners this season where the lubricants are ‘squashed’ to one side, but there are no more obvious examples of this phenomenon than the first corner of Interlagos, the Senna S. This off camber left hander drops sharply downhill, putting the cars an angle of approx 30°. Higher fuel and lubricant levels may be used to safeguard against any momentary stall as the fluids drop suddenly to one side of the tank, and fuel collectors are often designed with this corner in mind as it is the most severe of the season.

Interlagos is the bumpiest permanent track of the year due to the intense weather conditions, relative lack of use and location. The large bumps can make the car temporarily ‘take off’. Even if it’s just for a second, with no load running through the wheels the engine suddenly hits the rev limiter, which puts the internal parts under huge stress. Bruno Senna, Williams F1 Team

Interlagos is just so special for me. It’s in my home town, the fans are always supportive and there is so much history there, particularly for my family. It’s a fantastic place to end the season on a high. The track is pretty good too: the changes in gradient and camber through every turn — particularly the first corner where we’re almost diagonal across the track — give a little challenge so we need a very driveable engine, especially if it’s wet. The altitude makes the engine less powerful as there’s less oxygen in the air but you still need the same response and drive, especially on the long pit straight. We definitely spend a lot of time trying to get the right settings.

Rémi Taffin, Renault Sport F1 head of track operations

Interlagos requires every engine characteristic to be on form and we work very hard to give good driveability through the twisty back section. Sector 2, in particular Turns 8, 9 and 10, require a driveable engine to avoid wheel spin on the exits of the bends. This will be particularly important this weekend with the predicted wet conditions.

The curved straight running from turn 12 past the pits and to the first corner also needs good acceleration, particularly as it sees the track go sharply uphill, with an elevation change just shy of 40m — just as you can really feel it when walking back from the grid, the engines will be straining on the edge of their power.

However the main story about Interlagos is the overall altitude of the circuit. The RS27 could produce around 8% less power than at a sea-level race so for these reasons we generally use engines with a higher mileage on their third race as power sensitivity is not so critical.

There are however some benefits to being at such high altitude; fuel consumption is a lot lower than sea level races and the drag reduces since the air the cars are ‘carving’ through is thinner. This means that you will see cars running what looks like a high downforce setting, but the downforce generated will only be equivalent to a medium wing level.

It’s not an easy one to finish the season on as there are a number of challenges we need to consider, but we feel ready for it and well prepared.

Renault Sport
